IEC 60068-2-30 Standard Walk-in Test Chamber for Temperature, Humidity, and Altitude Simulation

Brand Name:	Envsin
Model Number:	ETZ
MOQ:	1
Price:	$300,000.00 - $500,000.00/ Set

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Walk-in Temperature Test Chamber

Warranty:

1 Year

Standard:

IEC 60068-3-5

Application:

Widely Used

Power:

Electronic

Power Supply:

AC380V±10% , 50HZ, 3/N/PE

Customized Support:

OEM, ODM

Humid. Range:

15%RH~95%RH(ETZ, ETCZ Series)

Highlight:

Envsin walk in environmental chamber

IEC 60068-3-5 walk in environmental chamber

Envsin stability chamber temperature and humidity

Product Description

Walk-in Temperature and ClimateTest Chambers Overview

This test chamber is suitable for high temperature, low temperature and hot-humid or temperature and humidity cycling test of the whole units, parts and materials.

Features

Ø Globally advanced modular design	Ø Special anti-condensation function to protect specimens during climate testing.
Ø 7'' colour touch screen display and 32bit control system	Ø Intelligent and high-performance servo refrigerating control technology: energy saving and rapid heating/cooling rate
Ø Optional App mobility management	Ø Automatic water supply with ultrapure filter devices
Ø Customer-friendly design: observation window with a reality visualization for real-time monitoring	Ø Automatic reminder of equipment maintenance plans and software of recording malfunction
Ø Long defrosting cycles:over 700h's running before defrosting	Ø Unique operation mode: make testing area's temperature back to room temperature after tests are finished
Ø 4 load power outlets for specimens with programmable control for protection	Ø Unique design: no-need defrosting during long period operation in low temperature
Ø Combined seamless welding technology for permanent anti-deformation building	Ø Optional remote-assist service function and teaching CDs
Ø Optional network video monitoring and data synchronization
Ø Special air circulation system inside ensures testing accuracy

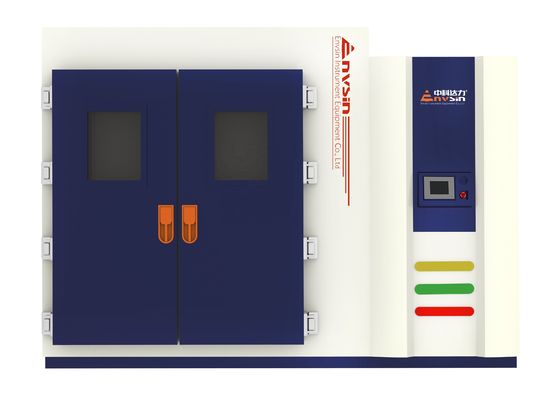

IEC 60068-2-30 Standard Walk-in Test Chamber for Temperature, Humidity, and Altitude Simulation 1

Specifications

Temperature Chambers	ETZ8/4010	ETZ17/4010	ETZ28/4010
Climate Chambers	ECZ8/010	ECZ17/010	ECZ28/010
Temperature Climate Cycling Chambers	ETCZ8/4010	ETCZ17/4010	ETCZ28/4010
Test Space Volume (m3)	8	17	28
Test Space Dimension (mm)	2000W2000D2056H	2250W2500D3032H	2250W2500D5000H
External Dimension (mm)	2240W2240D3800H	2490W2740D4900H	2490W2740D6860H
Floor Load (N/m2)	30000
Temperature Range (℃) (No Load)	ETC series:-60,-40/+80,+100,+150,+180 optional
	ECZ Series: 0/+80,+100 optional
	ETC Series: -60,-40/+80,+100,+150 optional
Humid. Range( %RH)	15~95(ETZ, ETCZ Series)
Dewpoint Temp. Range (℃)	+4~+59,+4~+95

Heating/Cooling Rate (IEC60068-3-5)
LEVEL 1(K/MIN)	4.5	4.5	2.7	2.7	1.7	1.7
LEVEL 2(K/MIN)	5.5	5.5	3.2	3.2	2.0	2.0
Temperature. Constancy (K)	±0.1~ ±0.5 ( IEC60068-3-5)
Temperature. Homogeneity (K)	±0.5 ~ ±3.0 ( IEC60068-3-5)
Humid. Constancy Entry (%RH)	±1.0 ~ ±5.0 ( IEC60068-3-5) (ECZ, ETCZ Series)
Door Dimension Power (mm)	900W1900H(Single Door), 2000W2000H (Double Door)
Power	AC380V±10%,50HZ,3/N/PE

Options	Standard Version
☆ Independent sensors for specimen protection (NE60519-2.1993)	☆ 1 Entry port Ø 100mm
☆ Spare parts package	☆ 1 Silicon stopper for entry port
☆ E-management and cyber-software	☆ Automatic water supply
☆ Video monitor system	☆ Water tank with 20L
☆ APP for mobility management	☆ Water filter
☆ 1 Entry port Ø 50mm
☆ Nitrogen gas auxiliary device
☆ Drier filter for compressing air
☆ Ultrasonic Humidifier
☆ Water-Cooled unit

Operation System Display

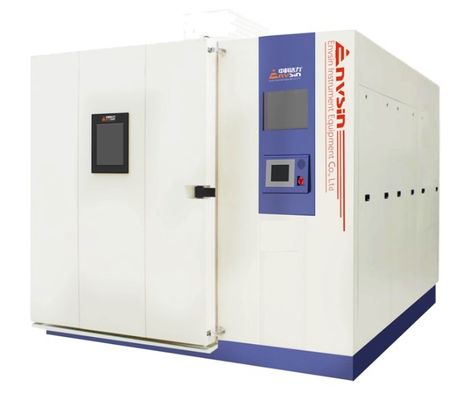

IEC 60068-2-30 Standard Walk-in Test Chamber for Temperature, Humidity, and Altitude Simulation 2

Application

It is applied to pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity
and the electrical products etc; The test Data result which is very useful for scientific research, product development and quality control sector to help them produce high quality anlysis report

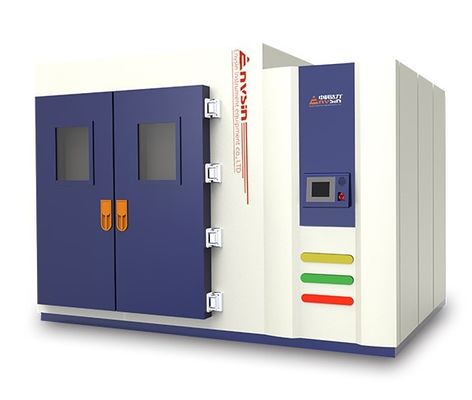

IEC 60068-2-30 Standard Walk-in Test Chamber for Temperature, Humidity, and Altitude Simulation 3
