ISO14001 380V Environmental Test Chamber Humidity Temperature

Name: ISO14001 380V Environmental Test Chamber Humidity Temperature
Brand: Envsin
SKU: EDE4
Price: 120 USD
Availability: InStock
Rating: 4.6 (165 reviews)

Minimum Order Quantity :	1	Price :	$120,000.00 >=1 Sets
Delivery Time :	35	Payment Terms :	T/T, Western Union

Place of Origin:	China	Brand Name:	Envsin
Certification:	CE	Model Number:	EDE4

Detail Information
Product Name:	Intelligent Tempreature Tracking Test Chamber	Dimension:	156020002750mm
Application:	Widely Used	Warranty:	1 Year
Power:	Electronic	Power Supply:	AC380V 50HZ
Temperature Range:	-40℃/-70℃~150℃	Standard:	ISO14001
High Light:	380V environmental test chamber , ISO14001 environmental test chamber , 380V climate chamber humidity temperature

Product Description

Industrial Intelligent Temperature Tracking Screening Test Chamber Overview

For industrial equipment production line operation batch, full inspection of industrial products, semi-finished products, devices and other products, intelligent central control system with special fixtures to achieve automatic feeding , intelligent ESS operation, to achieve full test product monitoring multiple temperatures test platform and equipment for intelligent intercommunication between the intelligent terminal of the chamber and the production line, quality and warehouse management and control center.

Features

☆ Triad control system: AGV robot, center control unit and automatic testing chamber	☆ Specillzed design of anti-condensation for specimens during climate testing to avoid misjudgment and improve testing accuracy
☆ Automatic door and automatic charge for specimens	☆ Optonal APP mobility management
☆ Automatic transmission design for feeding specimens	☆ Automatic water supply with Ultrapure filter devices water shortage reminder function
☆ Optional manual, semi-automatic and automatic operation models	☆ Intelligent and independent protection design for overload, overheat, powersupply abnormity, overvoltage, component malfunction monitoring
☆ Up to 20℃ min temperature change rate for homogeneous temperature linear changing	☆ Customer-friendly software functions: intelligent power-recovery restoration, autoconnect on memory and data synchronization
☆ Dry air blowing system prevent specimen's surfaces from dewing in rapid temperature change	☆ Intelligent and high-performance servo refrigerating control technology: energy saving and rapid heating/cooling rate
☆ Fashionable desig of modular construction	☆ Optional network video monitoring and data synchronization
☆ 7" colour touch screen display and 32 bit control system; interfce Ethernet/USB	☆ Automatic reminder of equipment maintenance plans and software of recording malfunction
☆ 4 Load power outlets for specimens with programmable control for protection	☆ Optional remote-assist service function and teaching CDs
☆ Design with independent sensors to prevent specimens from damages caused by dewing, overheat, breezeless and smog

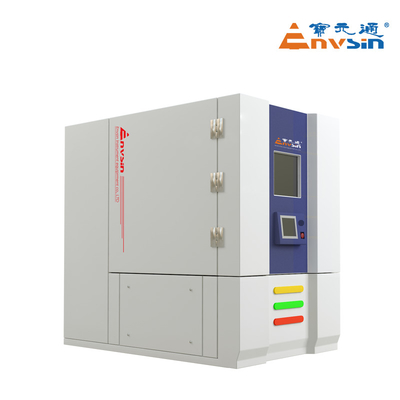

ISO14001 380V Environmental Test Chamber Humidity Temperature 1

Specifications

Model	EDE/EHE	EDE/EHE	EDE/EHE	EDE/EHE	EDE/EHE	EDE/EHE
	4080-5	7080-5	4180-5	7180-5	4360-5	7360-5
	4080-10	7080-10	4180-10	7180-10	4360-10	7360-10
	4080-15	7080-15	4180-15	7180-15	4360-15	7360-15
Test Space Volume (L)	775		1800		3550
Temp.Chambers Parameters:
Temp. Range ( ℃ )	-40/+150	-70/+150	-40/+150	-70/+150	-40/+150	-70/+150
Temp.Rapid Change Rang (℃)	-20/+150	-40/+150	-20/+150	-40/+150	-20/+150	-40/+150
Temp.Rapid Change Rate (℃/min)	5, 10, 15, 20 (No Load)
Temp. Accuracy (℃)	Constancy : ±0.1 ±0.8 ; Homogeneity: ±0.5 ±2.0 ((No Load)
EHE Series Climate Chambers Parameters:
Temp. Range (℃)	10 ~ 95
Humid. Range (%RH)	15~98
Humid. Constancy (%RH)	±1.0 ±3.0 (No Load)
Temp. Accuracy (℃)	Constancy : ±0.1~±0.8, Homogeneity: ±0.5 ±2.0 ((No Load)
Test Space Dimension (mm)	660W×660D×1778H		890W×1068D×1905H		1220W×1524D×1905H
External Dimension (mm)	1560W×2000D×2750H		1790W×2400D×2850H		3950W×1980D×3000H
Cooling Methods	Air-Cooled/Water-Cooled
Power	AC380V±10%,50HZ,3/N/PE

Options	Standard Version
☆ Necessary test tools	☆ Independent power supply units for specimens
☆ Independent sensors for specimen protection (NE60519-2.1993)	☆ 1 Entry port Φ100mm or RJ45 interface
☆ 1 Entry port Φ100mm
☆ Nitrogen gas auxiliary device
☆ Spare parts package
☆ E-management and cyber-software

Operation System Display

Application

It is applied to pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity
and the electrical products etc; The test Data result which is very useful for scientific research, product development and
quality control sector to help them produce high quality anlysis report

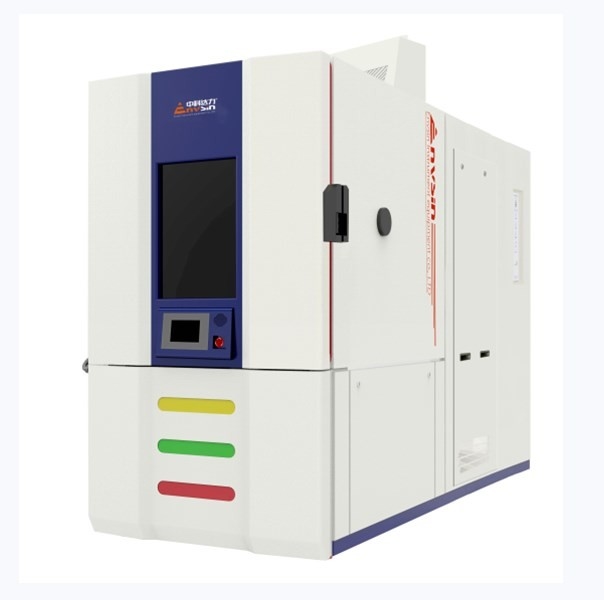

ISO14001 380V Environmental Test Chamber Humidity Temperature 3
