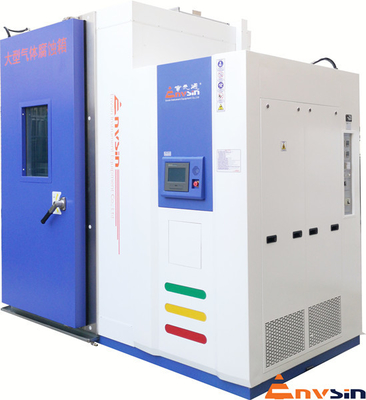

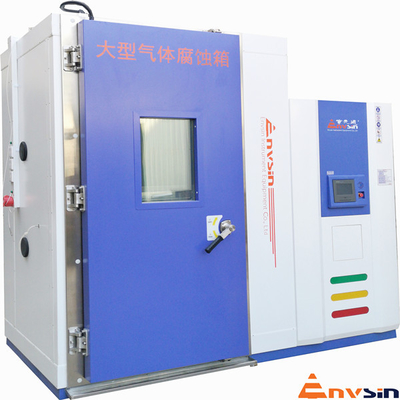

Stand Type Gas Corrosion Test Chamber with H2S SO2 NO2 CI2 Function

Product Details:
Place of Origin: China
Brand Name: Envsin
Certification: CE
Model Number: EQF2330
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD
Packaging Details: Well packed in strong wooden case suitable for all types of long distance shipment
Delivery Time: 45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 35 per month

Detail Information

Material: Stainless Steel Color: Blue Or White
Packing: Strong Wooden Package Certification: CE
Key Word: Gas Corrosion Test Chamber After Sale: 1 Year
High Light:

CE Gas Test Chamber


H2S Gas Test Chamber


CE so2 test chamber

Product Description

Stand Type Gas Corrosion Test Chamber with H2S SO2 NO2 CI2 Function


SO2 H2S Gas Corrosion Test Chamber is widely used in automobile, aerospace, electronics, paintings, battery, navigation industry, for testing the corrosion resistance and service life of the product in a single or mixed corrosion gas environment by simulating accelerated corrosion.


Stand Type Type gas corrosion test chamber can be used to test the electroplating protective layer of electrical and electronic products, electroplating products and various gold and silver products, especially for assessing the corrosive gas resistance ability of the protective layer of material contact parts and connecting parts, and the process quality comparison of similar protective layer.
The gas corrosion test chamber  can meet the hydrogen sulfide, sulfur dioxide, chlorine gas, nitrogen dioxide test and other environmental test results; According to the requirements of the test, the accelerated corrosion of the material or product is carried out to test the damage degree of the material or product in a certain time range, so as to assess the corrosion resistance of the material and its protective layer.
Gas Corrosion Test Chamber Technical Parameters (Product Model:EQF2330)
Temperature test
Temperature range:20℃~+45℃
1. Test in accordance with GB/T2423 and IEC60068
under empty chamber condition (except indicated).
2. The test data of the water-cooled
test chamber are under the conditions that the water temperature is less than 28, the water pressure is between 0.3Mpa and 0.6Mpa, and the water pressure difference between inlet and outlet is more than 0.2Mpa.
Temperature uniformity:≤2.0℃
Temperature deviation:≤±2.0℃
Temperature fluctuation:≤±0.5℃
Temperature rate:≥1℃/min
Temperature and humidity climatic test

Humidity temperature control range:20℃~+50℃

Humidity range:50%RH~85%RH

Humidity uniformity:±5.0%RH
Humidity deviation: +2.0%~3%RH(>75%RH)±5%R.H(≤75%RH)
Humidity fluctuation:±5.0%RH
Gas concentration 5ppb~30ppm
The deviation of gas concentration in the chamber shall not exceed 10% of the set concentration,Concentration uniformity deviation of 10%
The empty chamber operation request meets the IEC60068-2-60 standard
Gas concentration measurement


By calculating the volume ratio and then through the mass flowmeter measurement

On load capacity
500W,The temperature can be stable, the chamber body is not deformed
Working noise ≤70dB (measured at 1 meter away from the test chamber)
Wind speed
Gas flowmeter H2S,SO2,NO2,CI2


GB/T 2423.1-2001 / (IEC60068-2-1:2007) Test A: Low temperature test method

GB/T 2423.2-2001 / (IEC60068-2-2:2007) Test B: High temperature test method


GB/T 2423.3-2006 / (IEC60068-2-78:2007) Test Cab: Constant humidity and heat test
GB/T 2423.4-2008 / (IEC60068-2-30:2005) Test Db: alternating humidity and heat test
GJB 150.3-1986 / GJB 150.3A-2009 High-temperature test
GJB 150.4-1986 / GJB 150.4A-2009 Low temperature test
GJB 150.9-1986 / GJB 150.9A-2009 Thermal-humidity test


IEC60068-2-60 Test Method KE: Man-made low concentration pollution gas corrosion test

GB/T2423.51-2000 Environmental testing of electrical and electronic products Test KE: Flow mixed gas corrosion test
