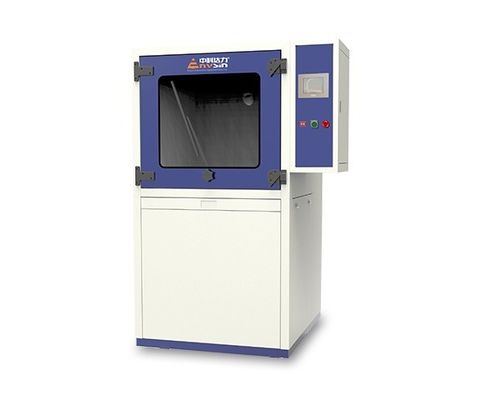

Multifunctional 800L ESS Chamber , Blowing Sand Test Chamber High Precision

Name: Multifunctional 800L ESS Chamber , Blowing Sand Test Chamber High Precision
Brand: Envsin
SKU: EFS
Price: 4500 USD
Availability: InStock
Rating: 4.9 (145 reviews)

Minimum Order Quantity :	1 set	Price :	$4500 >=1 Set
Delivery Time :	35 work days	Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	30 sets per month

Place of Origin:	Guangdong	Brand Name:	Envsin
Certification:	ISO CE	Model Number:	EFS

Detail Information
Temperature Range(℃):	RT+ 20~80	Humidity Range:	10%~30%RH
Warranty:	12 Months	Power:	AC230V±10% 50Hz 1/N/PE
Dust Concentration:	10.6±7 G/m³	Certification:	ISO, CE
Model:	500,800,1500 And Other Customized	Standards:	IEC60529:2001
Colour:	White /Blue
High Light:	multifunctional ess chamber , 800L ess chamber , 800L blowing sand test chamber

Product Description

Sand and Dust Test Chamber with Precision Control by Simulating Sandstorm Weather

The Sand Dust Test Chamber is suitable for detecting the sealing performance of the product's shell,mainly to simulate the damage caused by the sandstorm weather to locks,automobile and motorcycle parts,seals,power meters and other products.It is applied to pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products etc; The test Data result which is very useful for scientific research, product development and quality control sector to help them produce high quality anlysis report

Our Service

• Be able to provide a complete testing solution (customization)

• Preferential supplier of Apple and Cisco in China

• Perfect systematic pre-sale and after-sale technical support

Features

• Accept customized design requirements.

• Properties and applications meet the military and industry standards.

• 7'' touch screen and intelligent software for easy and comfortable operation.

• Advanced rotary blowing design to prevent dust from back flow.

• Automatic control the amount of dust/sand and wind to meet the tests standards.

• Dynamic adjustment temperature control system: rapid and stable control of test chambers' temperature.

• Independent control of temperature and humidity ensures a stable testing consition. • Fashionable design of modular construction.

• Observation window in testing space with a dust wiper for real-time monitoring.
• Intelligent and independent protection design for overload, overheat, power supply abnormity, overvoltage, component malfunction monitoring.

• Optional remote assist service function and teaching CDs.

Products Performance

Model	ESC500	ESC800	ESC1000	ESC1500
Sample holder Dimension (mm)	785×785	790×990	980×980	980×1480
Test Space Dimension (mm)	800W×800D×800H	800W×1000D×1000H	1000W×1000D×1000H	1000W×1500D×1000H
Temp. Range (C°)	RT +20~+80 adjustable
Selective Dustproof	IP5X (Dustproof Test, increase or no negative pressure) IP6X (Seal Test, increase negative pressure)
Standards	IEC60529:2001

Model	ESC Series
Temp. Range (℃)	RT+20 ~ +80 Adjustable
Humid. Range (%RH)	10~30
Blowing methods	Up and Down, Gyratory Cycle
Time control	0~99h59m59s, adjustable
Dust Blowing Test	GJB-150.12-2009
Dust Concentration (g/m³ )	10.6±7
Speed of Dust Blowing (m/s)	1.5~8.9
Dust Composition	97%~99% SiO2
Sand Blowing Test	GJB-150.12-2009
Sand Concentration (g/m³)	2.2g±0.5; 1.1g±0.3; 0.18
Speed of Sand Blowing (m/s)	18~30
Sand Diameter (um)	150~850
Dust-Falling Test	GJB-150.12-2009
Dust-Falling Concentration (g/m³ )	0.1~10.6±7
Dust Particle Diameter (um)	20~150
External Dimension (mm)	1300W×1300D×1300H
Power	AC230V±10%, 50Hz, 1/N/PE

Options Accessories

• Independent sensors for protection (NE60519-2.1993)

• Entry ports for testing space

• Power outlets for specimens

• Spare parts package

• E-management and cyber-software

• APP for mobility management

• Sand testing medium

Quality Control

Standard Version

• 1 Stainless steel shelve

• 1 Screen sieve
