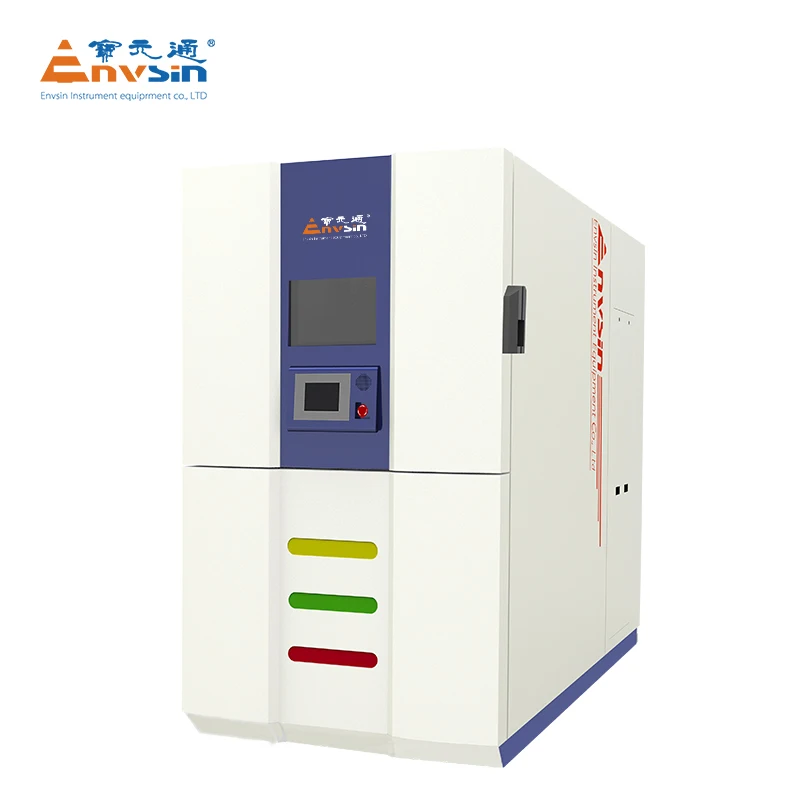

Environmental Simulation 2 Zones Thermal Shock Test Chambers
Our service:
»Be able to provide a complete testing solution (customization)
»Patented and eye-catching industrial design
»Preferential vendor of Apple and Cisco in China
»Perfect systematic pre-sale and after-sale technical support
Features
• Customer friendly design:observation window with a reality visualization.(Patented)
• 7'' colour touch screen display and 32 bit control system; interface Ethernet/USB.
• 4 load power outlets for specimens with programmable control for protection.
• Design with independent sensors to prevent specimens from damages caused by dewing, overheat,breezeless and smog.
• Optional network video monitoring and data synchronization.
• Optional APP mobility management.
• Environment-friendly refrigerating control technology:
energy saving and rapid heating/cooling rate.
• Unique operation mode:make testing area's temperature
back to room temperature after tests are finished.
• Automatic reminder of equipment maintenance plans and
software of recording malfunction.
• Optional remote-assist service function and teaching CDs.
Application
Product Paramenters
Model
ET450S2
ET4100S2
ET4200S2
ET550S2
ET5100S2
ET5200S2
ET650S2
ET6100S2
ET6200S2
Test Space Volume(L)
50
100
200
Test Zones
2
Hot Chamber Temp.Range(℃)
+50/+200
Cold Chamber Temp.Range(℃)
-80/+70
-80/+70
-75/+70
Temp. Constancy(℃)
±0.3-±1.0
Temp.Homogeneity(℃)
±0.5-±2.0
±0.5-±2.0
±1.0-±2.0
Recovery Time(min)
<1(on Air Outlet)
<5(on Air Outlet)
<5(on Air Outlet)
Test Space Dimension(mm)
400W*400D*310H
500W*500D*400H
600W*550D*600H
External Dimension(mm)
900W*2300D*2160H
1000W*2400D*2250H
1200W*2500D*2200H
Temp. Range(℃)
-40/+150
-40/+150
-40/+150
-55/+150
-55/+150
-55/+150
-65/+150
-65/+150
-65/+150
Max. Specimens Weight (kg)
15
30
50
Cooling Methods
Air-Cooled
Water-Cooled(IEC 60068-3-5)
Power
AC380V±10%,50HZ,3/N/PE
Compliant with International Standards:
GB/T2423.22
MIL STD 202F (Method 107G)
IEC 60 068-2-14
Test Na BS 2011
DIN 40046,Test Na
JESD22-A101-A
Options Accessories
• Independent sensors for protection (NE60519-2.1993)
• 1 Entry port Φ100mm
• Nitrogen gas auxiliary device
• Spare parts package
• E-management and cyber-software
• Video monitor system
• APP for mobility management
