| Brand Name: | Envsin |
| Model Number: | CH-200 |
| MOQ: | 1 |
| Price: | To Be Negotiated |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 25 per month |

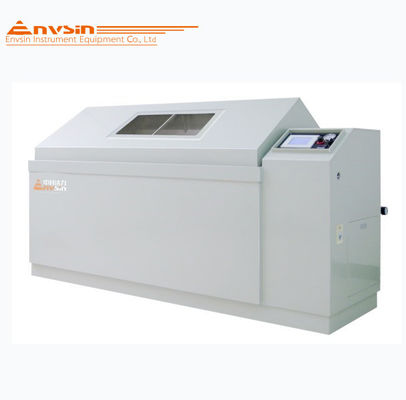

Equipped With Monitoring Over Temperature Protection Spray Chamber Accelerated Spray Chamber
Spray Chamber Corrosion test is to test the salt corrosion resistance of materials and the protective coatings. To test the manufacturing technology for components, electronics, metal materials and other industry products, and the ability of corrosive resistance.
| Spray Chamber ESE/Combination | ECSE-270 | ECSE-408 | ECSE-800 | ECSE-1200 |
| Type ECSE Test Space Volume (L) | 270L | 408L | 800L | 1200L |
| Inner Dimentsion (W×D×H)mm | 900×600×500 | 1200×800×500 | 1600×1000×500 | 2000×1000×600 |
| External Dimension (W×D×H)mm | 2450×1553×1430 | 2830×1560×1830 | 2830×1560×1830 | 3630×1560×1930 |
| Salt water tank volume(L) | 25L | 40L | 40L | 60L |
| Salt Fog/Condensate Test |
Temp. Range (℃) :RT+5℃～50℃ Humid. Range :Relative humidity/Saturated Humidity Saturated Air Barrel Temp Range:RT+5℃～65℃ Salt Spray Sedimentation Rate:1～2ml·80cm²·h /Others are adjustable |
|||
| Climate Testing |
Temp. Range :10℃～80℃ Temp. Deviation:±2.0℃ Temp. Fluctuation:±0.5℃ Temp. Uniformity:±1.0℃ Humid. Range(℃):20%RH～98%RH Humid. Deviation:+2.0%RH/-3.0%RH Humid. Fluctuation:±3.0%RH Humid.Uniformity:±2.0%RH |
|||
| Control Interface | LCD Touch Screen Digital Control , LED Digital Display control(Touch Screen Adjustable) | |||
| Power | AC380V±10%,50HZ,3/N/PE, AC230V±10%,50HZ,1/N/PE | |||
| Test Standards | Reference GB,ISO,ASTM,BS,DIN,JIS, etc National or International Standards | |||
| Customized Function And Model | Satisfy Diverse Customers' Needs, Can Provide Special Function And Customized Model | |||
| ESE-X(X stands for volume) | ||||
| Type ESE Test Space Volume (L) | 108,270,408,600,800,1200 | |||
| Inner Dimentsion (W×D×H)mm | Reference ECSE Series | |||
| External Dimension (W×D×H)mm | The Size Is Smaller Than ECSE Series | |||
| Salt water tank volume(L) | Reference ECSE Series | |||
| Standard Version | Option Version |
| C-BAR | Air Compressor Unit |
| V Shaped Speciman Rack | Reagent Grade Analysis Pure Sodium Chloride(NaCl) |
| Measuring Cylinder | Reagent Grade Copper Chloride(CuCl2HO) |
| Reagent Grade Analysis Pure Sodium Chloride(NaCl)500g*2 | Reagent Crade Glacial Acetic Acid(CH3COOH) |
