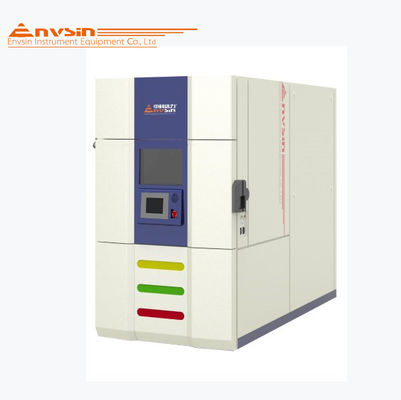

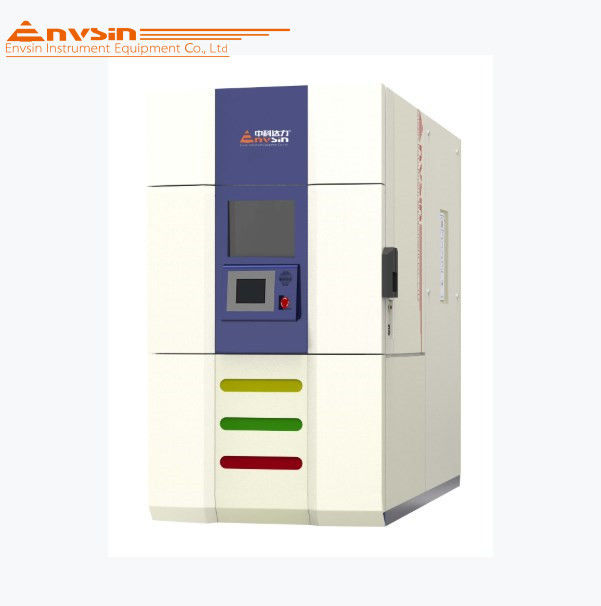

Environment-friendly Refrigerating Control Thermal Chamber With 3 Zones Thermal Chamber

Product Details:
Place of Origin: China
Brand Name: Envsin
Certification: CE
Model Number: ET4100S3
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: To be negotiated
Packaging Details: Strong wooden case suitable for all types of long distance shipment
Delivery Time: 30-35 business days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 per month

Detail Information

Product Name: Thermal Chamber Display: 7'' Color Touch Screen Display
Defrosting Cycles: Over 700h's Running Before Defrosting Max. Specimens Weight (kg): Water-Cooled(Compliant With IEC 60068-3-5)
Test Zones: 3 After Sale: 1 Year
High Light:

100L Thermal Shock Test Chamber


Envsin Thermal Shock Test Chamber


Envsin constant temperature chamber

Product Description

Environment-friendly Refrigerating Control Thermal Chamber With 3 Zones Thermal Chamber


The thermal chamber is used for testing non-heat dissipation test samples and low heat dissipation test samples. For the test of heat dissipation test samples, the heat dissipation power should not exceed the temperature control cooling capacity of the refrigeration system of the test chamber, otherwise it will affect the temperature conversion speed and capacity of the test chamber. It is recommended that the heat dissipation of the test samples be less than 300W.


Thermal chamber standard:
  • GJB 150.5-1986
  • JIS C 60068-2-14
  • MIL STD 883H
  • JASO D 014 -- 4
  • MIL STD 202G
  • EIA JED-2531A
  • IEC 60068-2-14


Thermal chamber features:
• Fashionable design of modular construction.
• Customer friendly design: observation window with a reality visualization.(Patented)
• 4 load power outlets for specimens with programmable control for protection.
• Specialized design of air circulation system inside ensures testing accuracy.(Patented)
• Long defrosting cycles: over 700h's running before defrosting.
• Optional network video monitoring and data synchronization.
• Optional APP mobility management.

• Optional remote-assist service function and teaching CDs.
Thermal chamber specifications:
Model:Thermal chamber







Test Space Volume (L) 100 200
Hot Chamber Temp. Range(℃) +50/+200 +50/+200
Test Chamber Temp. Range (℃) R.T R.T
Cold Chamber Temp. Range(℃) -70/+70 -75/+70
Temp. Constancy (℃ ) ±0.3-±1.0 ±0.3-±1.0
Temp. Homogeneity (℃) ±0.5-±2.0 ±0.5-±2.0
Recovery Time (min) < 5 (on Air Outlet) < 5 (on Air Outlet)
Test Space Dimension (mm) 500W×575D×350H 650W×585D×450H
External Dimension (mm) 500W×575D×350H 500W×575D×350H

Testing Temperature Range (℃)







Max. Specimens Weight (kg) 20 50
Cooling Methods Water-Cooled (Compliant with IEC 60068-3-5)
Power AC380V±10%, 50HZ, 3/N/PE
Compliant with International Standards:
GJB 150.5-1986 IEC 60068–2–14 EIAJ ED–2531A
MIL–STD–883H JIS C 60068–2–14
MIL–STD–202G JASO D 014–4

Options Accessories

Standard Version

• Independent sensors for specimen protection(NE60519-2.1993)

• 3 Power outlets for specimens

• 1 Entry port Φ100mm

• Left and right entry ports Φ50mm

• Nitrogen gas auxiliary device

• 2 Silicon stoppers for entry ports

• Spare parts package

• 2 Stainless steel shelves

• E-management and cyber-software

• Drier filter for compressing air

• Video monitor system


• APP for mobility management
