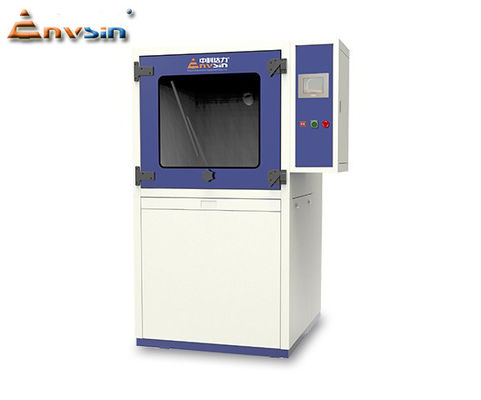

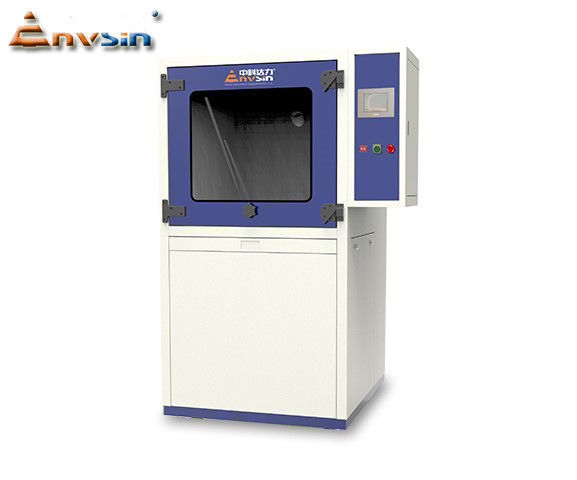

Name: GB4208-2008 Sand And Dust Test Chamber
Brand: Envsin
SKU: ESC
Price: 1 USD
Availability: InStock
Rating: 4.9 (163 reviews)

Detail Information
Chamer Name:	Sand And Dust Test Chamber	Model:	ESC500,ESC800,ESC1500
Standards:	GB4208-2008 / IEC60529:2001	Blowing Methods:	Up And Down, Gyratory Cycle
Dust Composition:	97%~99%SiO2	Colour:	White Blue
High Light:	Envsin Sand And Dust Test Chamber , GB4208-2008 Sand And Dust Test Chamber , GB4208-2008 drive in test chamber

Product Description

high Precision Sand And Dust Test Chamber for scientific research

It is applied to pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products etc; The test Data result which is very useful for scientific research, product development and quality control sector to help them produce high quality anlysis report

Specifications

Model	ESC500	ESC800	ESC1000	ESC1500
Sample holder Dimension(mm)	785×785	790×990	980×980	980×1480
Test Space Dimension(mm)	800W×800D×800H	800W×1000D×1000H	1000W×1000D×1000H	1000W×1500D×1000H
Temp. Range (C°)	RT +20~+80 adjustable
Selective Dustproof	IP5X (Dustproof Test, increase or no negative pressure) ; IP6X (Seal Test, increase negative pressure)
Standards	GB4208-2008 / IEC60529:2001
Power	AC230V ±10%, 50HZ, 3/N/PE
Model	ESC-PRO Series
Temp. Range (℃)	RT+20 ~ +80 Adjustable
Humid. Range (%RH)	10~30
Blowing methods	Up and Down, Gyratory Cycle
Time control	0~99h59m59s, adjustable
Dust Blowing Test	GJB-150.12-2009
Dust Concentration (g/m³ )	10.6±7
Speed of Dust Blowing (m/s)	1.5~8.9
Dust Composition	97%~99%SiO2
Sand Blowing Test	GJB-150.12-2009
Sand Concentration (g/m³)	2.2g±0.5; 1.1g±0.3; 0.18
Speed of Sand Blowing (m/s)	18~30
Sand Diameter (um)	150≤Sand Diameter ≤850
Dust-Falling Test	GJB-150.12-2009
Dust-Falling Concentration (g/m³)	0.1~10.6±7
Dust Particle Diameter (um)	20≤Dust Particle Diameter≤150
External Dimension (mm)	1300W×1300D×1300H
Power	AC230V±10%, 50HZ, 1/N/PE

Options	Standard Version
★ Independent sensors for protection (NE60519-2.1993)	★ 1 Stainless steel shelve
★ Entry ports for testing space	★ 1 Screen sieve
★ Spare parts package
★ E-management and cyber-software
★ Power outlets for specimens
★ APP for mobility management
★ Sand testing medium
★ Dust testing medium
