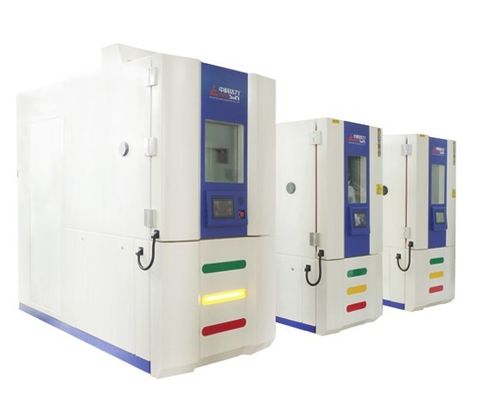

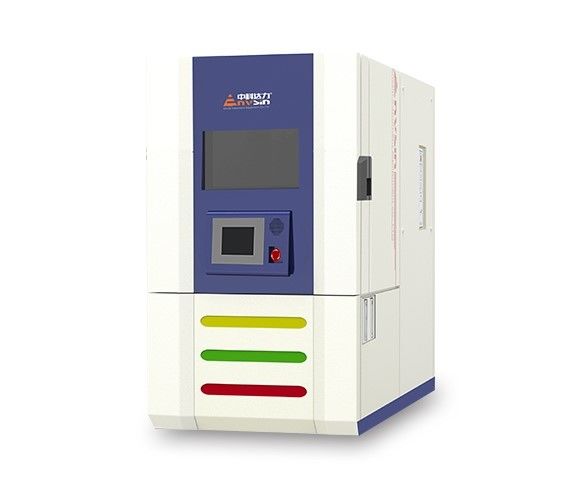

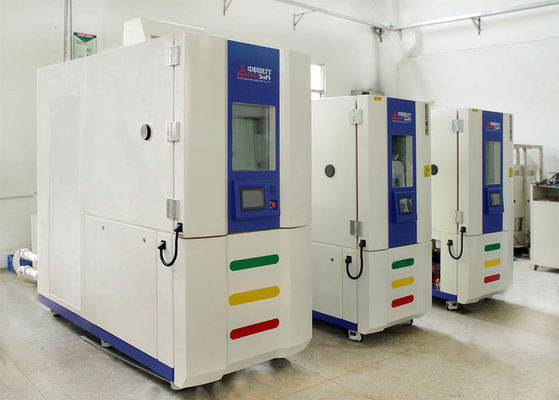

Name: 200L Thermal Shock Test Chamber
Brand: Envsin
SKU: ET
Price: 1 USD
Availability: InStock
Rating: 4.5 (194 reviews)

Detail Information
Name:	Thermal Shock Test Chamber	Usage:	Widely Used
Test Zones:	Two	Test Space Volume:	50L 100L 200L
Temp. Constancy:	±0.3 ℃~±1.0 ℃	Temp. Range:	-65℃ ~ +150
High Light:	200 degree Thermal Shock Test Chamber , 200L Thermal Shock Test Chamber , 200L low temperature chamber

Product Description

Environmental high low temperature Thermal Shock Test Chamber with Two Zones

Application

It is applied to pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products etc; The test Data result which is very useful for scientific research, product development and quality control sector to help them produce high quality anlysis report

Features

★The Chamber is Fashion designed with modular construction	★ Design with independent sensors to prevent specimens from damages caused by dewing, overheat, breezeless and smog
★7'' colour touch screen with 32bit control system	★ Intelligent and top-performance servo refrigerating control technology: energy saving and rapid heating/cooling rate.
★ It can chose App mobility management	★ The network video monitoring and data synchronization is optional
★ The design of observation window with a reality visualization for real-time monitoring	★ Automatic reminder of equipment maintenance plans and software of recording malfunction.
★ Long defrosting cycles:over 700h's running before defrosting	★ Unique operation mode: make testing area's temperature back to room temperature after tests are finished
	★ It can chose remote-assist service function and teaching CDs

200L Thermal Shock Test Chamber 0

Specifications

Model	ET450S2	ET4100S2	ET4200S2
	ET550S2	ET5100S2	ET5200S2
	ET650S2	ET6100S2	ET6200S2
Test Space Volume (L)	50	100	200
Test Zones	2
Hot chamber Temp. Range (℃ )	+50/+200
Cold chamber Temp. Range (℃)	-80/70	-80/70	-75/70
Temp. Constancy (℃ )	±0.3~±1.0
Temp. Homogeneity (℃)	±0.5~±2.0	±0.5~±2.0	±1.0~±2.0
Recovery Time (min)	<1(on Air Outlet)	<5(on Air Outlet)	<5(on Air Outlet)
Test Space Dimension (mm)	400W400D310H	500W500D400H	600W550D600H
External Dimension (mm)	900W2300D2160H	1000W2400D2250H	1200W2500D2200H
Temperature Range(℃)	-40/150	-40/150	-40/150
	-55/150	-55/150	-55/150
	-65/150	-65/150	-65/150
Cooling Methods	Air-Cooled Water-Cooled (IEC 60068-3-5)
Power	AC380V ±10%, 50HZ, 3/N/PE
Compliant with International Standards:
GB/T2423.22		Test Na BS 2011
MIL STD202F (Method 107G)		DIN40046, Test Na
IEC 60068-2-14		JESD22-A101-A

Options	Standard Version
☆ Independent sensors for specimen protection (NE60519-2.1993)	☆ 2Stainless Steel shelves
☆ Spare parts package
☆ E-management and cyber-software
☆ Video monitor system
☆ APP for mobility management
☆ 1 Entry port Φ100mm
☆ Nitrogen gas auxiliary device

200L Thermal Shock Test Chamber 1
