Envsin Temperature Cycling Chamber

Name: Envsin Temperature Cycling Chamber
Brand: Envsin
SKU: ESC
Price: 8000 USD
Availability: InStock
Rating: 4.6 (190 reviews)

Minimum Order Quantity :	1	Price :	$8000 >=1 Set
Delivery Time :	35 days	Payment Terms :	T/T, Western Union, D/A, D/P, L/C
Supply Ability :	30 sets per month

Place of Origin:	China	Brand Name:	Envsin
Certification:	CE	Model Number:	ESC

Detail Information
Chamer Name:	Sand And Dust Test Chamber	Model:	500,800,1500 And Other Customized
Standards:	IEC60529:2001	Blowing Methods:	Up And Down, Gyratory Cycle
Dust Composition:	97%~99% SiO2	Colour:	White /Blue
Power:	AC230V±10%, 50HZ, 1/N/PE	Warranty:	1 Year
Highlight:	230V temperature cycling chamber , Envsin temperature cycling chamber , 230V dust test chamber

Product Description

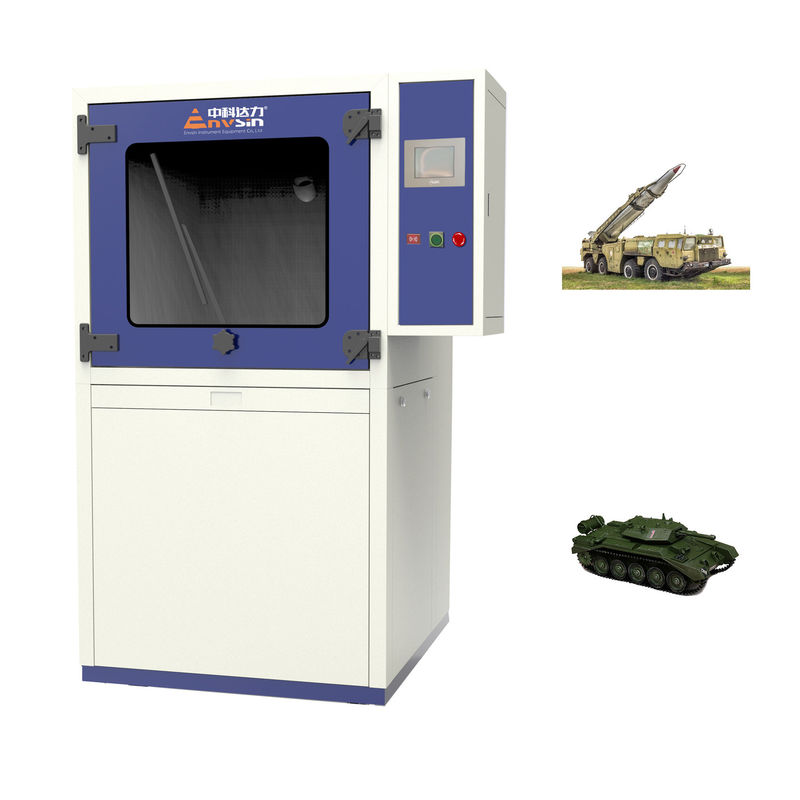

Computer Controlled Sand And Dust Test Chamber
The Sand Dust Test Chamber is suitable for detecting the sealing performance of the product's shell,mainly to simulate the damage caused by the sandstorm weather to locks,automobile and motorcycle parts,seals,power meters and other products.

Our Service

• Be able to provide a complete testing solution (customization)

• Patented and eye-catching industrial design

• Preferential vendor of Apple and Cisco in China

• Perfect systematic pre-sale and after-sale technical support

Envsin Temperature Cycling Chamber 0

Specifications

Model	ESC500	ESC800	ESC1500
Sample holder Dimension(mm)	785×785	790×990	980×1480
Test Space Dimension(mm)	800W×800D×800H	800W×1000D×1000H	1000W×1500D×1000H
Temp. Range (C°)	RT +20~+80 adjustable
Selective Dustproof	IP5X (Dustproof Test, increase or no negative pressure) ; IP6X (Seal Test, increase negative pressure)
Standards	GB4208-2008 / IEC60529:2001
Power	AC230V ±10%, 50HZ, 3/N/PE
Temp. Range (℃)	RT+20 ~ +80 Adjustable
Humid. Range (%RH)	10~30
Blowing methods	Up and Down, Gyratory Cycle
Time control	0~99h59m59s, adjustable
Dust Blowing Test	GJB-150.12-2009
Dust Concentration (g/m³ )	10.6±7
Speed of Dust Blowing (m/s)	1.5~8.9
Dust Composition	97%~99% SiO2
Sand Concentration (g/m³)	2.2g±0.5; 1.1g±0.3; 0.18
Speed of Sand Blowing (m/s)	18~30
Sand Diameter (um)	150≤Sand Diameter ≤850
Dust-Falling Test	GJB-150.12-2009
Dust-Falling Concentration (g/m³)	0.1~10.6±7
Dust Particle Diameter (um)	20≤Dust Particle Diameter≤150
External Dimension (mm)	1300W×1300D×1300H
Power	AC230V±10%, 50HZ, 1/N/PE

Options	Standard Version
★ Independent sensors for protection (NE60519-2.1993)	★ 1 Stainless steel shelve
★ Entry ports for testing space	★ 1 Screen sieve
★ Spare parts package
★ E-management and cyber-software
★ Power outlets for specimens
★ APP for mobility management
★ Sand testing medium
★ Dust testing medium

Application

It is applied to pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products etc; The test Data result which is very useful for scientific research, product development and quality control sector to help them produce high quality anlysis report
