Name: 8m3 Walk In Environmental Test Chamber
Brand: Envsin
SKU: ETZ
Price: 1 USD
Availability: InStock
Rating: 4.9 (171 reviews)

Detail Information
Chamber Name:	ETZ Walk In Environmental Test	Temperature Constancy:	±0.1°C ~ ±0.5°C (k)
Test Space Volume:	8 (m3)	Humid. Range:	15~95 (%RH)
Power Supply:	Electronic	Color:	White Blue
High Light:	8m3 Walk In Environmental Test Chamber , CE Walk In Environmental Test Chamber , 8m3 humidity environmental chamber

Product Description

Simulation Walk In Environmental and Climate Test Chamber With Humidity

Application

It is applied to pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products etc; The test Data result which is very useful for scientific research, product development and quality control sector to help them produce high quality anlysis report

Features

Ø Globally advanced modular design

Ø 7'' colour touch screen display and 32bit control system

Ø Optional App mobility management

Ø Customer-friendly design: observation window with a reality visualization for real-time monitoring

Ø Long defrosting cycles:over 700h's running before defrosting

Ø 4 load power outlets for specimens with programmable control for protection.

Ø Combined seamless welding technology for permanent anti-deformation building

Ø Optional network video monitoring and data synchronization

Specifications

Temperature Chambers	ETZ8/4010	ETZ17/4010	ETZ28/4010
Climate Chambers	ECZ8/010	ECZ17/010	ECZ28/010
Temperature Climate Cycling Chambers	ETCZ8/4010	ETCZ17/4010	ETCZ28/4010
Test Space Volume (m3)	8	17	28
Test Space Dimension (mm)	2000W2000D2056H	2250W2500D3032H	2250W2500D5000H
External Dimension (mm)	2240W2240D3800H	2490W2740D4900H	2490W2740D6860H
Floor Load (N/m2)	30000
	ETC series:-60,-40/+80,+100,+150,+180 optional
Temperature Range (℃) (No Load)	ECZ Series: 0/+80,+100 optional
	ETC Series: -60,-40/+80,+100,+150 optional
Humid. Range( %RH)	15~95(ETZ, ETCZ Series)
Dewpoint Temp. Range (℃)	+4~+59,+4~+95

Heating/Cooling Rate (IEC60068-3-5)
LEVEL 1(K/MIN)
4.5	4.5	3.7	3.7	2.7	2.7	2.1	2.1	1.7	1.7
LEVEL 2(K/MIN)
5.5	5.5	4.5	4.5	3.2	3.2	2.6	2.6	2	2

Temperature. Constancy (K)	±0.1~ ±0.5 ( IEC60068-3-5)
Temperature. Homogeneity (K)	±0.5 ~ ±3.0 ( IEC60068-3-5)
Humid. Constancy Entry (%RH)	±1.0 ~ ±5.0 ( IEC60068-3-5) (ECZ, ETCZ Series)
Door Dimension Power (mm)	900W1900H(Single Door), 2000W2000H (Double Door)
Power	AC380V±10%,50HZ,3/N/PE

Options	Standard Version
☆ Independent sensors for specimen protection (NE60519-2.1993)	☆ 1 Entry port Ø 100mm
☆ Spare parts package	☆ 1 Silicon stopper for entry port
☆ E-management and cyber-software	☆ Automatic water supply
☆ Video monitor system	☆ Water tank with 20L
☆ APP for mobility management	☆ Water filter
☆ 1 Entry port Ø 50mm
☆ Nitrogen gas auxiliary device

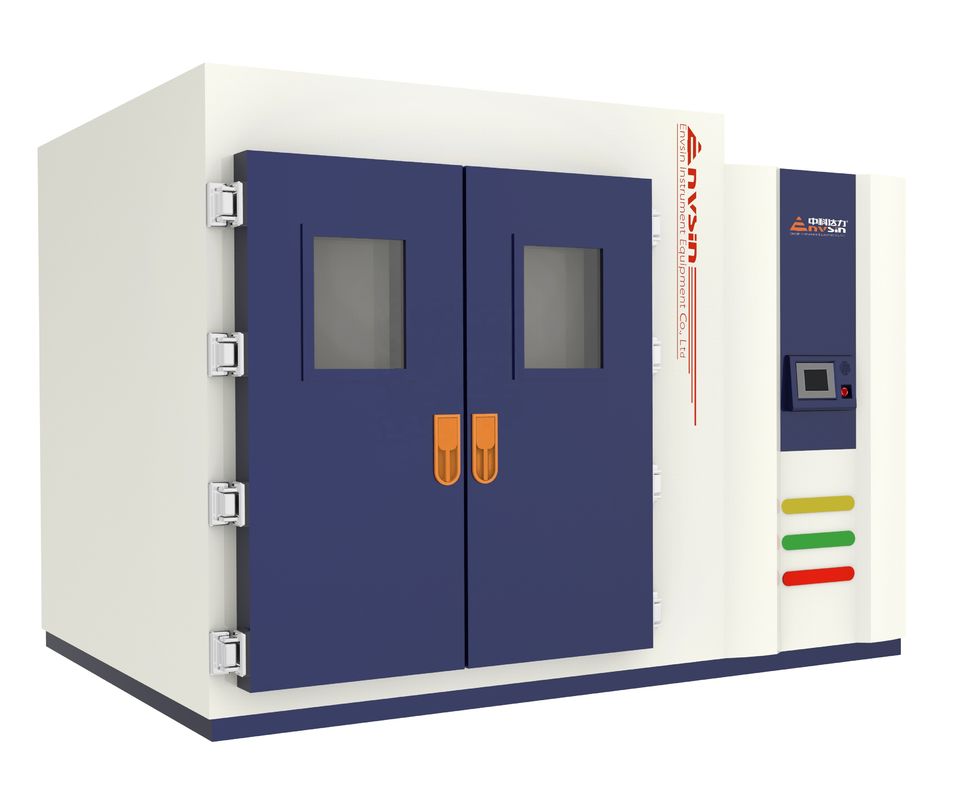

8m3 Walk In Environmental Test Chamber 1
