Envsin 300L Laboratory Thermal Cycle Chamber With Video Monitoring

Name: Envsin 300L Laboratory Thermal Cycle Chamber With Video Monitoring
Brand: Envsin
SKU: ET6300S3
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (148 reviews)

Minimum Order Quantity :	1	Price :	To be negotiated
Packaging Details :	Strong wooden case suitable for all types of long distance shipment	Delivery Time :	30-35 business days
Payment Terms :	L/C, T/T, Western Union	Supply Ability :	25 per month

Place of Origin:	China	Brand Name:	Envsin
Certification:	CE	Model Number:	ET6300S3

Detail Information
Product Name:	Thermal Shock Test Chamber	Volume:	300L
Internal Size:	700710600mm	External Size:	1200mm2550mm2320mm
Cooling Method:	Water-cooled	Power:	AC380V±10%,50Hz±1
High Light:	Envsin thermal cycle chamber , 300L thermal cycle chamber , 300l temperatur

Product Description

Optional Network Video Monitoring Control Thermal Shock Test Chamber With 3 Zones

The Thermal Shock Test Chamber is used for testing non-heat dissipation test samples and low heat dissipation test samples. For the test of heat dissipation test samples, the heat dissipation power should not exceed the temperature control cooling capacity of the refrigeration system of the Thermal Shock Test Chamber, otherwise it will affect the temperature conversion speed and capacity of the Thermal Shock Test Chamber. It is recommended that the heat dissipation of the test samples be less than 300W.

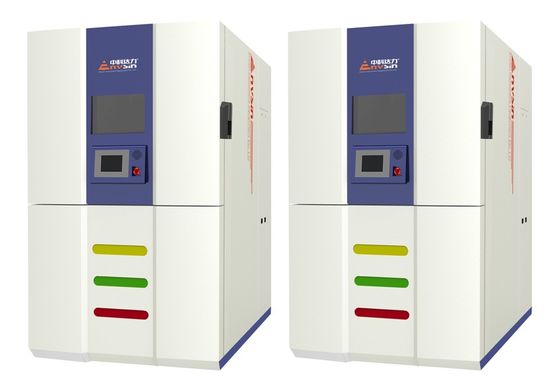

Envsin 300L Laboratory Thermal Cycle Chamber With Video Monitoring 0

Specifications:

Model:Thermal Shock Test Chamber	ET4100S3 ET5100S3 ET6100S3	ET4200S3 ET5200S3 ET6200S3	ET4300S3 ET5300S3 ET6300S3
Test Space Volume (L)	100	200	300
Test Zones	3	3	3
Hot Chamber Temp. Range(℃)	+50/+200	+50/+200	+50/+200
Test Chamber Temp. Range (℃)	R.T	R.T	R.T
Cold Chamber Temp. Range(℃)	-70/+70	-75/+70	75/+70
Temp. Constancy (℃ )	±0.3-±1.0	±0.3-±1.0	±0.3-±1.0
Temp. Homogeneity (℃)	±0.5-±2.0	±0.5-±2.0	±1.0-±2.0
Recovery Time (min)	< 5 (on Air Outlet)	< 5 (on Air Outlet)	< 5 (on Air Outlet)
Test Space Dimension (mm)	500W×575D×350H	650W×585D×450H	700W×710D×600H
External Dimension (mm)	500W×575D×350H	500W×575D×350H	500W×575D×350H
Testing Temperature Range (℃)	-55/+150 -55/+150 -65/+150	-55/+150 -55/+150 -65/+150	-55/+150 -55/+150 -65/+150
Max. Specimens Weight (kg)	20	50	50
Cooling Methods	Water-Cooled (Compliant with IEC 60068-3-5)
Power	AC380V±10%, 50HZ, 3/N/PE
Compliant with International Standards:
GJB 150.5-1986 IEC 60068–2–14 EIAJ ED–2531A MIL–STD–883H JIS C 60068–2–14 MIL–STD–202G JASO D 014–4

Thermal Shock Test Chamber Options Accessories	Thermal Shock Test Chamber Standard Version
• Independent sensors for specimen protection(NE60519-2.1993)	• 3 Power outlets for specimens
• 1 Entry port Φ100mm	• Left and right entry ports Φ50mm
• Nitrogen gas auxiliary device	• 2 Silicon stoppers for entry ports
• Spare parts package	• 2 Stainless steel shelves
• E-management and cyber-software	• Drier filter for compressing air
• Video monitor system
• APP for mobility management
