220V Accelerated Aging Test Chamber

Product Details:
Place of Origin: China
Brand Name: Envsin
Certification: CE
Model Number: EWG
Payment & Shipping Terms:
Minimum Order Quantity: 1
Payment Terms: Western Union, T/T

Detail Information

Name: Oven Aging Test Chamber Customized Support: OEM, ODM
Usage: Widely Used Power Supply: AC220V 50HZ
Test Space Volume: 270L ,1000L Heat Up Time (min): 50 (RT→+200℃) , 90 (RT→+300℃)
High Light:

1000L Accelerated Aging Test Chamber


220V Accelerated Aging Test Chamber


220V Solar Simulation Chamber

Product Description

Oven Accelerated Aging Test Chamber For Cosmetics and Food

The high temperature aging test chamber is a high-performance electronic product such as computer, terminal equipment, vehicle electronics,etc. to simulate high temperature and other harsh environment testing machine, is to improve the product  the important test machine for stability and reliability is also an important productiong process for factories to improve product quality and competitiveness. equipment is widely used in power electronics, commuications and other sectors.

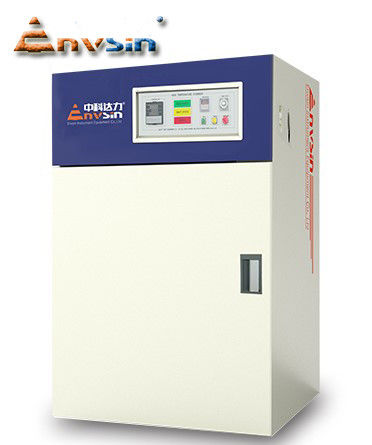

220V Accelerated Aging Test Chamber 0
Accept customized design requirements. Special chamber-body structure design for high-temperature environment with heat insulation
PID algorithm automatically controls chamber's temperature. Design with Independent sensors to prevent specimens from damages caused by dewing, overheat,breezeless and smog.
Optional remote-assist service function and teaching CDs. Unique operation mode:make testing area's temperature back to room temperature after tests are finished.
Fashionable design of modular construction. Auto exhaust function against overheat
Multiple independent sensors units providing multiple protections during tests Intelligent and independent protection design for overload, overheat,powersupply abnormity,overvoltage,component


Aging Chambers EWG2003 EWG3003 EWG2006 EWG3006
Test Space Volume (L) 270 1000
Temp. Range (℃) R. T+20~200 R. T+20~300 R. T+20~200 R. T+20~300
Temp. Constancy (℃) ±0. 1~±0. 8
Temp. Homogeneity (℃) ±0. 5~±2. 0 (RT+20℃~+200℃) , ±1. 5~±3. 5 (200℃~+300℃)
Temp. Deviation (℃) ±0. 5~±2. 0 (RT+20℃~+200℃) , ±0. 5~±2. 0 (200t~+300℃)
Heat Up Time (min) 50 (RT→+200℃) , 90 (RT→+300℃)
Test Space Dimension (mm) 600Wx500Dx900H 850Wx700Dx1000H
External Dimension (mm) 1000Wx780Dx1710H 1250Wx980Dx1850H
Power AC380V±10%, 50HZ, 3/N/PE
Aging Rooms EWG25 EWG45 EWG100 EWG120
Test Space Volume (m3) 25 45 100 120
Temp. Range (℃) RT+10~85
Temp. Constancy (℃ ) ±0. 5~±1. 0
Temp. Homogeneity (℃) ±1. 5~±3. 0
Temp. Deviation (℃) ±1. 5~±3. 0
Heating Rate (℃/min) 2℃/min on average
Power AC380V±10%, 50HZ, 3/N/PE


Options Standard Version
Independent sensors for specimen protection (NE60519-2. 1993) 1 Entry portΦ50mm
1 Entry port Φ100mm 1 Silicon stopper for entry port
Nitrogen gas auxiliary device 2 Stainless steel shelves
Spare parts package
E-management and cyber-software
Video monitor system
APP for mobility management

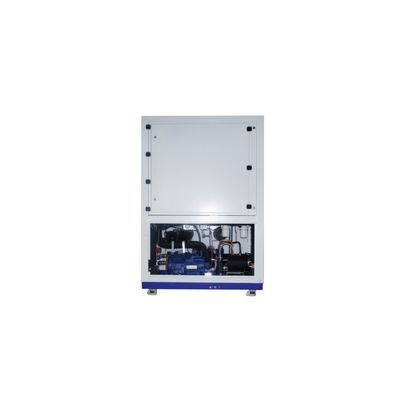

220V Accelerated Aging Test Chamber 1
