| Brand Name: | Envsin |
| Model Number: | ETZ |
| MOQ: | 1 |
| Price: | $120000 >=1 Set |
| Payment Terms: | Western Union, T/T, L/C, D/A, D/P |
| Supply Ability: | 5 sets per month |

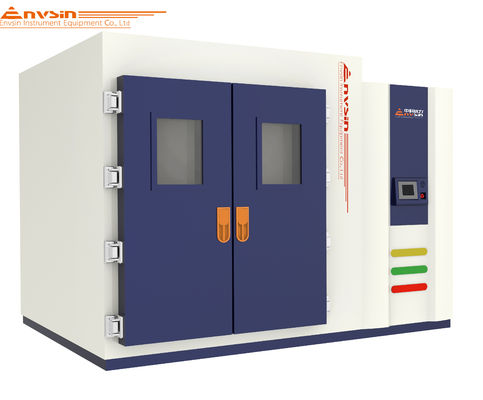

Walk In Environmental and Humidity Test Chamber With Computer Precision Control
The Walk-in chamber is a full range of reliable test chambers and the perfect test site for everything from testing against humidity, temperature and various climate conditions. it provides supreme temperature testing for large components and equipment.Whether you are storing many small products on carts, creating a controlled workspace for research and design, or if you need to drive large vehicles in for testing, we can special design for you.
| Ø Special anti-condensation function to protect specimens during climate testing. |
| Ø Intelligent and high-performance servo refrigerating control technology: rapid heating/cooling rate. |
| Ø Automatic water supply with ultrapure filter devices |
| Ø Automatic reminder of equipment maintenance plans and software of recording malfunction. |
| Ø Unique operation mode: make testing area's temperature back to room temperature after tests are finished |
| Ø Unique design: no-need defrosting during long period operation in low temperature |
Specifications
| Temp Chambers | ETZ 8/4010 | ETZ 17/4010 | ETZ 28/4010 |
| Climate Chambers | ECZ 8/010 | ECZ 17/010 | ECZ 28/010 |
| Temp Climate Cycling Chambers | ETCZ 8/4010 | ETCZ 17/4010 | ETCZ 28/4010 |
| Test Space Volume (m3) | 8 | 17 | 28 |
| Test Space Dimension (mm) | 2000W*2000D*2056H | 2250W*2500D*3032H | 2250W*2500D*5000H |
| External Dimension (mm) | 2240W*2240D*3800H | 2490W*2740D*4900H | 2490W*2740D*6860H |
| Floor Load (N/m2) | 30000 | ||
| ETC:-60,-40/+80,+100,+150,+180 optional | |||
| Temp Range (℃) (No Load) | ECZ: 0/+80,+100 optional | ||
| ETC: -60,-40/+80,+100,+150 optional | |||
| Humid. Range( %RH) | 15~95(ETZ, ETCZ ) | ||
| Dewpoint Temp. Range (℃) | +4~+59,+4~+95 | ||
| Heating/Cooling Rate (IEC60068-3-5) | |||||||||
| LEVEL 1(K/MIN) | |||||||||
| 4.5 | 4.5 | 3.7 | 3.7 | 2.7 | 2.7 | 2.1 | 2.1 | 1.7 | 1.7 |
| LEVEL 2(K/MIN) | |||||||||
| 5.5 | 5.5 | 4.5 | 4.5 | 3.2 | 3.2 | 2.6 | 2.6 | 2 | 2 |
| Temp. Constancy (K) | ±0.1~ ±0.5 ( IEC60068-3-5) | |||
| Temp. Homogeneity (K) | ±0.5 ~ ±3.0 ( IEC60068-3-5) | |||
| Humid. Constancy Entry (%RH) | ±1.0 ~ ±5.0 ( IEC60068-3-5) (ECZ, ETCZ Series) | |||
| Door Dimension Power (mm) | 900W*1900H(Single Door), 2000W*2000H (Double Door) | |||
| Power | AC380V±10%,50Hz,3/N/PE | |||
| Options | Standard Version |
| ☆ Independent sensors for specimen protection (NE60519-2.1993) | ☆ 1 Entry port Ø 100mm |
| ☆ Spare parts package | ☆ 1 Silicon stopper for entry port |
| ☆ E-management and cyber-software | ☆ Automatic water supply |
| ☆ Video monitor system | ☆ Water tank with 20L |
| ☆ APP for mobility management | ☆ Water filter |
| ☆ 1 Entry port Ø 50mm | |
| ☆ Nitrogen gas auxiliary device | |
| ☆ Drier filter for compressing air |
Operation System Display
