230V Salt Fog Test Chamber

Brand Name:	Envsin
Model Number:	ECSE
MOQ:	1
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Chamber Name:

Salt Spray Test Chamber

Certification:

ISO, CE

Power:

AC230V±10%，50HZ，1/N/PE

Temp. Range:

10℃～80℃

Humid. Range:

20%RH～98%RH

Humid. Fluctuation:

±3.0%RH

Highlight:

408L salt fog test chamber

230V salt fog test chamber

230V cyclic corrosion test chamber

Product Description

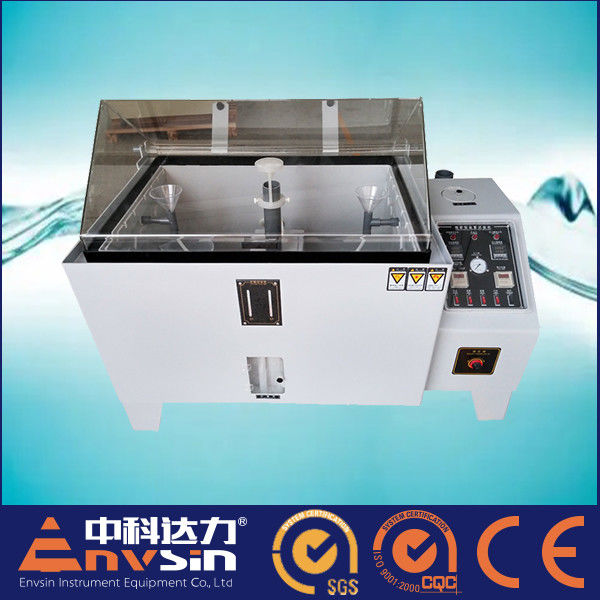

Touch Screen Salt Spray Test Chamber For Ship and Marine Products

Features

• Stamping forming quality CPVC (PVC plate + electrostatic spray treatment processing reinforcement steel chassis structure, beautiful, solid, heat resistance corrosion.

• Equipped with test chamber cover gasket automatic lifting device operation function, good sealing,safe and efficient operation.

• Maintainable reagent bottles,with special design and the supplementary water level observation table are very strong,and convenient to operate and wash.

• Air pressure (saturated) barrel with resistance to high temperature and pressure plastic molding, high strength integrated work, good durability and heat preservation effect.Laboratory basket designed by plane degree,can be adjusted.

• Equipped with functions of monitoring over temperature protection , water monitoring protection and low water level automatic water supplement function.

• Test chamber cover gasket with transparent glass observation window, combined with mist device, is convenient to observe experiment clearly

230V Salt Fog Test Chamber 0

Specifications

Salty spray tester ESE/Combination	ECSE-270	ECSE-408	ECSE-800	ECSE-1200
Type ECSE Test Space Volume (L)	270L	408L	800L	1200L
Inner Dimentsion (W×D×H)mm	900×600×500	1200×800×500	1600×1000×500	2000×1000×600
External Dimension (W×D×H)mm	2450×1553×1430	2830×1560×1830	2830×1560×1830	3630×1560×1930
Salt water tank volume(L)	25L	40L	40L	60L
Salt Fog/Condensate Test	Temp. Range (℃) :RT+5℃～50℃
	Humid. Range :Relative humidity/Saturated Humidity
	Saturated Air Barrel Temp Range:RT+5℃～65℃
	Salt Spray Sedimentation Rate:1～2ml·80cm²·h /Others are adjustable
Climate Testing	Temp. Range :10℃～80℃
	Temp. Deviation:±2.0℃
	Temp. Fluctuation:±0.5℃
	Temp. Uniformity:±1.0℃
	Humid. Range(℃):20%RH～98%RH
	Humid. Deviation:+2.0%RH/-3.0%RH
	Humid. Fluctuation:±3.0%RH
	Humid.Uniformity:±2.0%RH
Control Interface	LCD Touch Screen Digital Control , LED Digital Display control(Touch Screen Adjustable)
Power	AC380V±10%,50HZ,3/N/PE, AC230V±10%,50HZ,1/N/PE
Test Standards	Reference GB,ISO,ASTM,BS,DIN,JIS, etc National or International Standards
Customized Function And Model	Satisfy Diverse Customers' Needs, Can Provide Special Function And Customized Model

ESE-X(X stands for volume)
Type ESE Test Space Volume (L)	108,270,408,600,800,1200
Inner Dimentsion (W×D×H)mm	Reference ECSE Series
External Dimension (W×D×H)mm	The Size Is Smaller Than ECSE Series
Salt water tank volume(L)	Reference ECSE Series

Standard Version	Option Version
• C-BAR	• Air Compressor Unit
• V Shaped Speciman Rack	• Reagent Grade Analysis Pure Sodium Chloride(NaCl)
• Measuring Cylinder	• Reagent Grade Copper Chloride(CuCl2HO)
• Reagent Grade Analysis Pure Sodium Chloride(NaCl)500g*2	• Reagent Crade Glacial Acetic Acid(CH3COOH)

230V Salt Fog Test Chamber 1
