IEC60068-2-5 Solar Simulation Chamber

Product Details:
Place of Origin: China
Brand Name: Envsin
Certification: CE
Model Number: ESR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Payment Terms: T/T, Western Union

Detail Information

Item Name: Sunlight Simulation Chamber Customized Support: OEM, ODM, OBM
Power: AC380V±10%,50Hz±1 Standard: IEC60068-2-5
Heating Rate: ≥5℃/min Cooling Rate: ≥2℃/min
High Light:

120c Solar Simulation Chamber


IEC60068-2-5 Solar Simulation Chamber


IEC60068-2-5 xenon test chamber

Product Description

Customized Sunlight Environmental Temperature Solar Simulation Chamber

The solar radiation test chamber can be used to evaluate the thermal or photo-chemical ability of equipment that is directly exposed to solar radiation during the hot season of life to withstand solar radiation. The users can evaluate the performance changes of parts or vehicles after irradiation, including shape, color, gloss, feel, strength and various thermal expansion results, as well as testing of vehicle starting performance, motor performance, vehicle air conditioning performance and indicators under sunlight radiation.
Fashionable design of modular construction
7 colors touch screen display and 3 bit control system;interface Ethernet/USB
Special air circulation system inside ensures testing accuracy.(Patented)
Optional network video monitoring and data synchronization
Environment-friendly refrigerating control technology, energy saving
Automatic reminder of equipment maintenance plans and software of recording malfunction
Optional remote-assist service function and teaching CDs

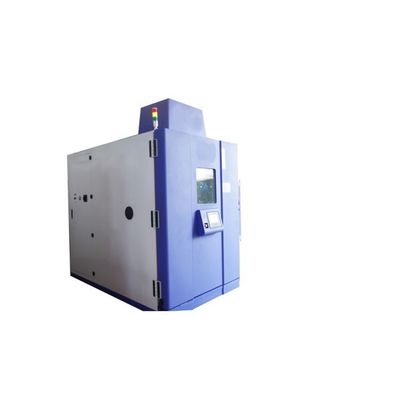

IEC60068-2-5 Solar Simulation Chamber 0



The Temperature Test No radiation temperature range: -40℃~+120℃


1, Test with no load, meeting GB/T5170-2008,if no other special notice.

2, Ambient Temp 25℃, good Ventilation condition:function well if 35℃≥RT 25℃; Cool down rate and thermal load capacity will be affected by ambient low temperature.

Radiation temperature range: -20℃~+100℃
Temperature uniformity: ≤1.5℃
Temperature deviation: ±2.0℃
Temperature fluctuation: ±0.5℃
Heating rate: ≥5℃/min
Cooling Rate: ≥2℃/min
Temperature And Climatic Test Temperature range:+20℃~+85℃
Humidity range: 10%RH~98%RH
Temperature uniformity: ≤1.5℃
Humidity uniformity: 3.0%RH
Temperature deviation: ±2.0℃
Humidity deviation: +2/-3%RH
Temperature fluctuation: ±0.5℃
Humidity fluctuation: ±2.0%RH
Solar Radiation Test UV Exposure Area: >5600cm²
The light wavelength: all band spectrum, simulated sunlight from 280 nm to 3000 nm
Irradiation intensity :(0 ~ 1200) W/M² can be adjusted, and can be recorded continuously during the test



It is applied to pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products etc; The test Data result which is very useful for scientific research, product development and quality control sector to help them produce high quality anlysis report

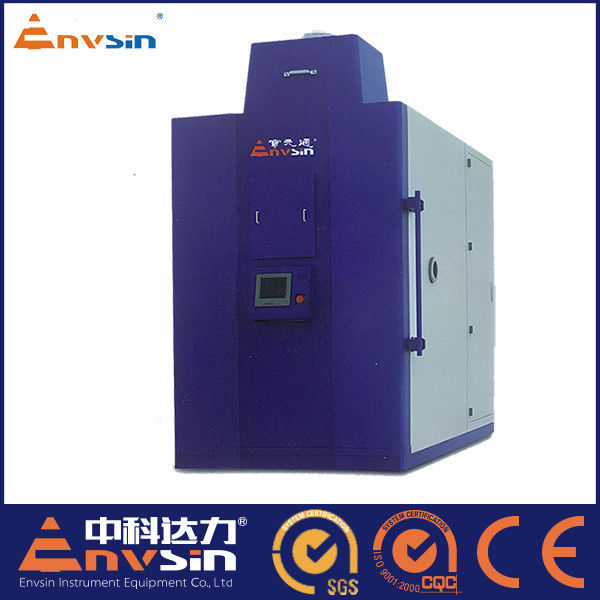

IEC60068-2-5 Solar Simulation Chamber 1
IEC60068-2-5 Solar Simulation Chamber 2
