Battery Testing Aging Test Chamber High Temperature Aging Test Chamber

Brand Name:	Envsin
Model Number:	EWG3010
MOQ:	1
Price:	To Be Negotiated
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	25 per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE and ISO

Product Name:

Aging Test Chamber

Test Space:

1000L

Internal Size:

1000mm×1000mm×1000mm(W×D×H)

External Size:

1690mmx1280mmx1850mm (W×D×H)

Power Supply:

AC380V±10%,50Hz±1,60A, 3/N/PE, Earth Resistance < 4Ω

Weight:

About 300kg

Packaging Details:

Wooden packing

Supply Ability:

25 per month

Highlight:

Envsin battery test chamber

1000L battery test chamber

1000Luv weathering chamber

Product Description

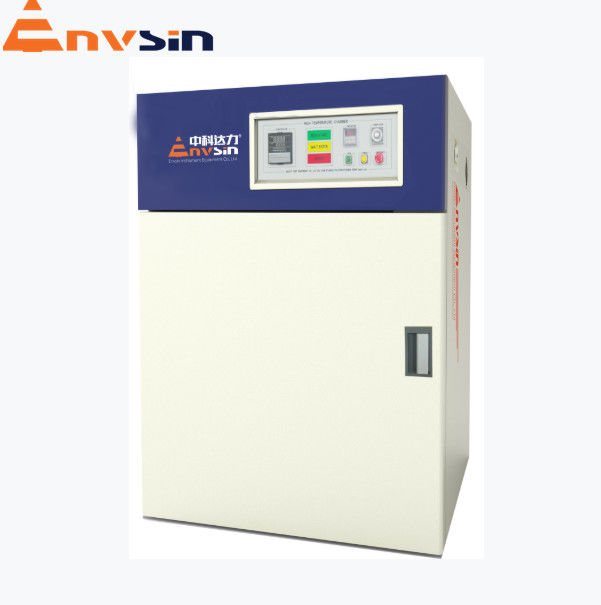

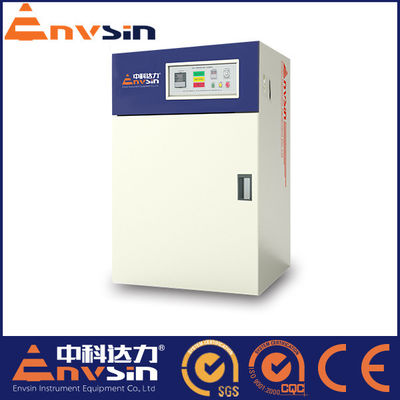

Battery Testing Aging Test Chamber High Temperature Aging Test Chamber

The Aging Test Chamber is suitable for the whole machine device, parts, materials for high temperature accelerated aging test through the test of the equipment can be checked or evaluated product defects, to quickly find out the problem, provide effective means to solve the problem,fully improve production efficiency and product quality.

Feature:

Test Space 1000L
Internal size 1000mm×1000mm×1000mm(W×D×H)
External size 1690mmx1280mmx1850mm (W×D×H)
Power supply AC380V±10%,50Hz±1,60A, 3/N/PE, earth resistance < 4Ω
Weight About 300kg
Max. Currency 18.5A(Average operating currency 9A)
Max. Power 12.5KW(Average operating power 6KW)
Installation Space Work station ground should be flat, good ventilation; no flammable article, corrosive gas or dust
No strong electromagnetic radiation source nearby
Close to drainage system ( within 2 meters to refrigeration unit,for condensate water)
The ground bearing capacity not less than 8000kg/m2
Prepare proper power supply and water supply
The ground bearing capacity not less than 8000kg/m2
Prepare proper power supply and water supply
If need water or gas supply, should be equipped with in advance
Ambient Temp: 5℃~25℃suggested, 25℃~35℃ function well
Ambient Humid:≤85%RH
Ambient Pressure:86KPa～106KPa
Installation space assurances, as following

Installation Space:

Work station ground should be flat, good ventilation; no flammable article, corrosive gas or dust

No strong electromagnetic radiation source nearby

Close to drainage system ( within 2 meters to refrigeration unit,for condensate water)

The ground bearing capacity not less than 8000kg/m2

Prepare proper power supply and water supply

If need water or gas supply, should be equipped with in advance

Ambient Temp: 5℃~25℃suggested, 25℃~35℃ function well

Ambient Humid:≤85%RH

Ambient Pressure:86KPa～106KPa

Installation space assurances, as following

Battery Testing Aging Test Chamber High Temperature Aging Test Chamber 0

Specifications:

Model:	EWG2006	EWG3006	EWG2010	EWG3010
Test Space Volume(L)	1000		600
Temp.Range(℃)	R.T+20~200	R.T+20~300	R.T+20~200	R.T+20~300
Temp.Constancy(℃)	±0.1~±0.8
Temp.Homogeneity(℃)	±0.5~±2.0(RT+20℃~+200℃),±1.5~±3.5(200℃~+300℃)
Temp.Deviation(℃)	±0.5~±2.0(RT+20℃~+200℃),±0.5~±2.0(200℃~+300℃)
Heat Up Time (min)	50(RT→+200℃),90(RT→+300℃)
Test Space Dimension(mm)	850W×700D×1000H		1000W×1000D×1000H
External Dimension(mm)	1250W×980D×1850H		1690W×1280D×1850H
Power	AC380V±10%,50HZ,3/N/PE

Aging Rooms	EWG25	EWG45	EWG65	EWG85	EWG100	EWG120
Test Space Volume(m³)	25	45	65	85	100	120
Temp.Range(℃)	RT+10~85
Temp.Constancy(℃)	±0.5~±1.0
Temp.Homogeneity(℃)	±1.5~±3.0
Temp.Deviation(℃)	±1.5~±3.0
HeatingRate(℃/min)	2℃/min on average
Power	AC380V±10%,50HZ,3/N/PE

Battery Test Chamber Options Accessories

• Independent sensors for specimen protection(NE60519-2.1993)
• 1 Entry port Φ100mm
• Nitrogen gas auxiliary device
• Spare parts package
• E-management and cyber-software
• Video monitor system
• APP for mobility management

Battery Test Chamber Standard Version

• 1 Entry port Φ50mm
• 1 Silicon stopper for entry port
• 2 Stainless steel shelves

Battery Testing Aging Test Chamber High Temperature Aging Test Chamber 1
