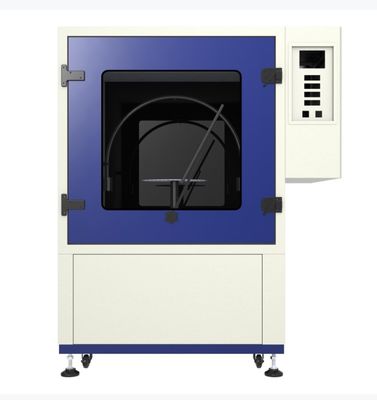

IPX5 IPX6 IPX9 Rain Spray Test Chamber Meet The Military And Industry Standards
This rain spray test chamber is mainly used for testing the product get wet in the rain in the climate environment of storage,
transportation and use of performance test, mainly used in electrical and electronic products, lamps and lanterns, electrical cabinets, electrical components, automobile, motorcycle and parts, and other products under the condition of the climate simulation in the rain,
and other related physical properties of the product testing, testing, Through the verification to determine whether the performance of
the product can meet the requirements for product design, improvement, verification and delivery inspection use.
| Model:Rain spray testchamber | EFS-PRO Series | ||
| Standards | GJB-150.8-2009 | ||
| Spray Water Test: | Water-dripping Test: | ||
| Temp.Range(℃) | RT +10 ~ + 55(℃) | Temp. Range (℃) | RT +10 ~ + 55 |
|
Spray Intensity (cm/h) |
10~20 (Rotating shelf spray rate;Programmable) |
Dripping Area |
760×760mm, Dripping Platform adjustable |
|
Water Drop Diameter(mm) |
0.5 ~ 4.5 |
Water Drop Diameter(mm) |
0.5 ~ 4.5,Dripping Hole Distance 25.4 |
|
Air Speed Range (m/s) |
5~18 (Rotating Shelf entry horizontal air speed) |
Rain Rate (L/m ².h) |
280±300 |
|
Spray Time (min) |
Programmable (0~999);auto-controlled and cycled |
Distance(m) |
Dripping Distance 1 |
|
Warm Up Range(℃) |
Water Temp. +10 (Max+55) |
Water Supply |
Continuously Pump Auto Supply;controlled |
|
Rotating Shelf Dimension |
φ800mm, Rotating Shelf speed adjustable |
Dripping Time (min) |
0~999, programmable |
|
Weight (kg) |
65 |
Specimens Dimension(mm) |
Max. Dimension :φ700×700 |
|
Specimens Dimension |
Max. Dimension:φ700×700mm |
||
| Water-Proof Test: | |||
|
Water Spray Pressure(KPa) |
276 |
Water Supply Method |
Water Pump Supply Continuously |
|
Stainless Steel Nozzles |
Overhead,grid-shape,nozzle angle adjustable |
Test Time(min) |
0~999, Adjustable |
|
Nozzles Amt |
At least 1/0.56m in the raining range Nozzles installed 450mm~500mm to the suface of samples |
Water Drop Diameter (mm) |
2~4.5 |
| Specimens Dimension | Max, Dimension φ700×700mm | ||
| Test Space Dimension | 1500W*1500D*1600H(mm) | ||
| Power | AC380V ±10%, 50HZ, 3/N/PE | ||
| Model:Rain spray test chamber | EFS-LX Series | EFS-LC Series | EFS-LV Series |
| Test Space Dimension(mm) | 900W*900D*900H(1400) | 1300W*1300D*1300H(1800) | 1700W*1700D*1700H(2200) |
| Optional water-proof test | IPX1,IPX2(Dripping teset; vertical, slope15 ); IPX3,IPX4 (Swing pipes or Spraytest) | ||
| Abilities (composable) | IPX5,IPX6 (Flush Test); IPX9 (Shower test) | ||
| Standards | GB4208-2008/IEC60529:2001 | ||
| Power | AC230V±10%, 50HZ, 1/N/PE | ||
|
Options Accessories Entry ports Power outlets for specimens Spare parts package E-management and cyber-software Video monitor system |
Standard Version Matched rotating shelf for specimens Water filter |
