| Brand Name: | Envsin |
| Model Number: | ESC500/ESC800/ESC1000/ESC1500 |
| MOQ: | 1 |
| Price: | To Be Negotiated |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 25 per month |

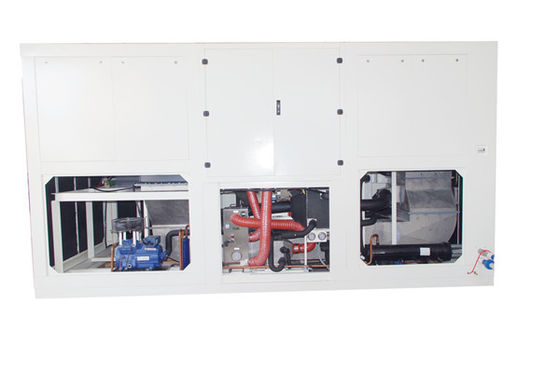

IP5X IP6X Sand and Dust Test Chamber for Electronics & Automotive
The system mainly consists of dust blowing test unit, and auxiliary equipment to control dust falling quantity, wind speed, temperature and humidity of the dusty air. Maintain and check the amount of circulating dust in the test chamber with calibrated instruments. The flow into the test chamber area to impact the specimen should be as close to laminar flow as possible, at least to prevent vortex formation. This system is suitable for the test piece of dust blowing test.
|
Internal size |
1500×1500×1500mm |
|
External size |
2100mm×5050mm×3120mm |
|
Power supply |
AC380V±5%,50Hz±1 |
|
Max operating power |
38.2KW |
|
Max operating current |
67.3A |
|
Installation Space |
|
|
Temp. Range |
23℃～80℃ |
|
Temperature uniformity |
±2.0℃ |
|
Temperature departure |
±2.0℃ |
|
Temperature fluctuation |
±1℃ |
|
Heating/Cooling rate |
≥1℃/min |
|
Blowing dust concentration |
GB4208-2008 / IEC60529:2001 |
|
Dust blowing wind speed |
AC230V ±10%, 50HZ, 3/N/PE |
|
Dust |
Content is 97% ~ 99% of the carbon dioxide (quartz sand) |
|
Sand dust particles |
≤149μm |
|
Dust flow velocity |
Adjustable (air outlet measurement) |
|
Humidity range |
30%RH |
|
The workbench size |
≥Φ800mm |
|
Load-bearing |
≥100kg |
|
Speed |
3～7 r/min |
|
Meet the execution standard GJB 150.12A -- 2009 Military equipment laboratory environmental test method part 12: sand dust test. |
|
