Detail Information |
|||
Production Name: | Gas Corrosion Chamber | Warranty: | 12 Months |
---|---|---|---|
Wind Speed: | ≤1.7m/s | Certification: | CE, ISO |
Gas Concentration: | 5ppm~30ppm | Gas Flowmeter: | H2S,SO2,CI2,NO2 |
Usage: | Universal Testing Machine | Power: | AC380V 50Hz/60Hz 3/N/P |
High Light: | 30ppm cyclic corrosion chamber,SO2 cyclic corrosion chamber,SO2 gas test equipment |
Product Description

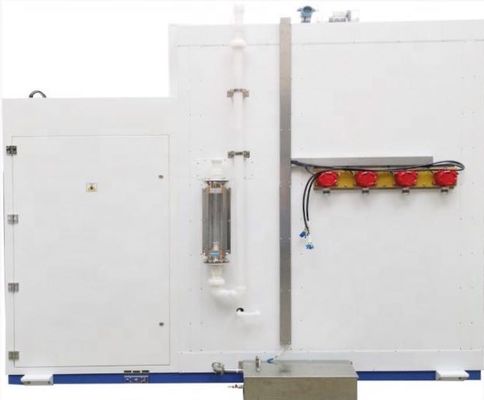

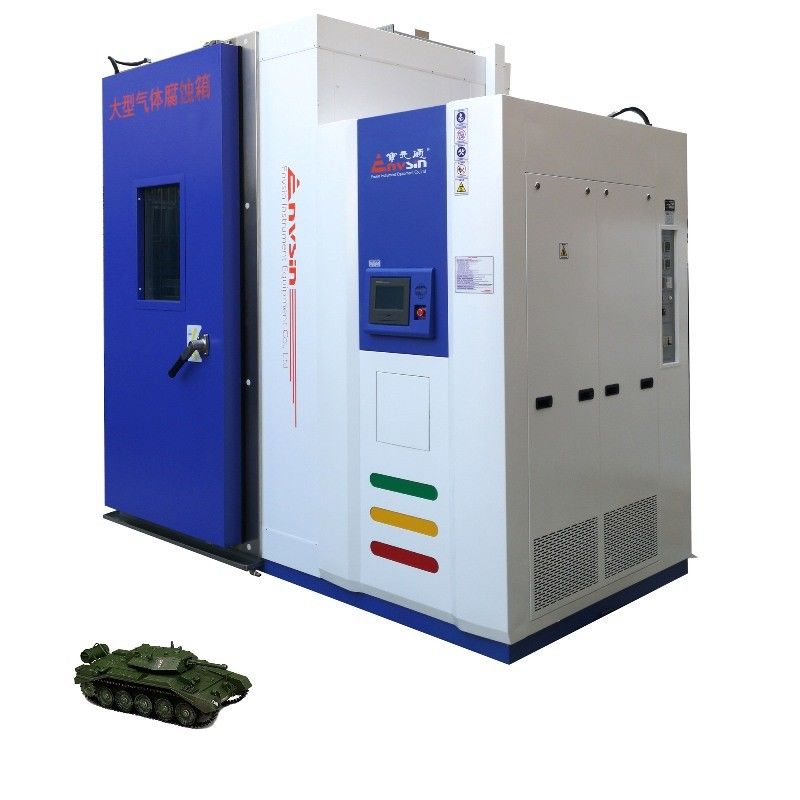

Stainless Steel Gas Corrosion Test Chamber Simulating H2S NO2 SO2 Sulphur Dioxide
Our service:
Main Technical Parameters (Product Model:EQF2330) | ||
Temperature Test |
Temperature range:20℃~+45℃ |
Remark:
1. Test in accordance with IEC60068
under empty chamber condition (except indicated).
2. The test data of the water-cooled
test chamber are under the conditions that the water
temperature is less than 28, the water pressure is between 0.3Mpa and 0.6Mpa, and the
water pressure difference between inlet and outlet is more than 0.2Mpa.
|
Temperature uniformity:≤2.0℃ | ||
Temperature deviation:≤±2.0℃ | ||
Temperature fluctuation:≤±0.5℃ | ||
Temperature change rate:≥1℃/min
|
||
Temperature and Humidity Climatic Test |
Humidity temperature control range:20℃~+50℃ Humidity range:50%RH~85%RH |
|
Humidity uniformity:±5.0%RH | ||
Humidity deviation: +2.0%~3%RH(>75%RH)±5%R.H(≤75%RH) | ||
Humidity deviation: +2.0%~3%RH(>75%RH)±5%R.H(≤75%RH) | ||
Gas Concentration |
5ppb~30ppm | |
The deviation of gas concentration in the chamber shall not exceed 10% of the set concentration,Concentration uniformity deviation of 10% | ||
The empty chamber operation request meets the IEC60068-2-60 standard | ||
Gas concentration measurement | By calculating the volume ratio and then through the mass flowmeter measurement | |
On load capacity | 500W,The temperature can be stable, the chamber body is not deformed | |
Noise | Working noise ≤70dB (measured at 1 meter away from the test chamber) | |
Wind speed | ≤1.7m/s | |
Gas flowmeter | H2S,SO2,NO2,CI2 | |
Standard |
(IEC60068-2-1:2007) Test A: Low temperature test method | |
(IEC60068-2-2:2007) Test B: High temperature test method | ||
(IEC60068-2-78:2007) Test Cab: Constant humidity and heat test | ||
(IEC60068-2-30:2005) Test Db: alternating humidity and heat test | ||
IEC60068-2-60 Test Method KE: Man-made low concentration pollution gas corrosion test | ||
Environmental testing of electrical and electronic products Test KE: Flow mixed gas corrosion test |
