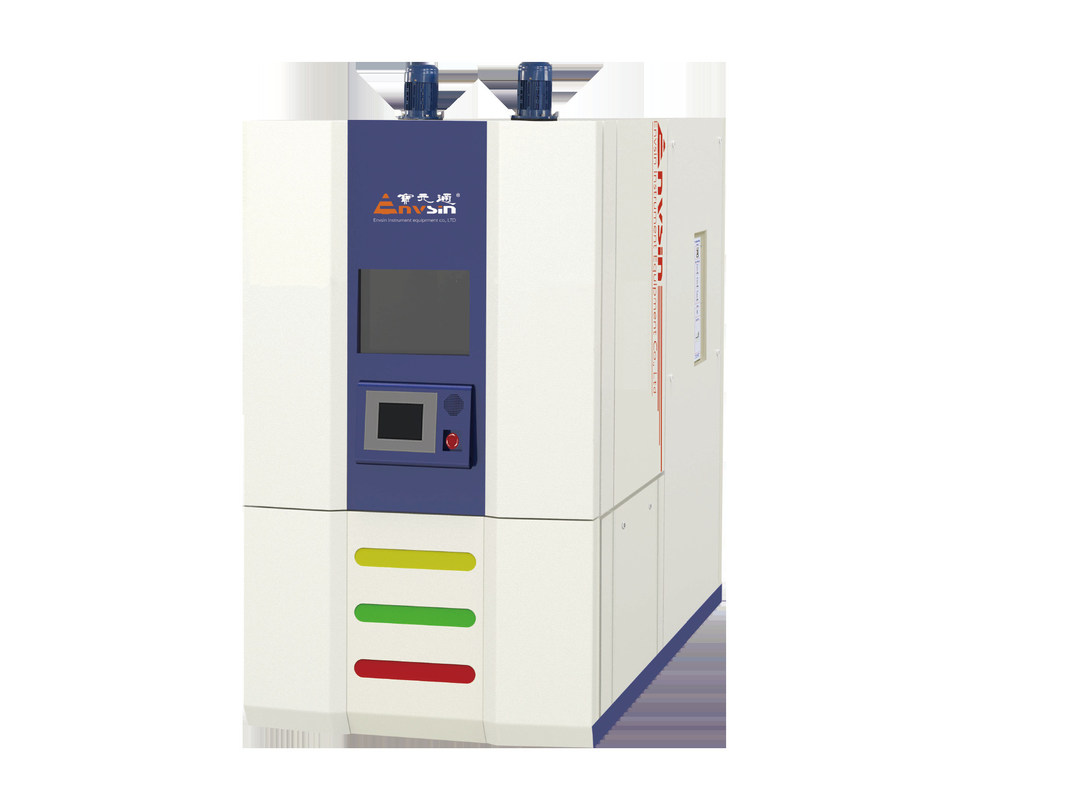

High Reliability 250L 18.8KPa Pressure Test Chamber Electronic

Minimum Order Quantity :	1	Payment Terms :	T/T, Western Union

Place of Origin:	China	Brand Name:	Envsin
Certification:	CE	Model Number:	ETQ

Detail Information
Item Name:	High Altitude Test Chamber	Test Space Volume:	250,1000L
Temp. Range:	-70 ℃~ +150 ℃	Cooling Methods:	Water-Cooled
Power:	Electronic	Application:	Widely Used
High Light:	250L pressure test chamber , 18.8KPa pressure test chamber , 250L space simulation vacuum chamber

Product Description

250L 1000L high and low temperature humidity low Air Pressure Test Chamber

Features

☆ Optional APP mobility management

☆ Fashionable desig of modular construction

☆ Built-in radiation shield ensures temperature

☆ Optional remote-assists service function and teaching CDs

☆ High-performance water ring vacuum pump controls low pressure

☆ Automatic water supply with Ultrapure filter devices water shortage reminder function

☆ Automatic reminder of equipment maintenance plans and software of recording malfunction

☆ Unique operation mode: make testing area's temperature back to room temperature after tests are finished

☆ Intelligent and independent protection design for overload, overheat, powersupply abnormity, overvoltage, component malfunction monitoring

High Reliability 250L 18.8KPa Pressure Test Chamber Electronic 0

Specifications

Temperature Chambers	ETQ7025	ETQ7050
Climate Chambers	ECQ7025	ECQ7050
Test Space Volume (L)	250	500
Temp. Test Parameters:
Temp. Range (℃)	-70~+150
Temp.Constancy (℃)	±1.0 ~ ±0.8 (Atmospheric Pressure No Load)
Temp. Homogeneity (℃)	±0.5 ~ ±2.0 (Atmospheric Pressure No Load)
Temp. Accuracy (℃)	±2.0 (Atmospheric Pressure No Load)
Heat Up Time (min) (+20℃ to~150℃)	60	60
Cooling Down Time (min) (+20℃ to~60℃)	90	80
Pressure Range (Kpa)	Atmospheric Pressure~ 1.0 Atmospheric Pressure ~ 0.5
Pressure Accuracy (Kpa)	±2.0 (Atmospheric Pressure~ 40Kpa);±5%(40KPa~4KPa);±0.1(4KPa~1KPa)
Pressure Release Time (min)	45(Atmospheric Pressure→1KPa)
Rapid Release of Pressure Function (Optional)	Pressure Release Range:75.2KPa →18.8KPa; Pressure Release Time:15sec
Climate Test Parameters for ECQ series:
Temp. Range (℃)	+10 ~ +95
Temp. Constancy (℃)	±1.0 ~ ±0.8 (Atmospheric Pressure No Load)
Temp. Homogeneity (℃)	±1.0 ~ ±2.0 (Atmospheric Pressure No Load)
Humid. Range (%RH)	(10) 20 ~ 98 (Atmospheric Pressure No Load)
Humid. Constancy (%RH)	±1.0 - ±3.0 (Atmospheric Pressure No Load)
Test Space Dimension (mm)	600W×600D×700H	800W700D900H
External Dimension (mm)	1000W×1800D×1800H	1500W2750D1900H
Power	AC380V±10%,50HZ,3/N/PE
Cooling Methods	Water-Cooled

Options	Standard Version
☆ APP for mobility management	☆ 1 Set testing electrode
☆ Independent sensors for specimen protection (NE60519-2.1993)	☆ Electronic temperature and humidity sensors
☆ 1 Entry port Φ50mm
☆ Nitrogen gas auxiliary device
☆ Spare parts package
☆ E-management and cyber-software
☆ Rapid release of pressure device
☆ Video monitor system
☆ Rapid recovered pressure device
