High Precision Envsin 280nm Solar Simulation Chamber Temperature Humidity

Name: High Precision Envsin 280nm Solar Simulation Chamber Temperature Humidity
Brand: Envsin
SKU: ESR
Price: 8000 USD
Availability: InStock
Rating: 4.6 (153 reviews)

Minimum Order Quantity :	1	Price :	$8000 >=1 Set
Delivery Time :	35 days	Payment Terms :	T/T, Western Union, D/P
Supply Ability :	20 sets per month

Place of Origin:	China	Brand Name:	Envsin
Certification:	CE	Model Number:	ESR

Detail Information
Chamber Name:	Solar Simulation Test Chamber	Warranty Period:	12 Months
Test Volume:	1500L And Other Customized	UV Exposure Area:	＞ 5600cm²
The Light Wavelength:	From 280 Nm To 3000 Nm	Power:	Electronic AC380V±10%,50Hz
High Light:	Envsin Solar Simulation Chamber , 280nm Solar Simulation Chamber , 280nm chamber temperature humidity

Product Description

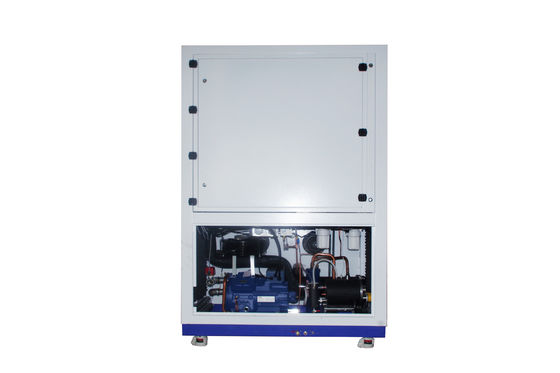

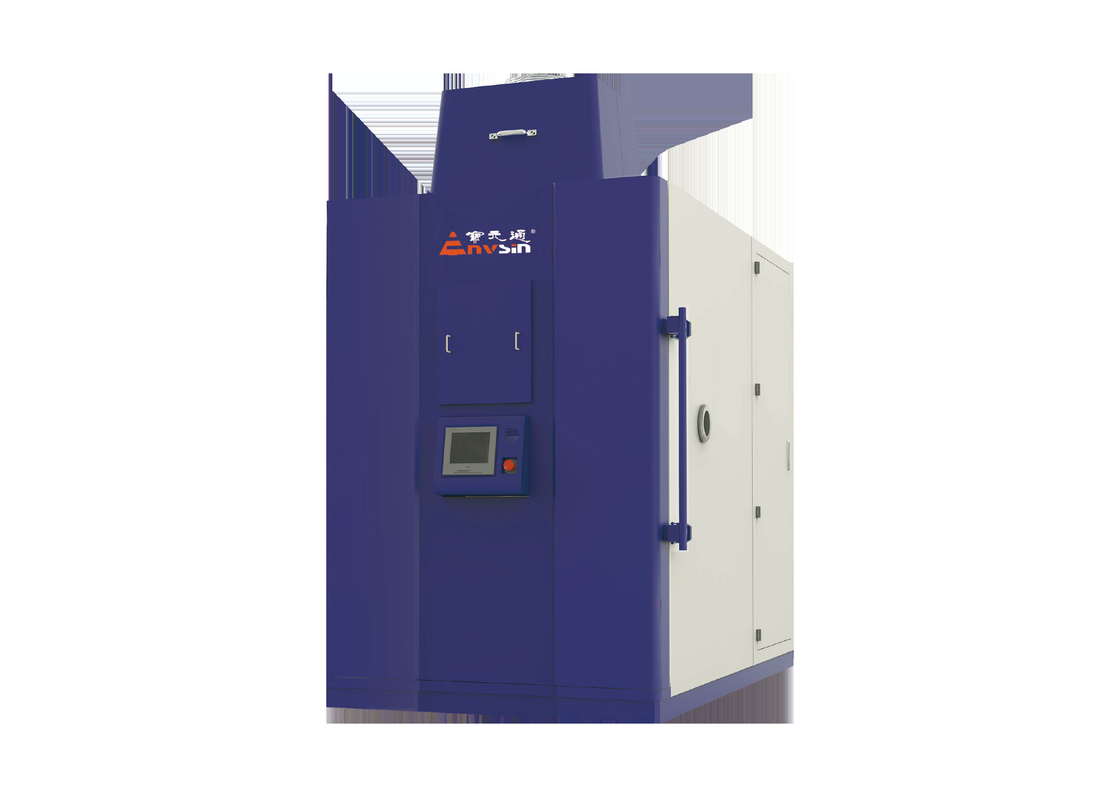

Solar Radiation Simulation Chamber With Temperature and Humidity

The test chamber apply to evaluate the thermal or photo-chemical ability of equipment that is directly exposed to sunlight radiation during the hot season of life to withstand solar radiation. users can evaluate the performance changes of parts or vehicles after irradiation, including shape, color, gloss, feel, strength and various thermal expansion results, as well as testing of vehicle starting performance, motor performance indicators under sunlight radiation.

Features

★Fashionable design of modular construction

★7 colors touch screen display and 3 bit control system;interface Ethernet

★Special air circulation system inside ensures testing accuracy.(Patented)

★Optional network video monitoring and data synchronization

★Environment-friendly refrigerating control technology.

★Automatic reminder of equipment maintenance plans and software of recording malfunction

Specifications

The Temp Test	No radiation temp range: -40℃～＋120℃	Note:1, Test with no load, meeting GB/T5170-2008,if no othmeeter special notice. 2, Ambient Temp 25℃, good Ventilation condition:function well if 35℃≥RT ＞ 25℃; Cool down rate and thermal load capacity will be affected by ambient low temperature.
	Radiation temp range: -20℃～+100℃
	Temp uniformity: ≤1.5℃
	Tempe deviation: ±2.0℃
	Temp fluctuation: ±0.5℃
	Heating rate: ≥5℃/min
	Cooling Rate: ≥2℃/min
Temp And Climatic Test	Temp range:＋20℃～＋85℃
	Humidity range: 10%RH～98%RH
	Temp uniformity: ≤1.5℃
	Humidity uniformity: 3.0%RH
	Temp deviation: ±2.0℃
	Humidity deviation: ＋2/－3%RH
	Temp fluctuation: ±0.5℃
	Humidity fluctuation: ±2.0%RH
Solar Radiation Test	UV Exposure Area: ＞5600cm²
	The light wavelength: all band spectrum, simulating sunlight from 280 nm to 3000 nm
	Irradiation intensity :(0 ~ 1200) W/m² can be adjusted, and can be recorded continuously

Curve diagram

Temperature And Humidity Curve Diagram Full Spectral Image Of The Luminaire
