China Factory High-Volume Walk-in Temperature Humidity Chamber for Product Testing

Brand Name:	Envsin
Model Number:	ECZ
MOQ:	1 set
Price:	$300000 >=1 Set
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	5 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

ISO CE

Power:

380VAC±10% 50/60Hz

Warranty:

12 Months

Humidity Range:

10%～98%RH And Other Customized

Heating And Cooling Rate:

Heating 3℃/min, Cooling 1℃/min (customized Speed Rate According To Actual Use)

Temperature Range:

(0℃～80℃/100℃) And Other Customized Ranges

Test Volume:

8m3,12m3,17m3 And Other Customized

Color:

White/Blue

Supply Ability:

5 sets per month

Highlight:

12m3 temperature and humidity test chamber

380V temperature and humidity test chamber

380V tensile test environmental chamber

Product Description

walk-in Temperature and ClimateTest Chambers Overview

This test chamber is suitable for high temperature, low temperature and hot-humid or temperature and humidity cycling test of the whole units, parts and materials.

Features

Ø Globally advanced modular design	Ø Special anti-condensation function to protect specimens during climate testing.
Ø 7'' color touch screen display and 32bit control system	Ø Intelligent and high-performance servo refrigerating control technology: energy saving and rapid heating/cooling rate
Ø Optional App mobility management	Ø Automatic reminder of equipment maintenance plans and software of recording malfunction
Ø Customer-friendly design: observation window with a reality visualization for real-time monitoring	Unique operation mode: make testing area's temperature back to room temperature after tests
Ø Long defrosting cycles:over 700h's running without defrosting	Ø Unique design: no defrosting during long period operation in low temperature
Ø Combined seamless welding technology for permanent anti-deformation building	ØOptional remote-assist service function and teaching CDs

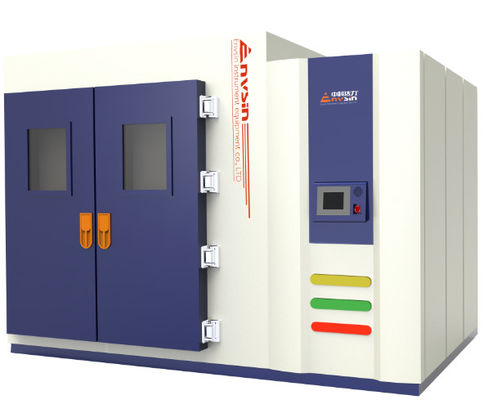

China Factory High-Volume Walk-in Temperature Humidity Chamber for Product Testing 1

Specifications

Temperature Chambers	ETZ 8/4010	ETZ 17/4010	ETZ 28/4010
Climate Chambers	ECZ 8/010	ECZ 17/010	ECZ 28/010
Temperature Climate Cycling Chambers	ETCZ 8/4010	ETCZ 17/4010	ETCZ 28/4010
Test Space Volume ( m3)	8	17	28
Test Space Dimension ( mm)	2000W2000D2056H	2250W2500D3032H	2250W2500D5000H
External Dimension ( mm)	2240W2240D3800H	2490W2740D4900H	2490W2740D6860H
Floor Load (N/m2)	30000
Temp Range (℃) (No Load)	ETC:-60,-40/+80,+100,+150,+180
	ECZ : 0/+80,+100
	ETC: -60,-40/+80,+100,+150
Humid. Range( %RH)	15~95(ETZ, ETCZ )
Dewpoint Temp. Range (℃)	+4~+59,+4~+95

Heating/Cooling Rate (IEC60068-3-5)
LEVEL 1(K/MIN)	4.5	4.5	2.7	2.7	1.7	1.7
LEVEL 2(K/MIN)	5.5	5.5	3.2	3.2	2.0	2.0
Temp. Constancy (K)	±0.1~ ±0.5 ( IEC60068-3-5)
Temp. Homogeneity (K)	±0.5 ~ ±3.0 ( IEC60068-3-5)
Humid. Constancy Entry (%RH)	±1.0 ~ ±5.0 ( IEC60068-3-5)
Door Dimension Power (mm)	900W1900H (Single Door), 2000W2000H (Double Door)
Power	AC380V±10%,50Hz,3/N/PE

Options	Standard Version
☆ Independent sensors for specimen protection (NE60519-2.1993)	☆ 1 Entry port Ø 100mm
☆ Spare parts package	☆ 1 Silicon stopper for entry port
☆ E-management and cyber-software	☆ Automatic water supply
☆ Video monitor system	☆ Water tank with 20L
☆ Water-Cooled unit	☆ Water filter

Operation System Display

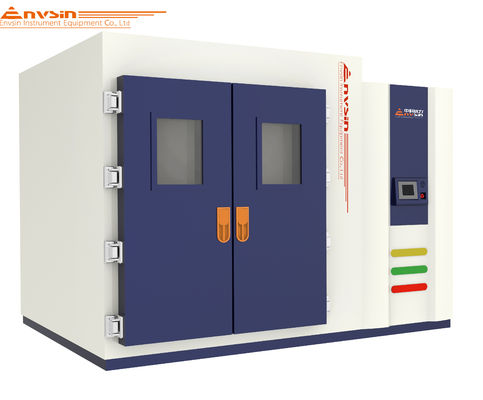

China Factory High-Volume Walk-in Temperature Humidity Chamber for Product Testing 2

Application

It is applied to pharmaceuticals, cosmetics, food,textiles, auto parts, packaging materials, building materials, electricity and the electrical products etc;

The test result which is very useful for scientific research, product development and quality control sector to help them produce high quality product.

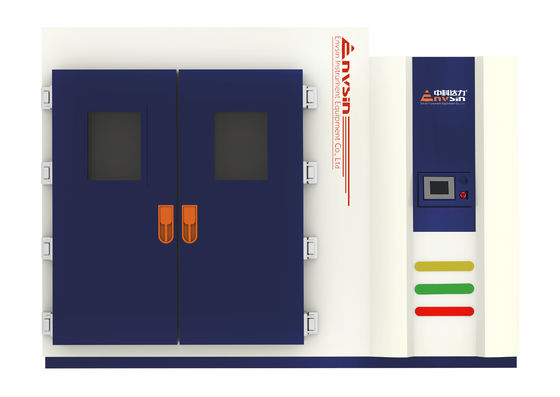

China Factory High-Volume Walk-in Temperature Humidity Chamber for Product Testing 3
