Walk-in Chamber for Extreme Temperature and Humidity Control

Brand Name:	Envsin
Model Number:	ETCZ
MOQ:	1 set
Price:	$300000 >=1 Set
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	5 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

ISO CE

Power:

AC380V±10% 50/60Hz 3/N/PE

Warranty:

12 Months

Humidity Range:

10%～98%RH And Other Customized

Heating And Cooling Rate:

Heating 3℃/min, Cooling 1℃/min (customized )

Temperature Range:

(-40℃/-60℃～80℃/100℃/150℃/180℃) And Other Customized

Test Volume:

8m3,17m3 And Other Customized Volume

Color:

Blue White

Supply Ability:

5 sets per month

Highlight:

multipurpose humidity and temperature controlled chamber

17m3 humidity and temperature controlled chamber

17m3 ess test chamber

Product Description

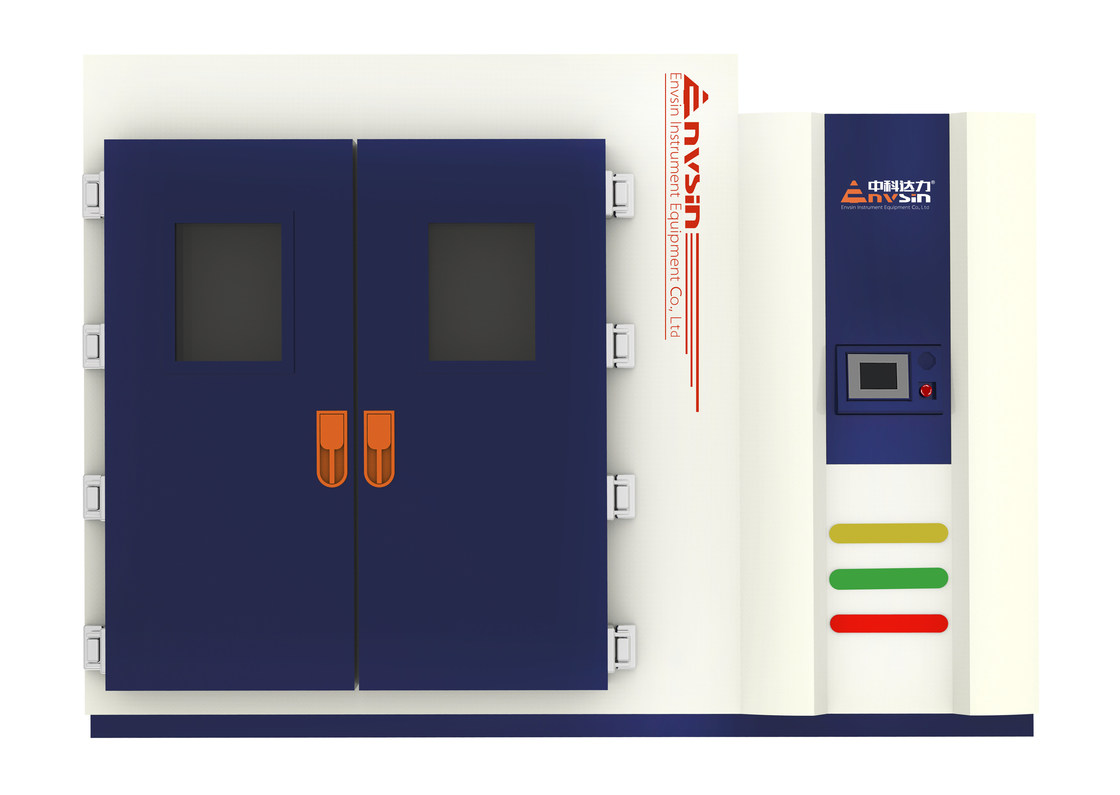

Walk-in Chamber for Extreme Temperature and Humidity Control

This test chamber is suitable for high temperature, low temperature and hot-humid or temperature and humidity cycling test of the whole units, parts and materials.

Features

Ø Globally advanced modular design	Ø Special anti-condensation function to protect specimens during climate testing.
Ø Optional App mobility management	Ø Automatic water supply with ultrapure filter devices
Ø Customer-friendly design: observation window with a reality visualization for real-time monitoring	Ø Automatic reminder of equipment maintenance plans and software of recording malfunction
Ø 4 load power outlets for specimens with programmable control for protection	Ø Unique design: no-need defrosting during long period operation in low temperature
Ø Combined seamless welding technology for permanent anti-deformation building	Ø Optional remote-assist service function and teaching CDs

Walk-in Chamber for Extreme Temperature and Humidity Control 0

Specifications

Temperature Chambers	ETZ 8/4010	ETZ 17/4010	ETZ 28/4010
Climate Chambers	ECZ 8 /010	ECZ 17/010	ECZ 28/010
Temperature Climate Cycling Chambers	ETCZ 8/4010	ETCZ 17/4010	ETCZ 28/4010
Test Space Volume (m3)	8	17	28
Test Space Dimension (mm)	2000W2000D2056H	2250W2500D3032H	2250W2500D5000H
External Dimension (mm)	2240W2240D3800H	2490W2740D4900H	2490W2740D6860H
Floor Load (N/m2)	30000
Temperature Range (℃) (No Load)	ETC:-60,-40/+80,+100,+150,+180
	ECZ: 0/+80,+100
	ETC: -60,-40/+80,+100,+150
Humid. Range( %RH)	15~95(ETZ, ETCZ )
Dewpoint Temp. Range (℃)	+4~+59,+4~+95

Heating/Cooling Rate (IEC60068-3-5)
LEVEL 1(K/MIN)	4.5	4.5	2.7	2.7	1.7	1.7
LEVEL 2(K/MIN)	5.5	5.5	3.2	3.2	2.0	2.0
Temp. Constancy (K)	±0.1~ ±0.5 ( IEC60068-3-5)
Temp. Homogeneity (K)	±0.5 ~ ±3.0 ( IEC60068-3-5)
Humid. Constancy Entry (%RH)	±1.0 ~ ±5.0 ( IEC60068-3-5)
Door Dimension Power (mm)	900W1900H(Single Door), 2000W2000H (Double Door)
Power	AC380V±10%,50Hz,3/N/PE

Options	Standard Version
☆ Independent sensors for specimen protection (NE60519-2.1993)	☆ 1 Entry port Ø 100mm
☆ Spare parts package	☆ 1 Silicon stopper for entry port
☆ E-management and cyber-software	☆ Automatic water supply
☆ Video monitor system	☆ Water tank with 20L
☆ APP for mobility management	☆ Water filter
☆ 1 Entry port Ø 50mm
☆ Nitrogen gas auxiliary device

Operation System Display

Walk-in Chamber for Extreme Temperature and Humidity Control 1

Application

It is applied to pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity
and the electrical products etc; The test Data result which is very useful for scientific research, product development and quality control sector to help them produce high quality anlysis report

Walk-in Chamber for Extreme Temperature and Humidity Control 2
