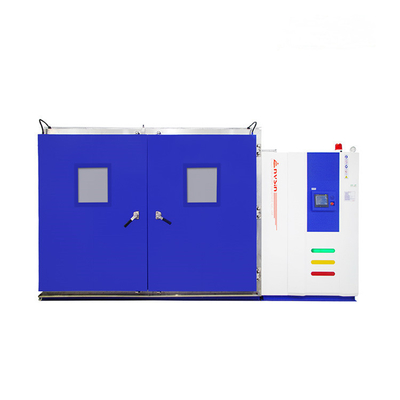

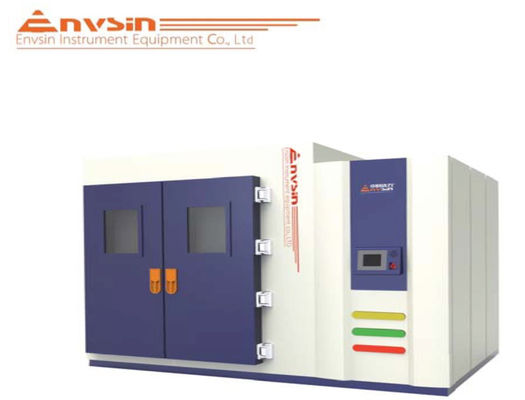

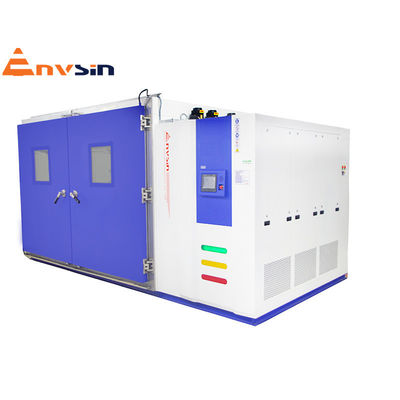

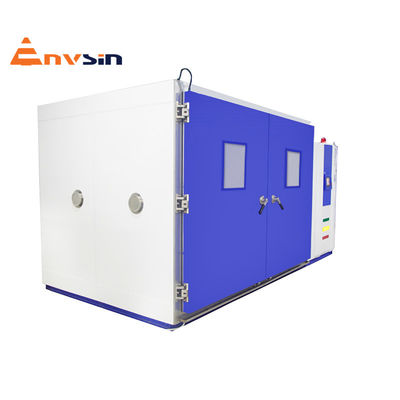

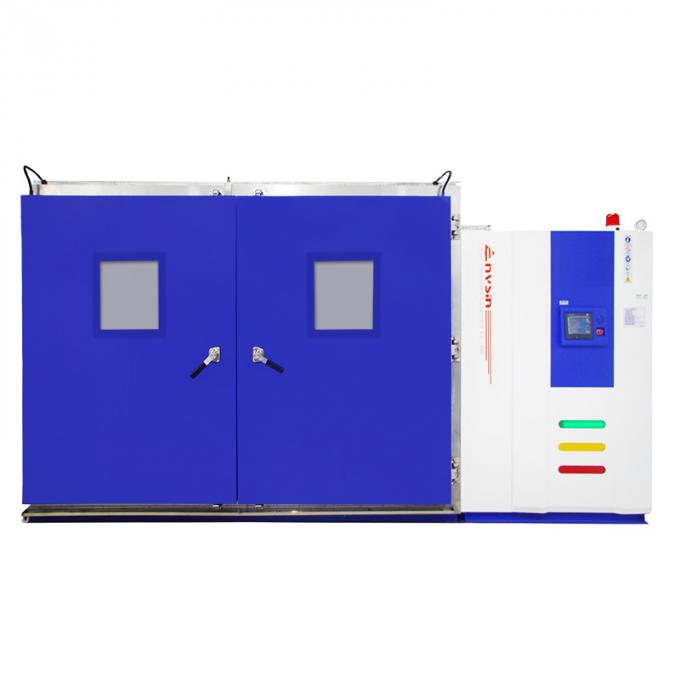

IEC 60068-2-1 High-Accuracy Walk-in Temperature and Humidity Test Chamber IEC 60068-2-2

Minimum Order Quantity : 1 Price : To Be Negotiated
Packaging Details : Wooden packing Delivery Time : 30-35 business days after received the payment
Payment Terms : L/C, T/T, Western Union Supply Ability : 25 per month
Place of Origin: China Brand Name: Envsin
Certification: CE and ISO Model Number: ETCZ18/4010

Detail Information

Product Name: Walk In Environmental Test Chamber Keyword: Walk In Chamber
Touch Screen: 7' Colour Touch Screen Display Warranty: 1 Year After Sales Service
Usage: Universal Testing Machine,Auto Testing Machine,environmental Simulation Testing Laboratory Walk In Climate Chamber Power: Electronic,380VAC±10% 50/60Hz,AC380V 50Hz,AC 3 Phase 380V 60/50Hz
Highlight:

JJF1101 Environmental Test Chamber

,

APP Mobility Management Environmental Test Chamber

,

JJF1101 Environmental Tester

Product Description

Optional APP Mobility Management Walk in Environmental Test Chamber



Application:

The test chamber is suitable for large size or a large number of machine products, parts, materials for high temperature, low temperature, high low temperature cycle test, and humid heat test. It is mainly used to simulate the product under the combined conditions of climate temperature and humidity or under the changing conditions of ambient temperature and humidity to detect whether the adaptation

ability and characteristics of the product change.



Standard:

Test methods for environmental test equipment for electrical and electronic products

-- Temperature test equipment

Test methods for environmental test equipment for electrical and electronic products

-- Humidity and heat test equipment

JJF1101-2003 environmental test equipment temperature, humidity calibration specification




Specifications:
Temperature Chambers ETZ8/4010 ETZ12/4010 ETZ17/4010 ETZ28/4010
Climate Chambers ECZ8/010 ECZ12/010 ECZ17/010 ECZ28/010

Temperature Climate Cycling Chambers

ETCZ8/4010

ETCZ12/4010

ETCZ17/4010

ETCZ28/4010

Test Space Volume (m³) 8 12 17 28
Test Space Dimension (mm) 2000W*2000D*2056H 2000W*2000D*3040H 2250W×2500D×3032H 2250W*2500D*5000
External Dimension (mm) 2240W*2240D*3800H 2240W*2240D*4780H 2490W*2740D*4900H 2490W*2740D*6860
Floor Load (N/m³)

30000

ETZ Series: -60,-40 / +80,+100,+150, +180 optional

Temp. Range (℃) (NoLoad) ECZ Series: 0 / +80,+100 optional
Humid. Range (%RH) ETCZ Series: -60,-40 / +80,+100,+150 optional

Dewpoint Temp. Range (℃)

15~95 (ETZ,ETCZ Series)

+4~+59 / +4~+95

Heating /Cooling Rate (IEC60068-3-5)

Level 1 (K/min) 4.5 3.7 2.7 1.7
Level 2 (K/min) 5.5 4.5 3.2 2.0
Temp. Constancy (K) ±0.1~±0.5 (IEC60068-3-5)
Temp.Homogeneity (K) ±0.5~±3.0 (IEC60068-3-5)
Humid. Constancy Entry (%RH) ±1.0~±5.0 (IEC60068-3-5) (ECZ, ETCZ Series)
Door Dimension Power(mm) 900W×1900H(Single door) , 2000W*2000H (Double door)
Power AC 380V±10%, 50HZ , 3/N/PE

Options Accessories

Standard Version

Independent sensors for specimen protection (NE60519-2.1993)

1 Entry port Φ100mm

1 Entry port Φ50mm

1 Silicon stopper for entry port

Drier filter for compressingair

Automatic water supply

Ultrasonic Humidifier

1 Water tank with 20L

Nitrogen gas auxiliary device

1 Water filter

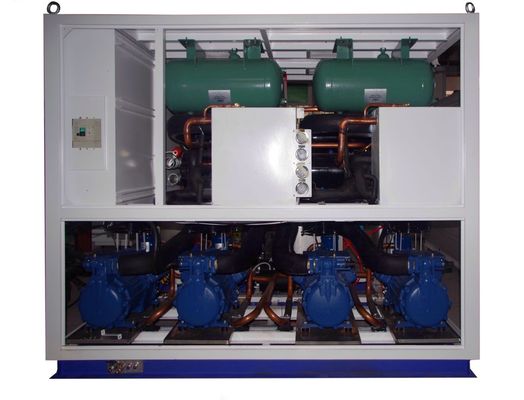

Water-Cooled unit



Spare parts package



E-management and cyber-software



Video monitor system



APP for mobility management
