Blue And White Color ISO Sand And Dust Test Chamber With Stability Test

Minimum Order Quantity : 1 Price : To Be Negotiated
Packaging Details : Wooden packing Delivery Time : 30-35 business days after received the payment
Payment Terms : L/C, T/T, Western Union Supply Ability : 25 per month
Place of Origin: China Brand Name: Envsin
Certification: CE and ISO Model Number: ESC500

Detail Information

Product Name: Sand And Dust Test Chamber Temp. Range (℃): Temp. Range (℃)
Humid. Range (%RH): 10~30 Time Control: 0~99h59m59s, Adjustable
Dust Particle Diameter (um): Dust Particle Diameter (um) External Dimension (mm): 1300W*1300D*1300H
After-sales Warranty: 1 Year Power: Electronic, AC230V±10% 50HZ 1/N/PE
Highlight:

Blue White Sand And Dust Test Chamber

,

GB4208 Sand And Dust Test Chamber

,

IEC60529 Stability Tester

Product Description

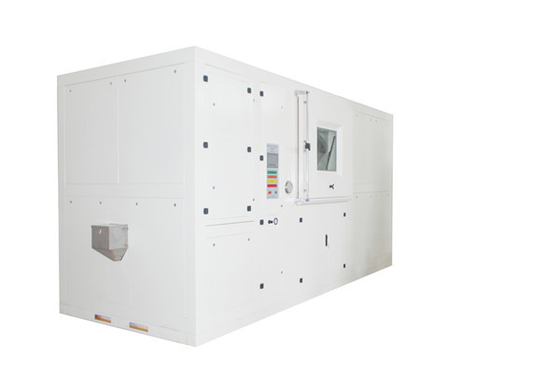

ISO Sand And Dust Test Chamber With Stability Test in blue and white color

The Sand Dust Test Chamber is suitable for detecting the sealing performance of the product's shell,mainly to simulate the damage caused by the sandstorm weather to locks,automobile and motorcycle parts,seals,power meters and other products.

Blue And White Color ISO Sand And Dust Test Chamber With Stability Test 0



Products Features:
• Accept customized design requirements.
• Properties and applications meet the military and industry standards.
• 7'' touch screen display and intelligent software for easy and comfortable operation.
• Advanced rotary blowing design to prevent dust from backflflow.
• Automatic control the amount of dust/sand and wind to meet the standards of tests.
• Dynamic adjustment temperature control system: rapid and stable control of test chambers' temperature.
• Intelligent function: automatically add and recycle sand/dust.
• Independent control of temperature and humidity ensures a stable testing.
• Fashionable design of modular construction.
• Observation window in testing space with a dust wiper for real-time monitoring.
• Optional APP mobility management.
• Intelligent and independent protection design for overload, overheat, power supply abnormity, overvoltage,
component malfunction monitoring.
• Optional remote assist service function and teaching CDs.

Specifications:
Model ESC500 ESC800 ESC1000 ESC1500
Sample holder Dimension (mm) 785*785 790*990 980*980 980*1480
Test Space Dimension (mm) 800*800*800 800*1000*1000 1000*1000*1000 1000*1500*1000
Temp. Range (C°) RT +20~+80 adjustable

Selective Dustproof

IP5X (Dustproof Test, increase or no negative pressure)

IP6X (Seal Test, increase negative pressure)

Standards GB4208-2008 / IEC60529:2001
Power AC230V ±10%, 50HZ, 3/N/PE
Model ESC-PRO Series
Temp. Range (℃) RT+20 ~ +80 Adjustable
Humid. Range (%RH) 10~30
Blowing methods Up and Down, Gyratory Cycle
Time control 0~99h59m59s, adjustable
Dust Blowing Test GJB-150.12-2009
Dust Concentration (g/m³ ) 10.6±7
Speed of Dust Blowing (m/s) 1.5~8.9
Dust Composition 97%~99%SiO2
Sand Blowing Test GJB-150.12-2009
Sand Concentration (g/m³) 2.2g±0.5; 1.1g±0.3; 0.18
Speed of Sand Blowing (m/s) 18~30
Sand Diameter (um) 150≤Sand Diameter ≤850
Dust-Falling Test GJB-150.12-2009
Dust-Falling Concentration (g/m³ ) 0.1~10.6±7
Dust Particle Diameter (um) 20≤Dust Particle Diameter≤150
External Dimension (mm) 1300W×1300D×1300H
Power AC230V±10%, 50HZ, 1/N/PE

Options Accessories:

Independent sensors for protection (NE60519-2.1993)

Entry ports for testing space

Power outlets for specimens

Spare parts package

E-management and cyber-software

APP for mobility management

Sand testing medium

Dust testing medium

Standard Version:

1 Stainless steel shelve

1 Screen sieve



Structural mode:

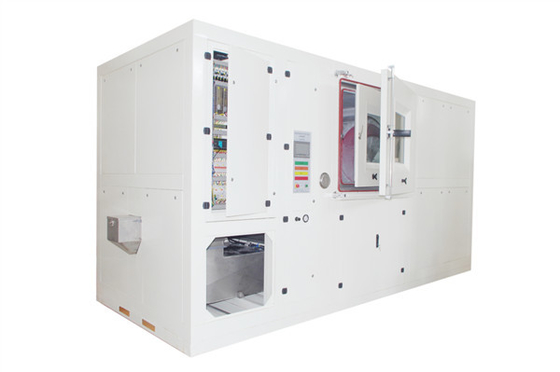

The test chamber adopts an integral structure with the working chamber as the main body. On the right side of the test box, an electronic control cabinet is set up, and an electronic control device and an operation panel device are built in. The back and bottom of the test box are equipped with an electromechanical cabin,four sets of internal circulating fans and four sets of sand and dust vibrators. Installation of vacuum interface device, sand heater, sample shelf, top-down circulating air inlet and outlet, double-door design for studio,observation window on door, etc.

Blue And White Color ISO Sand And Dust Test Chamber With Stability Test 1

The dust circulation mode of the equipment can enter from the bottom of the equipment, and then from both sides of the equipment into the inner box, which meets the IEC60068-2-68 dust test method. The following is a schematic diagram of the standard.

Blue And White Color ISO Sand And Dust Test Chamber With Stability Test 2

The bilateral view of the equipment is shown in the following figure. The controller is located on the right side of the equipment. There are two air outlet pipes under the rules behind it.
