Accelerated Aging Chamber for Material Fatigue and Degradation Testing

Minimum Order Quantity :	1	Price :	To Be Negotiated
Packaging Details :	Wooden packing	Delivery Time :	30-35 business days after received the payment
Payment Terms :	L/C, T/T, Western Union	Supply Ability :	25 per month

Place of Origin:	China	Brand Name:	Envsin
Certification:	CE and ISO	Model Number:	EWG2003

Detail Information
Product Name:	Aging Chamber	Test Space Volume(L):	270
Temp.Range(℃):	R.T+20~200	Temp.Constancy(℃):	±0.1~±0.8
Power:	AC380V±10%,50HZ,3/N/PE
Highlight:	200 degree uv light accelerated weathering tester , 270L uv light accelerated weathering tester , 270L high temperature test chamber

Product Description

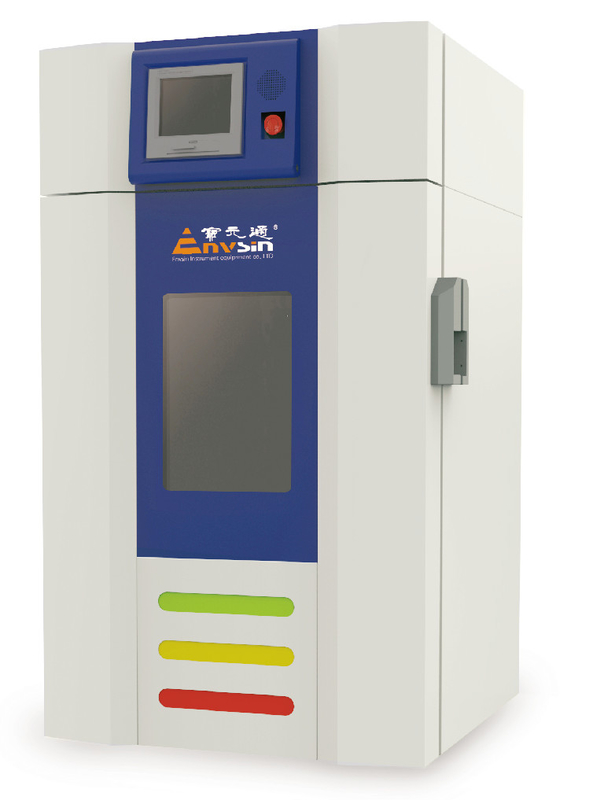

200 Degree 270L Aging Chamber For Laboratory Aging Chamber Testing Equipment

The aging chamber is suitable for the whole machine device, parts, materials for high temperature accelerated aging test, through the test of the equipment can be checked or evaluated product defects, to quickly find out the problem, provide effective means to solve the problem, fully improve production efficiency and product quality.

This aging chamber can only be used for the test of non-heat dissipation test samples. It is not recommended to test the heat dissipation test samples, because the temperature control of the test chamber is based on the ambient temperature and dynamic temperature compensation, the heat dissipation load will affectthe temperature compensation amount, so the high temperature control ability cannot be guaranteed!

Prohibits:

Testing or storage of inflammable, explosive, volatile and corrosive articles
The testing or storage of biological specimens with the characteristics of living organisms
Testing or storage of samples capable of particle radiation and strong electromagnetic interference
The testing or storage of specimens with high strength and large proportions of bulk expansion

Load Conditions:

The total mass of the load placed per cubic meter of studio volume shall not exceed 80KG
The load of each layer of test material placement rack shall not exceed 20KG
The load physical volume is not greater than 2/5 of the studio volume
At any section perpendicular to the wind direction of the inner circulation, the total area of the sample load should not be greater than 1/3 of the cross-sectional area of the studio in this direction. Oversized sample load will affect the air balance and smooth of the studio

Products Features:

• PID algorithm automatically controls chamber's temperature.
• Multiple independent sensors units providing multiple protections during tests.
• Special chamber-body structure design for high-temperature environment with heat insulation.
• Optional APP mobility management.
• Special air circulation system inside ensures testing accuracy.(Patented)

• Auto exhaust function against overheat.

Specifications:

Aging Chamber	EWG2003	EWG3003	EWG2006	EWG3006	EWG2010	EWG3010
Test Space Volume(L)	270		1000		600
Temp.Range(℃)	R.T+20~200	R.T+20~300	R.T+20~200	R.T+20~300	R.T+20~200	R.T+20~300
Temp.Constancy(℃)	±0.1~±0.8
Temp.Homogeneity(℃)	±0.5~±2.0(RT+20℃~+200℃),±1.5~±3.5(200℃~+300℃)
Temp.Deviation(℃)	±0.5~±2.0(RT+20℃~+200℃),±0.5~±2.0(200℃~+300℃)
Heat Up Time (min)	50(RT→+200℃),90(RT→+300℃)
Test Space Dimension(mm)	600W×500D×900H		850W×700D×1000H		1000W×1000D×1000H
External Dimension(mm)	1000W×780D×1710H		1250W×980D×1850H		1690W×1280D×1850H
Power	AC380V±10%,50HZ,3/N/PE

Aging Rooms	EWG25	EWG45	EWG65	EWG85	EWG100	EWG120
Test Space Volume(m³)	25	45	65	85	100	120
Temp.Range(℃)	RT+10~85
Temp.Constancy(℃)	±0.5~±1.0
Temp.Homogeneity(℃)	±1.5~±3.0
Temp.Deviation(℃)	±1.5~±3.0
HeatingRate(℃/min)	2℃/min on average
Power	AC380V±10%,50HZ,3/N/P

Options Accessories

• Independent sensors for specimen protection(NE60519-2.1993)
• 1 Entry port Φ100mm
• Nitrogen gas auxiliary device
• Spare parts package
• E-management and cyber-software
• Video monitor system
• APP for mobility management

Standard Version

• 1 Entry port Φ50mm
• 1 Silicon stopper for entry port
• 2 Stainless steel shelves
