Automotive Sand Dust Ingress Protection Test Chamber ISO 14688-1 Standard

Name: Automotive Sand Dust Ingress Protection Test Chamber ISO 14688-1 Standard
Brand: Envsin
SKU: ESC
Rating: 4.7 (198 reviews)

Brand Name:	Envsin
Model Number:	ESC
MOQ:	1
Payment Terms:	Western Union, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Environment Sand And Dust Test Chamber

Temp. Range:

RT +20~+80 Adjustable

Application:

Widely Range

Humid. Range:

10%RH~30%RH

Speed Of Sand Blowing:

18m/s~30m/s

External Dimension (mm):

1300W×1300D×1300H

Packaging Details:

Woden Case

Highlight:

18m/s dust test chamber

Envsin dust test chamber

Envsin temperature and humidity test chamber

Product Description

Automotive Sand Dust Ingress Protection Test Chamber ISO 14688-1 Standard

Functions:Sand and dust test chambers are specialized equipment designed to evaluate the resistance of products to dust ingress and simulate harsh environmental conditions such as desert or industrial environments. Key features include:
Dust Circulation: Simulates natural and artificial dust-laden environments using fine talc or silica particles.
Airflow Control: Ensures uniform dust distribution and controlled particle movement.
Ingress Protection (IP) Testing: Specifically designed to conduct IP5X and IP6X tests per IEC 60529 standards.
Temperature and Humidity Options: Some models provide additional climate control for combined stress testing.
Customizable Testing Programs: Allows flexible settings to replicate varying environmental conditions.
Applications:These chambers are widely used across industries to ensure product durability and reliability in dusty conditions:
Automotive: Testing headlights, taillights, filters, and electrical systems for dust ingress.
Electronics: Evaluating the dust resistance of enclosures, connectors, and electronic devices.
Aerospace and Defense: Ensuring operational integrity of navigation equipment, sensors, and other critical components.
Industrial Equipment: Testing outdoor machinery, motors, and control panels used in dusty environments.
Household Appliances: Evaluating vacuum cleaners, air purifiers, and outdoor appliances for dust resistance.

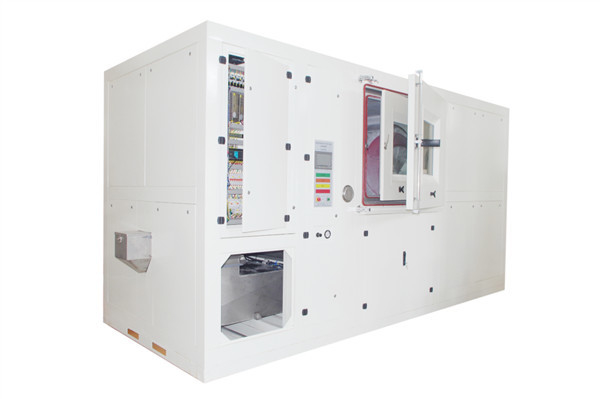

Automotive Sand Dust Ingress Protection Test Chamber ISO 14688-1 Standard 0

Specifications

Model	ESC500	ESC800	ESC1000	ESC1500
Sample holder Dimension(mm)	785×785	790×990	980×980	980×1480
Test Space Dimension(mm)	800W×800D×800H	800W×1000D×1000H	1000W×1000D×1000H	1000W×1500D×1000H
Temp. Range (C°)	RT +20~+80 adjustable
Selective Dustproof	IP5X (Dustproof Test, increase or no negative pressure) ; IP6X (Seal Test, increase negative pressure)
Standards	GB4208-2008 / IEC60529:2001
Power	AC230V ±10%, 50HZ, 3/N/PE
Model	ESC-PRO Series
Temp. Range (℃)	RT+20 ~ +80 Adjustable
Humid. Range (%RH)	10~30
Blowing methods	Up and Down, Gyratory Cycle
Time control	0~99h59m59s, adjustable
Dust Blowing Test	GJB-150.12-2009
Dust Concentration (g/m³ )	10.6±7
Speed of Dust Blowing (m/s)	1.5~8.9
Dust Composition	97%~99%SiO2
Sand Blowing Test	GJB-150.12-2009
Sand Concentration (g/m³)	2.2g±0.5; 1.1g±0.3; 0.18
Speed of Sand Blowing (m/s)	18~30
Sand Diameter (um)	150≤Sand Diameter ≤850
Dust-Falling Test	GJB-150.12-2009
Dust-Falling Concentration (g/m³)	0.1~10.6±7
Dust Particle Diameter (um)	20≤Dust Particle Diameter≤150
External Dimension (mm)	1300W×1300D×1300H
Power	AC230V±10%, 50HZ, 1/N/PE

Options	Standard Version
★ Independent sensors for protection (NE60519-2.1993)	★ 1 Stainless steel shelve
★ Entry ports for testing space	★ 1 Screen sieve
★ Spare parts package
★ E-management and cyber-software
★ Power outlets for specimens
★ APP for mobility management
