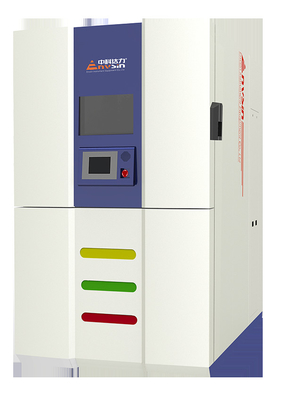

2-zone Theremal Shock Test Chamber -40℃~150℃ Consumer Products High-Low Temperature Test Chamber

Brand Name:	Envsin
Model Number:	ET
MOQ:	1
Payment Terms:	Western Union, T/T

Functions:

Thermal shock chambers are designed to test the durability and reliability of products by exposing them to sudden and extreme temperature changes. These chambers simulate real-world environmental conditions, ensuring products can withstand rapid thermal transitions without performance degradation. The equipment typically includes:

Rapid Temperature Change: Alternates between high and low temperatures in seconds.
Testing Automation: Programmable settings for repeated cycles.
Precision Control: High accuracy in temperature regulation to meet specific testing standards.

Applications:

Thermal shock chambers are widely used in various industries to test material integrity and product performance, such as:

Electronics and Semiconductors: Ensuring circuit boards, IC chips, and other components are resistant to temperature-induced stress.
Automotive: Testing engine components, sensors, and electronic systems under extreme conditions.
Aerospace: Evaluating materials and parts used in aircraft and spacecraft.
Battery and Energy: Assessing the safety and performance of lithium-ion and other batteries.
Consumer Products: Verifying product durability, especially for items subjected to varying climates.

Thermal shock chambers are essential for industries requiring high-reliability products, helping manufacturers improve quality, reduce risks, and meet international standards.

Model	ET450S2	ET4100S2	ET4200S2
	ET550S2	ET5100S2	ET5200S2
	ET650S2	ET6100S2	ET6200S2
Test Space Volume (L)	50	100	200
Test Zones	2
Hot chamber Temp. Range (℃ )	+50/+200
Cold chamber Temp. Range (℃)	-80/70	-80/70	-75/70
Temp. Constancy (℃ )	±0.3~±1.0
Temp. Homogeneity (℃)	±0.5~±2.0	±0.5~±2.0	±1.0~±2.0
Recovery Time (min)	<1(on Air Outlet)	<5(on Air Outlet)	<5(on Air Outlet)
Test Space Dimension (mm)	400W400D310H	500W500D400H	600W550D600H
External Dimension (mm)	900W2300D2160H	1000W2400D2250H	1200W2500D2200H
Temperature Range(℃)	-40/150	-40/150	-40/150
	-55/150	-55/150	-55/150
	-65/150	-65/150	-65/150
Cooling Methods	Air-Cooled Water-Cooled (IEC 60068-3-5)
Power	AC380V ±10%, 50HZ, 3/N/PE
Compliant with International Standards:
GB/T2423.22		Test Na BS 2011
MIL STD202F (Method 107G)		DIN40046, Test Na
IEC 60068-2-14		JESD22-A101-A

Options	Standard Version
☆ Independent sensors for specimen protection (NE60519-2.1993)	☆ 2Stainless Steel shelves
☆ Spare parts package
☆ E-management and cyber-software
☆ Video monitor system
☆ APP for mobility management
☆ 1 Entry port Φ100mm
☆ Nitrogen gas auxiliary device
