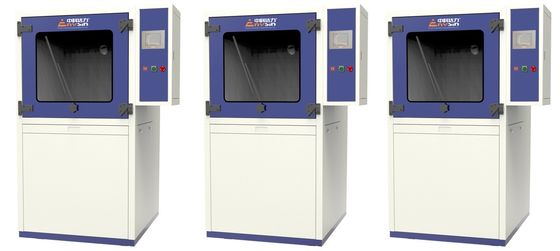

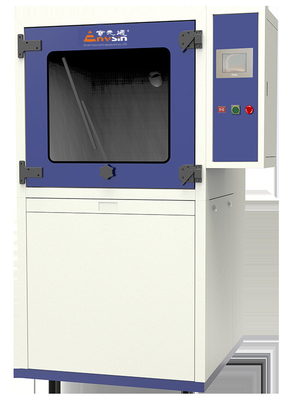

Subway Railway Environmental Simulation Sand&Dust Protection Rating Test Chamber Electronics Climatic Chamber
Contact Person : Jack He
Phone Number : +86-13842409825
WhatsApp : +8613842409825
Minimum Order Quantity : | 1 | Price : | $8,000.00 >=1 Sets |
---|---|---|---|
Delivery Time : | 35 days | Payment Terms : | T/T, Western Union, L/C, D/P |
Supply Ability : | 30 sets per month |
Place of Origin: | China | Brand Name: | Envsin |
---|---|---|---|
Certification: | CE ISO | Model Number: | ESC |
Detail Information |
|||
Product Name: | Dust And Sand Test Chamber | Warranty: | 12 Months |
---|---|---|---|
Function: | Climate Test | Certification: | CE |
Power Supply: | AC230V ±10%, 50HZ, 3/N/PE | Temperature Range: | RT +20C°~+80C° Adjustable |
Standard: | IEC 60529:2001 | ||
Highlight: | 230V small temperature chamber,IP6X small temperature chamber,IP6X humidity environmental chamber |
Product Description
★ Accept customized design requirements | ★ Properties and applications meet the military and industry standards |
★ Advanced rotary blowing design to prevent dust from backflow | ★ 7'' touch screen display and intelligent software for easy and comfortable operation |
★ Optional remote-assist service function and teaching CDs. | ★ Independent control of temperature and humidity ensures a stable testing |
★ Fashionable design of modular construction | ★ Observation window in testing space with a dust wiper for real-time monitoring |
Specifications
Model | ESC500 | ESC800 | ESC1000 | ESC1500 |
Sample holder Dimension(mm) | 785×785 | 790×990 | 980×980 | 980×1480 |
Test Space Dimension(mm) | 800W×800D×800H | 800W×1000D×1000H | 1000W×1000D×1000H | 1000W×1500D×1000H |
Temp. Range (C°) | RT +20~+80 adjustable | |||
Selective Dustproof | IP5X (Dustproof Test, increase or no negative pressure) ; IP6X (Seal Test, increase negative pressure) | |||
Standards | IEC60529:2001 | |||
Power | AC230V ±10%, 50HZ, 3/N/PE | |||
Model | ESC-PRO Series | |||
Temp. Range (℃) | RT+20 ~ +80 Adjustable | |||
Humid. Range (%RH) | 10~30 | |||
Blowing methods | Up and Down, Gyratory Cycle | |||
Time control | 0~99h59m59s, adjustable | |||
Dust Blowing Test | GJB-150.12-2009 | |||
Dust Concentration (g/m³ ) | 10.6±7 | |||
Speed of Dust Blowing (m/s) | 1.5~8.9 | |||
Dust Composition | 97%~99%SiO2 | |||
Sand Blowing Test | GJB-150.12-2009 | |||
Sand Concentration (g/m³) | 2.2g±0.5; 1.1g±0.3; 0.18 | |||
Speed of Sand Blowing (m/s) | 18~30 | |||
Sand Diameter (um) | 150≤Sand Diameter ≤850 | |||
Dust-Falling Test | GJB-150.12-2009 | |||
Dust-Falling Concentration (g/m³) | 0.1~10.6±7 | |||
Dust Particle Diameter (um) | 20≤Dust Particle Diameter≤150 | |||
External Dimension (mm) | 1300W×1300D×1300H | |||
Power | AC230V±10%, 50HZ, 1/N/PE |
Options | Standard Version |
★ Independent sensors for protection (NE60519-2.1993) | ★ 1 Stainless steel shelve |
★ Entry ports for testing space | ★ 1 Screen sieve |
★ Spare parts package | |
★ E-management and cyber-software | |
★ Power outlets for specimens | |
★ APP for mobility management | |
★ Sand testing medium | |
★ Dust testing medium |
Operation System DisplayApplication
