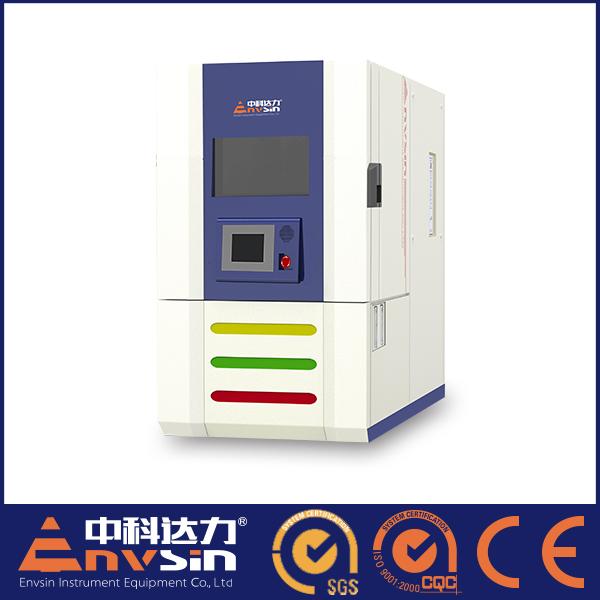

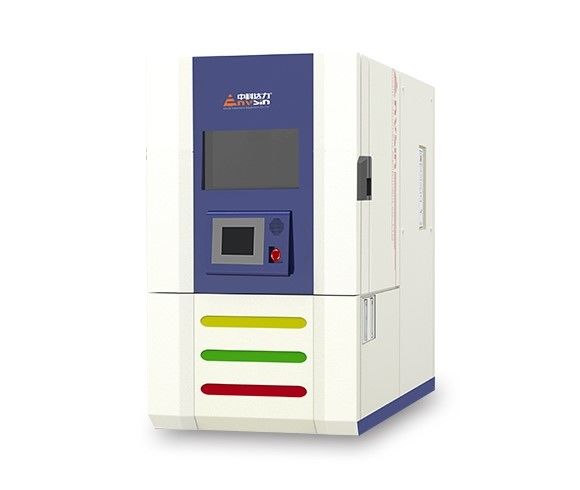

GJB150-86 Thermal Shock Chamber for Extreme Environmental Testing

Brand Name:	Envsin
Model Number:	EYC
MOQ:	1
Payment Terms:	Western Union, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Liquid To Liquid Thermal Shock Test Chamber

Warranty:

1 Year

Standard:

GJB150-86, GB2423-22

Usage:

Widely Used

Power:

Electronic

Cooling Methods:

Water-Cooled

Highlight:

200c Thermal Shock Test Chamber

GJB150-86 Thermal Shock Test Chamber

GJB150-86 temperature stability chamber

Product Description

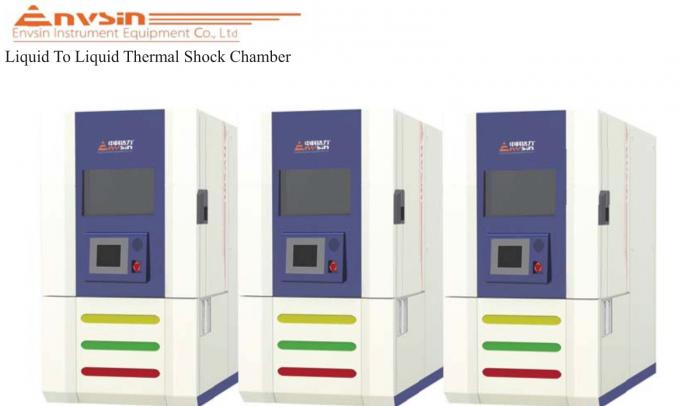

High Precision Temperature Liquid Thermal Shock Test Chamber With Two Zones

This test chamber is suitable for assessing the ability of the whole device, components, parts to withstand sudden changes in temperature. The temperature shock test can bring more understanding of the influence of cause by one or several temperature changes on the test sample.

Features

★ Fashionable design of modular construction	★ Customer-friendly software functions: intelligent power-recovery restoration, autoconnect on memory and auto-reset restart
★ 7'' colour touch screen display and 32bit control system	★ Intelligent and high-performance servo refrigerating control technology: energy saving and rapid heating/cooling rate.
★ Optional App mobility management	★ Optional network video monitoring and data synchronization
★ Customer-friendly design: observation window with a reality visualization for real-time monitoring	★ Automatic reminder of equipment maintenance plans and software of recording malfunction.
★ Special liquid medium meets tougher testing requirements and higher testing efficiency	★ Intelligent and Independent protection design for overload, overheat, power-supply abnormity, overvoltage, component malfunction monitoring
★ Sealed structure prevents medium from evaporating; special oil separating design for recycle	★ Optional remote-assist service function and teaching CDs

Specifications

Model	EYC603S2	EYC605S2
Test Space Volume (L)	2.6	4.5
Test Zones	2
Operation Mode	Horizontal and vertical automatic movement system between specimen basket and liquid bath
Liquid Medium	Fluorocarbon Oil
Hot Bath Temp. Range (℃ )	+70~+200	+70~+200
Cold Bath Temp. Range (℃)	-80~0	-80~0
Temp. Constancy (℃ )	±0.3~±1.0	±0.3~±1.0
Temp. Homogeneity (℃)	±0.5~±2.0	±0.5~±2.0
Test Space Temp. Range (℃ )	-65~0/+70~+150	-65~0/+70~+150
Specimen Transfer Time (sec)	10sec(Time of transfer between hot and cold baths)	10sec(Time of transfer between hot and cold baths)
Temp. Recovery Time (min)	Within 5 mins	Within 5 mins
Test Space Dimension (mm)	120W×120D×180H	150W×150D×200H
Inside Bath Dimension (mm)	250W×350D×400H	280W×380D×420H
External Dimension (mm)	1100W×1400D×2000H
Power	AC380V±10%,50HZ,3/N/PE
Cooling Methods	Water-Cooled
Standards	GJB150-86, GB2423-22, MIL-STD-883, MIL-STD-202

Options	Standard Version
☆ Independent sensors for specimen protection (NE60519-2.1993)	☆ Fluorocrbon oil
☆ Spare parts package	☆ Specimen basket
☆ E-management and cyber-software
☆ Video monitor system
☆ APP for mobility management
