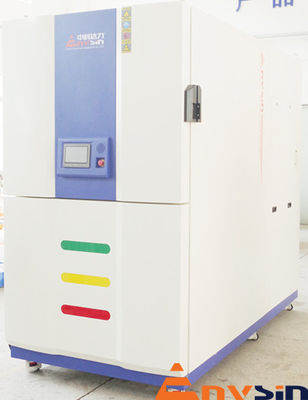

Thermal Shock Chamber for Rapid Temperature Change Testing

Minimum Order Quantity :	1	Price :	To be negotiated
Packaging Details :	Strong wooden case suitable for all types of long distance shipment	Delivery Time :	30-35 business days
Payment Terms :	L/C, T/T, Western Union	Supply Ability :	25 per month

Place of Origin:	China	Brand Name:	Envsin
Certification:	CE	Model Number:	ET5200S2

Detail Information
Product Name:	Thermal Shock Test Chamber	Application:	Thermal Shock Test
Test Volume:	200L	Internal Size:	600550600mm
External Size:	1310mm2700mm2350mm	Power:	AC380V±10%,50Hz±1
Highlight:	380V Thermal Shock Test Chamber , 200L Thermal Shock Test Chamber , 200L battery test chamber

Product Description

Long Defrosting Cycles Thermal Shock Test Chamber 2 Zones Thermal Shock Room

The thermal shock test hamber suitable for examining the ability of the whole machine, components, parts and other components to withstand sharp changes in temperature. The temperature impact test can understand the impact of the test sample once or repeatedly

due to temperature changes. The main parameters affecting the temperature change test are the high and low temperature values in the range of temperature change, the holding time of the sample at high and low temperature, and the number of cycles of the test, etc.

The thermal shock test chamber is used for testing non-heat dissipation test samples and low heat dissipation test samples. For the test

of heat dissipation test samples, the heat dissipation power should not exceed the temperature control cooling capacity of the refrigeration system of the test chamber, otherwise it will affect the temperature conversion speed and capacity of the thermal shock test chamber. It

is recommended that the heat dissipation of the test samples be less than 300W.

Specifications:

Model:Thermal Shock Test Chamber	ET450S2	ET4200S2
	ET550S2	ET5200S2
	ET650S2	ET6200S2
Test Space Volume(L)	50	200
Test Zones	2
Hot Chamber Temp.Range(℃)	+50/+200
Cold Chamber Temp.Range(℃)	-80/+70	-75/+70
Temp. Constancy(℃)	±0.3-±1.0
Temp.Homogeneity(℃)	±0.5-±2.0	±1.0-±2.0
Recovery Time(min)	<1(on Air Outlet)	<5(on Air Outlet)
Test Space Dimension(mm)	400W400D310H	600W550D600H
External Dimension(mm)	900W2300D2160H	1200W2500D2200H
Temp. Range(℃)	-40/+150	-40/+150
	-55/+150	-55/+150
	-65/+150	-65/+150
Max. Specimens Weight (kg)	15	50
Cooling Methods	Air-Cooled	Water-Cooled(IEC 60068-3-5)
Power	AC380V±10%,50HZ,3/N/PE
Compliant with International Standards: GB/T2423.22 MIL STD 202F (Method 107G) IEC 60 068-2-14 Test Na BS 2011 DIN 40046,Test Na JESD22-A101-A		Options Accessories: Independent sensors for protection (NE60519-2.1993) 1 Entry port Φ100mm Nitrogen gas auxiliary device Spare parts package E-management and cyber-software Video monitor system APP for mobility management

Standard:

GB/T2423.22
MIL STD 202F,method 107G
IEC 60068-2-14,Test Na
BS 2011
DIN 40046,Test Na
JESD22-A101-A

Structure:

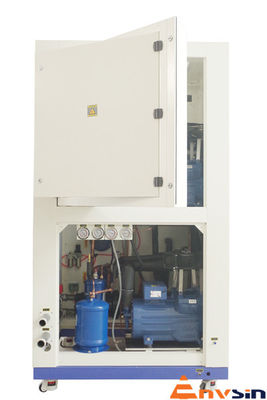

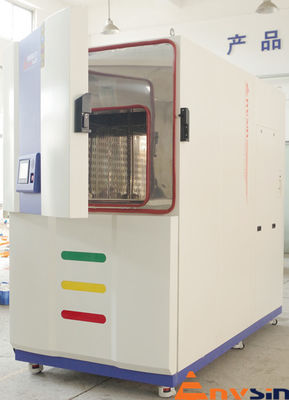

Integral, the top is preheating tank (with test chmaber door), the bottom is precooling tank, the studio is preheating tank and precooling.The mobile metal pod is between the slots, the electric control cabinet and the refrigeration unit are behind, and the main control interface is located in the test.Square before the inspection door. The gate is opened in the width direction. Each slot area is equipped with an

independent circulating air duct system: wind motor,Centrifugal fan blade, vane.

Composition:

Outer material: cold rolled steel plate + double-sided electrostatic spraying process

Inner material: SUS304 high-grade stainless steel plate

Insulation material: rigid polyurethane foam insulation layer

Thermal Shock Chamber for Rapid Temperature Change Testing 0
