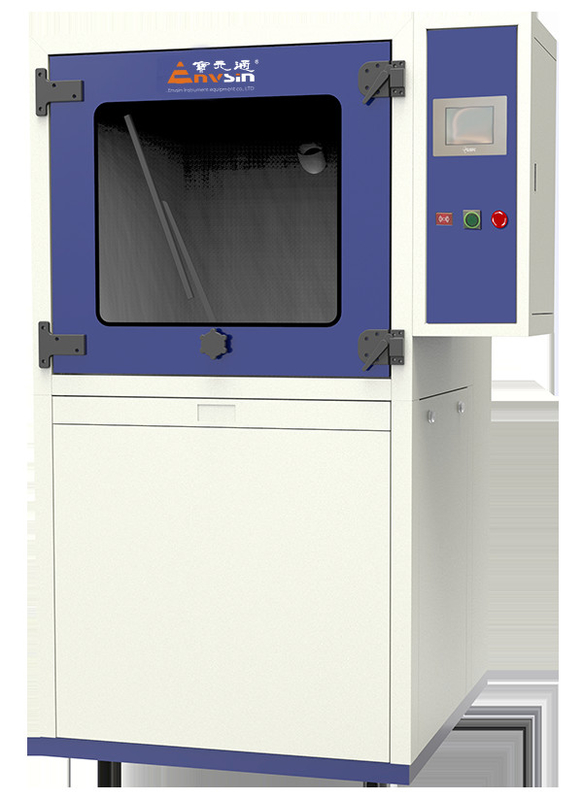

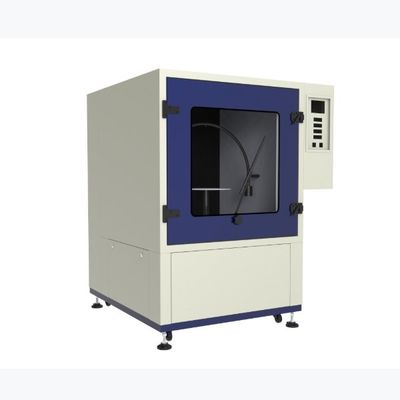

1000L Steel Blowing Sand And Dust Test Chamber With IEC Standard

Brand Name:	Envsin
Model Number:	ESC1000
MOQ:	1
Price:	To Be Negotiated
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	25 per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE and ISO

Product Name:

Sand And Dust Test Chamber

Volume:

1000L

Standard:

IP5X IP6X

Internal Size:

1000×1000×1000mm

External Size:

1120mmx1230mmx1860mm

Temp. Range:

RT+10℃～80℃

Test Time:

0～999H59M59S, Set Continuous,cycle Blowing Dust

Sand And Dust Concentration:

2g / M ³～10g / M ³

Dust:

Arizona Dust A1

Dust Vibration:

0 ～ 999H59M59S Arbitrary Set,vibration Time And Rest Time Alternate Progress

Dust Airflow:

0.5～15m /s Adjustable

Interior Material:

SUS304 Stainless Steel

Packaging Details:

Well packed in strong wooden case suitable for all types of long distance shipment

Supply Ability:

25 per month

Highlight:

IEC blowing sand and dust test chamber

1000L blowing sand and dust test chamber

1000L small environmental test chamber

Product Description

1000L Steel Blowing Sand And Dust Test Chamber With IEC Standard

The IP5X / IP6X sand and dust test chamber is used to simulate the natural environment or human factors designing IP5X and IP6X

protection class of sand and dust test. Applicable to the testing for seal performance of electronic products, vehicle parts,components,

other seals and other mechanical and electrical equipment during storage, transport under sand and dust condition.IP5X / IP6X sand and

dust test chamber conform to IEC60529,GB4208,ISO20653and other standards.

Structure:

System structure diagram

1000L Steel Blowing Sand And Dust Test Chamber With IEC Standard 0

Structure Mode:

Monolithic construction. Working space is main body.Control cabinet is in the right side:build-in electric control device and operator panel device.
Sand and Dust Test Chamber’s back and bottom part set electrical cabin:build-in vacuum unit,dust pump and Dust vibrator.Internal working space: Vacuum interface device,dust heater,sample shelf, dust circulating air duct, door and so on.

Composition:

Exterior material: Both sides static coated cold rolled steel

Interior material: SUS304 Stainless steel

Insulation material: Rigid polyurethane

Specifications:

Model:Sand and dust test chamber	ESC500	ESC800	ESC1000	ESC1500
Sample holder Dimension (mm)	785*785	790*990	980*980	980*1480
Test Space Dimension (mm)	80088008800	80081000*1000	100010001000	100015001000
Temp. Range (C°)	RT +20~+80 adjustable
Selective Dustproof	IP5X (Dustproof Test, increase or no negative pressure) IP6X (Seal Test, increase negative pressure)
Standards	GB4208-2008 / IEC60529:2001
Power	AC230V ±10%, 50HZ, 3/N/PE

Options Accessories:	Standard Version:
Independent sensors for protection (NE60519-2.1993)	1 Stainless steel shelve
Entry ports for testing space	1 Screen sieve
Power outlets for specimens
Spare parts package
E-management and cyber-software
APP for mobility management
Sand testing medium
Dust testing medium

More Details:

1. Chamber door:

Single door with hinges
Alloy button knob
Large size glass window
Manual scraping cleaners

2.Sample shelves

Chamber’s bottom part:Stainless steel grid sample racks Carrying.

3. Heater	4. Vacuum interface
Fins alloy electric heater,heating sand and dust to dehumidify.	Metal thread locking type vacuum interface for easy connection between tube and test samples.

5. Cycling dust channels	6. Control cabinet
Metal thread locking type vacuum interface for easy connection between tube and test samples.	Mini Control cabinet is at the right side of working room, with lock type door butt plate. Build-in electrical device, controller, driver and so on. Control panel is in front of cabinet.

7. Control panel	8. Vacuum unit
Human-Computer Interaction display screen Power switch,emergency stop switch and alarm device	Mechanical vacuum pump,Pressure sensing device,Gas Flow meter,Pressure regulating valves and air filter

9. Bottom dust emission	10. Sand and dust moving device
In the bottom of chamber,drawer model dust emission box,to collect and replace sand and dust.	In circulation channel ,raise dust pump blows sand in cycle operation . In return dust port,dust vibration pump is to prevent sand and dust’s precipitation and condensate.
