Electronics Environmental Test Chambers Product Lifecycle Testing Chambers

Minimum Order Quantity : 1 Packaging Details : Wooden
Delivery Time : 2Months~3Months Payment Terms : L/C, T/T
Supply Ability : 100pcs
Place of Origin: China Brand Name: Envsin
Certification: CE Model Number: EWG

Detail Information

Item Name: Accelerated Aging Test Chamber Warranty: 12 Months
Function: Constant High-temperature Accelerated Aging Test Power: AC380V 50HZ
Temp. Range: 20℃~200℃/30℃~300℃ Heating Rate: 2℃/min On Average
Highlight:

120m3 uv aging chamber

,

Envsin uv aging chamber

,

Envsin environmental test chamber

Product Description

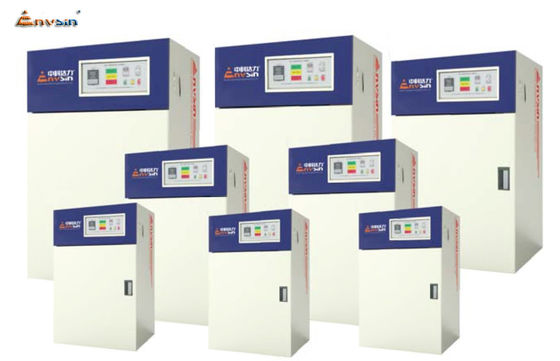

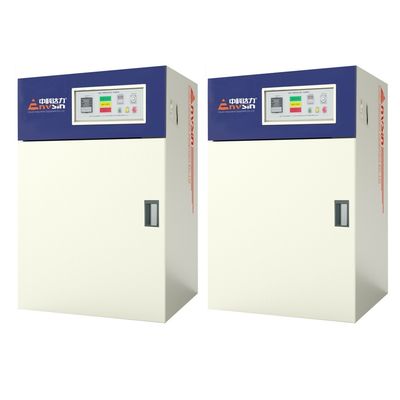

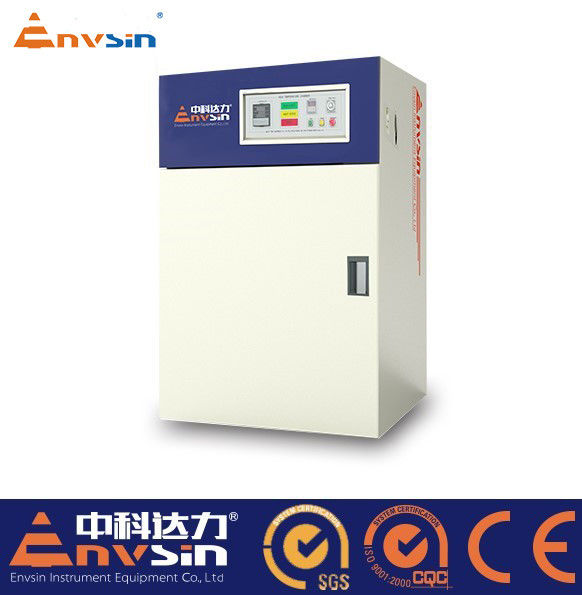

Electronics Environmental Test Chambers Product Lifecycle Testing Chambers

A High-Temperature Aging Test Chamber is designed to simulate the effects of prolonged exposure to high temperatures on materials, products, or components. The chamber maintains a stable, controlled high-temperature environment for testing the durability, stability, and performance of materials and finished goods over extended periods. This test helps assess how products perform when exposed to conditions they may face during their lifecycle, such as extreme temperatures and long-term use.



Key Features:

  1. Precise Temperature Control: The chamber provides consistent high temperatures, often exceeding 100°C, with advanced temperature regulation for accurate simulation.
  2. Stable and Uniform Environment: Ensures that the temperature is evenly distributed throughout the test area, providing reliable and repeatable results.
  3. Advanced Safety Mechanisms: Includes built-in features such as over-temperature protection, alarms, and fail-safe mechanisms to ensure safe operation.
  4. Energy Efficiency: Designed to minimize energy consumption while maintaining the required temperature conditions.
  5. Programmable Control System: Allows users to set specific test durations, temperature ranges, and other parameters according to their needs. Electronics Environmental Test Chambers Product Lifecycle Testing Chambers 0



Applications:

  1. Material Aging Testing: Used to test the aging properties of rubber, plastic, coatings, and other materials that may degrade over time due to heat exposure.
  2. Electronics Testing: Useful for testing the performance of electronic components and devices, ensuring that they can withstand the heat of real-world operating environments.
  3. Automotive Industry: Helps evaluate the long-term durability of automotive parts, such as seals, gaskets, and interior materials, under high-temperature conditions.
  4. Battery Testing: For assessing the stability and lifespan of batteries, especially in electric vehicles, by simulating prolonged high-temperature exposure.
  5. Consumer Electronics: Used in testing the thermal resilience of products like smartphones, laptops, and other consumer electronics that may be exposed to high temperatures during use.
  6. Aerospace and Defense: Ensures that components meet stringent high-temperature performance standards for use in aircraft, spacecraft, and defense equipment.
Specifications
Aging Chambers EWG2003 EWG3003 EWG2010 EWG3010
Test Space Volume (L) 270 1000
Temp. Range (℃) R. T+20~200 R. T+20~300 R. T+20~200 R. T+20~300
Temp. Constancy (℃) ±0. 1~±0. 8
Temp. Homogeneity (℃) ±0. 5~±2. 0 (RT+20℃~+200℃) , ±1. 5~±3. 5 (200℃~+300℃)
Temp. Deviation (℃) ±0. 5~±2. 0 (RT+20℃~+200℃) , ±0. 5~±2. 0 (200t~+300℃)
Heat Up Time (min) 50 (RT→+200℃) , 90 (RT→+300℃)
Test Space Dimension (mm) 600Wx500Dx900H 850Wx700Dx1000H
External Dimension (mm) 1000Wx780Dx1710H 1250Wx980Dx1850H
Power AC380V±10%, 50HZ, 3/N/PE
Aging Rooms EWG25 EWG45 EWG100 EWG120
Test Space Volume (m3) 25 45 100 120
Temp. Range (℃) RT+10~85
Temp. Constancy (℃ ) ±0. 5~±1. 0
Temp. Homogeneity (℃) ±1. 5~±3. 0
Temp. Deviation (℃) ±1. 5~±3. 0
Heating Rate (℃/min) 2℃/min on average
Power AC380V±10%, 50HZ, 3/N/PE



Electronics Environmental Test Chambers Product Lifecycle Testing Chambers 1
