Subway Railway Environmental Simulation Sand&Dust Protection Rating Test Chamber Electronics Climatic Chamber

Minimum Order Quantity : 1 set Price : $4500 >=1 Set
Delivery Time : 35 work days Payment Terms : L/C, D/A, D/P, T/T, Western Union
Supply Ability : 30 sets per month
Place of Origin: Guangdong Brand Name: Envsin
Certification: ISO CE Model Number: ESC

Detail Information

Temperature Range: RT+20 ℃~80 ℃ Humidity Range: 10 %~30 %
Warranty: 1 Year Power: AC 230V±10%, 50Hz, 1/N/PE
Dust Concentration: 10.6±7 G/m³ Color: Blue White
Highlight:

IP5X Sand And Dust Test Chamber

,

230V Sand And Dust Test Chamber

,

IP5X constant temperature humidity chamber

Product Description

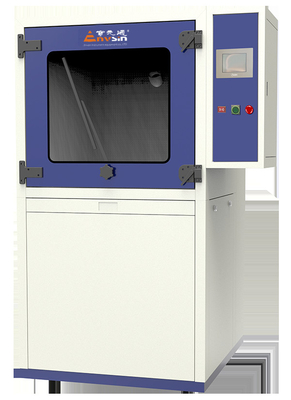

Sand and Dust Test Chamber
The Sand Dust Test Chamber is suitable for detecting the sealing performance of the product's shell,mainly to simulate the damage caused
by the sandstorm weather to locks,seals,power meters and other products.
Our Service

• Be able to provide a complete testing solution

• Preferential supplier of Apple, Cisco and Huawei in China

• Perfect systematic pre-sale and after-sale technical support
Subway Railway Environmental Simulation Sand&Dust Protection Rating Test Chamber Electronics Climatic Chamber 0
Features
• Accept customized design requirements.
• Properties and applications meet the military and industry standards.
• intelligent software for easy and comfortable operation.
• Automatic control the amount of dust/sand and wind to meet the standards of tests.
• Dynamic adjustment temperature control system: rapid and stable control of test chambers' temperature.
• Independent control of temperature and humidity ensures a stable testing.
• Fashionable modular design.
• Observation window in testing space with a dust wiper for real-time monitoring.
• Intelligent and independent protection design for overload, overheat, power supply abnormity, overvoltage, component malfunction monitoring.

Products Performance
Model
ESC 500
ESC 800
ESC 1000
ESC 1500
Sample holder Dimension (mm)
785×785
790×990
980×980
980×1480
Test Space Dimension (mm)
800W×800D×800H
800W×1000D×1000H
1000W×1000D×1000H
1000W×1500D×1000H
Temp. Range (C°)
RT +20~+80 adjustable
Selective Dustproof
IP5X (Dustproof Test, increase or no negative pressure)
IP6X (Seal Test, increase negative pressure)
Standards
 IEC60529:2001
Power
AC 230V ±10%, 50Hz, 3/N/PE
Model
ESC-PRO Series
Temp. Range ( ℃)
RT+20 ~ +80 Adjustable
Humid. Range (% RH)
10~30
Blowing methods
Up and Down
Time control
0~99h59m59s, adjustable
Dust Blowing Test
GJB-150.12-2009
Dust Concentration ( g/m³ )
10.6 ± 7
Speed of Dust Blowing (m/s)
1.5~ 8.9
Dust Composition
97%~99% SiO2
Sand Blowing Test
GJB-150.12-2009
Sand Concentration ( g/m³)
2.2g±0.5; 1.1g±0.3; 0.18
Speed of Sand Blowing ( m/s)
18~30
Sand Diameter (um)
150~850
Dust-Falling Test
GJB-150.12-2009
Dust-Falling Concentration ( g/m³ )
0.1~10.6±7
Dust Particle Diameter ( um)
20~150
External Dimension ( mm)
1300W×1300D×1300H
Power
AC 230V±10%, 50Hz, 1/N/PE

Options Accessories

• Independent sensors for protection (NE60519-2.1993)
• Entry ports for testing space
• Power outlets for specimens
• Spare parts package
• E-management and cyber-software
• APP for mobility management
Quality Control
Subway Railway Environmental Simulation Sand&Dust Protection Rating Test Chamber Electronics Climatic Chamber 1
Subway Railway Environmental Simulation Sand&Dust Protection Rating Test Chamber Electronics Climatic Chamber 2
Subway Railway Environmental Simulation Sand&Dust Protection Rating Test Chamber Electronics Climatic Chamber 3
Subway Railway Environmental Simulation Sand&Dust Protection Rating Test Chamber Electronics Climatic Chamber 4
Subway Railway Environmental Simulation Sand&Dust Protection Rating Test Chamber Electronics Climatic Chamber 5
Subway Railway Environmental Simulation Sand&Dust Protection Rating Test Chamber Electronics Climatic Chamber 6
Subway Railway Environmental Simulation Sand&Dust Protection Rating Test Chamber Electronics Climatic Chamber 7
Subway Railway Environmental Simulation Sand&Dust Protection Rating Test Chamber Electronics Climatic Chamber 8
Subway Railway Environmental Simulation Sand&Dust Protection Rating Test Chamber Electronics Climatic Chamber 9
Subway Railway Environmental Simulation Sand&Dust Protection Rating Test Chamber Electronics Climatic Chamber 10
Subway Railway Environmental Simulation Sand&Dust Protection Rating Test Chamber Electronics Climatic Chamber 11

Standard Version

1 Stainless steel shelve
• 1 Screen sieve
