Envsin 12m3 Walk In Environmental Test Chamber Computer Control

Name: Envsin 12m3 Walk In Environmental Test Chamber Computer Control
Brand: Envsin
SKU: ETZ
Price: 300000 USD
Availability: InStock
Rating: 4.5 (174 reviews)

Minimum Order Quantity :	1 set	Price :	$300000 >=1 Set
Delivery Time :	35 work days	Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	5 sets per month

Place of Origin:	Guangdong	Brand Name:	Envsin
Certification:	ISO CE	Model Number:	ETZ

Detail Information
Power:	380VAC±10% 50/60Hz 3/N/PE	Warranty:	12 Months
Heating And Cooling Rate:	Heating 3℃/min, Cooling 1℃/min (can Be Customized )	Temperature Range:	(-40℃/-60℃～80℃/100℃/150℃/180℃) And Other Customized
Test Volume:	8m3,12m3,17m3 And Other Customized Volume	Color:	Blue/White
High Light:	Envsin Walk In Environmental Test Chamber , 12m3 Walk In Environmental Test Chamber , Envsin temperature and humidity chamber

Product Description

Walk-in Temperature Test Chambers Overview

This test chamber is suitable for high temperature, low temperature and hot-humid or temperature and humidity cycling test of the whole units, parts and materials.

Features

Ø Globally advanced modular design	Ø Special anti-condensation function to protect specimens during climate testing.
Ø 7'' colour touch screen display and 32bit control system	Ø Intelligent and high-performance servo refrigerating control technology: energy saving and rapid heating/cooling rate
Ø Optional App mobility management	Ø Automatic water supply with ultrapure filter devices
Ø Customer-friendly design: observation window with a reality visualization for real-time monitoring	Ø Automatic reminder of equipment maintenance plans and software of recording malfunction
Ø Long defrosting cycles:over 700h's running before defrosting	Ø Unique operation mode: make testing area's temperature back to room temperature after tests are finished
Ø 4 load power outlets for specimens with programmable control for protection	Ø Unique design: no-need defrosting during long period operation in low temperature

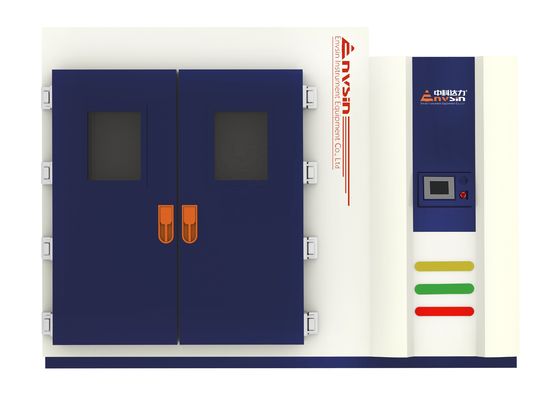

High Precision Temperature and Climate humidity Walk-in Test Chamber 1

Specifications

Temperature Chambers	ETZ 8/4010	ETZ 17/4010	ETZ 28/4010
Climate Chambers	ECZ 8/010	ECZ17/010	ECZ 28/010
Temperature Climate Cycling Chambers	ETCZ 8/4010	ETCZ 17/4010	ETCZ 28/4010
Test Space Volume (m3)	8	17	28
Test Space Dimension ( mm)	2000W2000D2056H	2250W2500D3032H	2250W2500D5000H
External Dimension ( mm)	2240W2240D3800H	2490W2740D4900H	2490W2740D6860H
Floor Load ( N/m2)	30000
Temperature Range (℃) ( No Load)	ETC series:-60,-40/+80,+100,+150,+180 optional
	ECZ Series: 0/+80,+100 optional
	ETC Series: -60,-40/+80,+100,+150 optional
Humid. Range( %RH)	15~95(ETZ, ETCZ Series)
Dewpoint Temp. Range ( ℃)	+4~+59,+4~+95

Heating/Cooling Rate (IEC60068-3-5)
LEVEL 1(K/MIN)	4.5	4.5	2.7	2.7	1.7	1.7
LEVEL 2(K/MIN)	5.5	5.5	3.2	3.2	2.0	2.0
Temperature. Constancy (K)	±0.1~ ±0.5 ( IEC60068-3-5)
Temperature. Homogeneity (K)	±0.5 ~ ±3.0 ( IEC60068-3-5)
Humid. Constancy Entry (%RH)	±1.0 ~ ±5.0 ( IEC60068-3-5) (ECZ, ETCZ Series)
Door Dimension Power (mm)	900W1900H(Single Door), 2000W2000H (Double Door)
Power	AC380V±10%,50Hz,3/N/PE

Options	Standard Version
☆ Independent sensors for specimen protection (NE60519-2.1993)	☆ 1 Entry port Ø 100mm
☆ Spare parts package	☆ 1 Silicon stopper for entry port
☆ E-management and cyber-software	☆ Automatic water supply
☆ Video monitor system	☆ Water tank with 20L
☆ APP for mobility management	☆ Water filter
☆ 1 Entry port Ø 50mm

Operation System Display

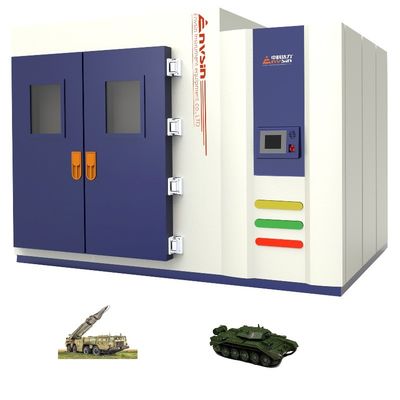

High Precision Temperature and Climate humidity Walk-in Test Chamber 2

Application

It is applied to pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity
and the electrical products etc; The test Data result which is very useful for scientific research, product development and quality control sector to help them produce high quality anlysis report

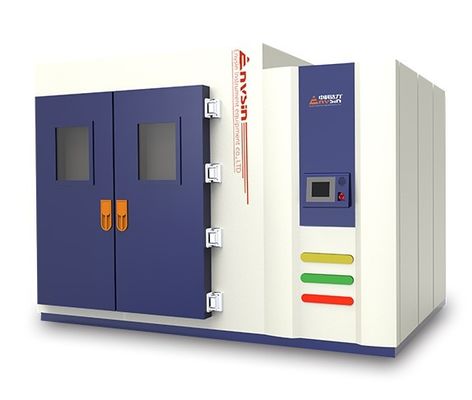

High Precision Temperature and Climate humidity Walk-in Test Chamber 3
