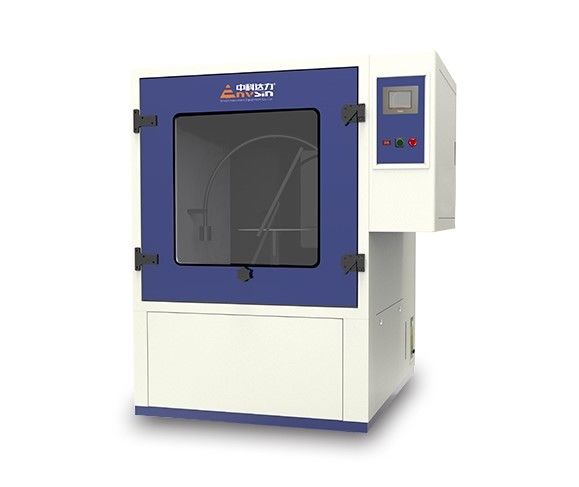

Compact Rain Test Chamber for Laboratory Waterproofing

Brand Name:	Envsin
Model Number:	EFS-PRO
MOQ:	1
Price:	$15,000.00 >=1 Sets
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Spray And Rain Test Chamber

Function:

Climate Test

Application:

Widely Use

Power Supply:

AC380V 50HZ

Temp. Range:

RT+10~+55

Standard:

IEC60529

Highlight:

IEC60529 Rain Spray Test Chamber

Envsin Rain Spray Test Chamber

IEC60529 quv machine

Product Description

Spray and Rain Test Chambers Overview

This test chamber is suitable for shell protection of external lighting, signaling devices and automotive lamp. in order to achieve the waterproof performance of various products, it can provide realistic analog of various environments including water spray and rain spray that electronic products and their component may be subjected to during transporting and using

Features


			★ Accept customized design requirements
			★ Properties and applications meet the military and industry standards

			★ Used-water designed recyclable through filtering.

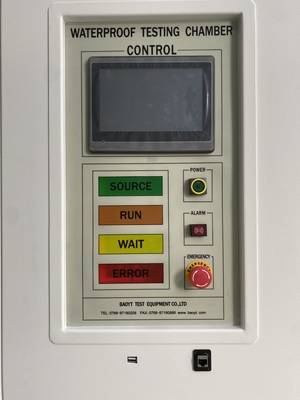

			★ 7'' touch screen display and intelligent software for easy and comfortable operation.

			★ Optional remote-assist service function and teaching CDs.

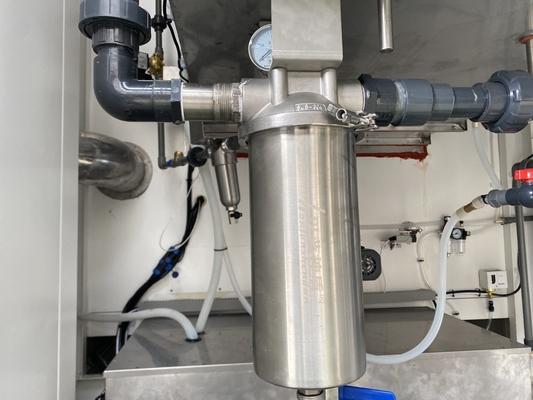

			★ Automatic water supply with ultrapure filter devices (optional) ; water shortage reminder function

			★  Fashionable design of modular construction.
			★ Optional observation window in testing space with a dust wiper for real-time monitoring

			★ Durable structure with sealed and heat insulation
			★ Optional network video monitoring and data synchronization

Specifications


			Model
			EFS-PRO Series

			Standards
			GJB-150. 8-2009

			Spray Water Test:
			Water-dripping Test:

			Temp. Range (℃):
			RT+10~+55
			Temp. Range (℃):
			RT+10~+55

			Spray Intensity (cm/h):
			10~20 (Rotating shelf spray rate; Programmable)
			Dripping Area (mm):
			760x760, Dripping Platform adjustable

			Water Drop Diameter (mm):
			0. 5~4. 5
			Water Drop Diameter (mm):
			0. 5~4. 5, Dripping Hole Distance 25. 4

			Air Speed Range (m/s):
			5~18 (Rotating Shelf entry horizontal air speed)
			Rain Rate (L/m2.h):
			≥280±300

			Spray Time (min):
			Programmable (0-999) ;auto-controlled and cycled
			Distance (m):
			Dripping Distance 1

			Warm Up Range (C):
			Water Temp. +10 (Max +55)
			Water Supply:
			Continuously Pump Auto-Supply,controlled

			Rotating Shelf Dimension (mm)
			φ800, Rotating Shelf speed adjustable
			Dripping Time (min):
			0~999,programmable

			Specimens weight (kg):
			≥65
			Specimens Dimension (mm):
			Max. Dimension:φ700x700

			Water-Proof Test:

			Water Spray Pressure (KPa):
			≥276
			Water Supply Method:
			Water Pump Supply Continuously

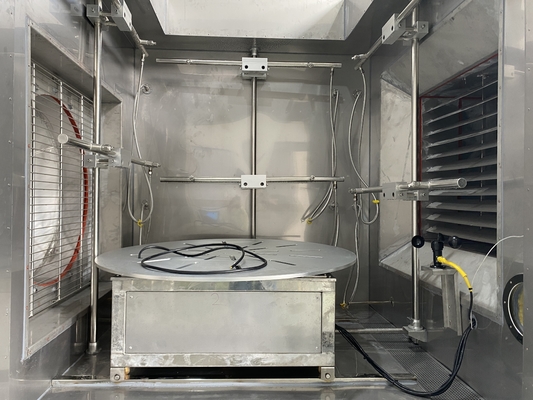

			Stainless Steel Nozzles:
			Overhead, grid-shape, nozzle angle adjustable
			Test Time(min):
			0~999, Adjustable

			Nozzles Amt:
			at least 1/0.56m² in the raining range Nozzles
			Water Drop Diameter (mm):
			2~4.5

			Specimens Dimension(mm):
			Max, Dimension φ700×70

			Test Space Dimension(mm):
			1500W×1500D×1600 H

			Power:
			AC380V ±10%, 50HZ, 3/N/PE

			Model
			EFS-LX Series
			EFS-LC Series
			EFS-LV Series

			Test Space Dimension(mm)
			900W×900D×900H(1400)
			1300W×1300D×1300H(1800)
			1700W×1700D×1700H(2200)

			Optional water-proof test abilities (composable
			IPX1,IPX2 (Dripping teset; vertical, slope15° ); IPX3,IPX4 (Swing pipes or Spray test);IPX5,IPX6 (Flush Test); IPX9 (Shower test).

			Standards
			GB4208-2008/IEC60529:2001

			Power
			AC230V±10%, 50HZ, 1/N/PE

			Options
			Standard Version

			★ Entry ports
			★ Matched rotating shelf for specimen

			★ Power outlets for specimens
			★ Water filter

			★ Spare parts package

			★ E-management and cyber-software

			★ Video monitor system
