Industrial Waterproof Rain Test Chamber with Advanced Controls for Consumer Electronics

Contact Now

Industrial Waterproof Rain Test Chamber with Advanced Controls for Consumer Electronics

Minimum Order Quantity :	1	Price :	To Be Negotiated
Packaging Details :	Wooden packing	Delivery Time :	30-35 business days after received the payment
Payment Terms :	L/C, T/T, Western Union	Supply Ability :	25 per month

Place of Origin:	China	Brand Name:	Envsin
Certification:	CE and ISO	Model Number:	EFS-PRO Series

Detail Information
Product Name:	Spray Rain Test Chamber	Application:	Rain Spray Test
Abilities (composable):	Ipx1 Ipx2	Certificate:	CE ISO
Color:	White/Blue	After Sale:	1 Year
Highlight:	ISO Rain Spray Test Chamber , IPX1 Rain Spray Test Chamber , IPX1 vibration test chamber

Product Description

Automatic Circulating Spray Rain Test Chamber Ipx1 Spray Rain Test Chamber Water Proof Testing

The spray rain test chamber is mainly used for testing the product get wet in the rain in the climate environment of storage,transportation

and use of performance test, mainly used in electrical and electronic products, lamps and lanterns,electrical cabinets,electrical component,automobile,motorcycle and parts,and other products under the condition of the climate simulation in the rain,and other related physical properties of the product testing,testing,Through the verification to determine whether the performance of the product

can meet the requirements for product design,improvement,verification and delivery inspection use.

More detailed:

1. Dripping device (IPX1-X2) :

Can automatically up and down, automatic water replenishment function,
Height of dripping place and specimen: 200mm--900mm adjustable,
Inner hole of dripping needle: 0.4m,
Dripping needle installation distance: 25mm,
Dripping area: 500mmX500mm
Eccentricity of sample: 50mm
Rotation speed: 1r/min
IPX1 dripping flow: 1mm/min
IPX2 dripping flow: 3mm/min
Sample frame bearing capacity: 10KG (specially customized)

2. Pendulum tube rain device (IPX3-X4) :

Test time can be set, water can be recycled
Swing tube Angle: 5-300 degrees can be set arbitrarily
Rain aperture: 0.4mm
Elbow radius: 800mm each
Test flow: IPX3 flow is 210L/H, IPX4 flow is 318L/H
Sample table diameter: 300mm
Test time: 0~99H59M can be arbitrarily set
Rotary speed: 2~10rpm (adjustable)
Rotation speed: IPX3 is 15 times per minute. IPX4 is 5 beats per minute
Nozzle spacing: 50mm
Inner diameter of spray pipe: 16mm
Sample bearing frame: 10KG (specially customized)

Description:

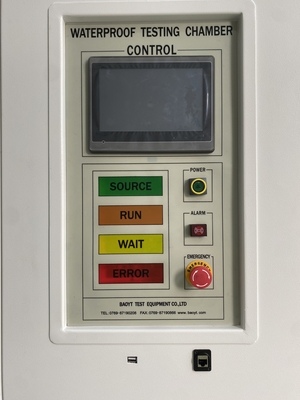

Touch screen: ask 5.7-inch color screen
PLC: Taiwan Fatek
Frequency converter: Taiwan Delta
Pendulum tube motor: servo motor
Deceleration system: pan wheel pan rod deceleration
Rotating disc: specially customized

Specifications:

Model	EFS-PRO Series
Standards	GJB-150.8-2009
Spray Water Test:
Temp.Range(℃)	RT +10 ~ + 55(℃)
Spray Intensity (cm/h)	10~20 (Rotating shelf spray rate; Programmable)
Water Drop Diameter(mm)	0.5 ~ 4.5
Air Speed Range (m/s)	5~18 (Rotating Shelf entry horizontal air speed)
Spray Time (min)	Programmable (0~999);auto-controlled and cycled
Warm Up Range(℃)	Water Temp. +10 (Max+55)
Rotating Shelf Dimension	φ800mm, Rotating Shelf speed adjustable
Weight (kg)	65
Specimens Dimension	Max. Dimension:φ700×700mm

Water-Proof Test:
Water Spray Pressure(KPa)	276
Stainless Steel Nozzles	Overhead,grid-shape,nozzle angle adjustable
Nozzles Amt	At least 1/0.56m in the raining range Nozzles installed 450mm~500mm to the suface of samples
Specimens Dimension	Max, Dimension φ700×700mm
Test Space Dimension	1500W1500D1600H(mm)
Power	AC380V ±10%, 50HZ, 3/N/PE

Water-dripping Test:
Temp. Range (℃)	RT +10 ~ + 55
Dripping Area	760×760mm,Dripping Platform adjustable
Water Drop Diameter(mm)	0.5 ~ 4.5,Dripping Hole Distance 25.4
Rain Rate (L/m ².h)	280±300
Distance(m)	Dripping Distance 1
Water Supply	Continuously Pump Auto Supply;controlled
Dripping Time (min)	0~999, programmable
Specimens Dimension(mm)	Max. Dimension :φ700×700

Model	EFS-LX Series	EFS-LC Series	EFS-LV Series
Test Space Dimension(mm)	900W900D900H(1400)	1300W1300D1300H(1800)	1700W1700D1700H(2200)
Optional water-proof test	IPX1,IPX2(Dripping teset; vertical, slope15 ); IPX3,IPX4 (Swing pipes or Spraytest)
Abilities (composable)	IPX5,IPX6 (Flush Test); IPX9 (Shower test)
Standards	GB4208-2008/IEC60529:2001
Power	AC230V±10%, 50HZ, 1/N/PE

Options Accessories:

Entry ports

Power outlets for specimens

Spare parts package

E-management and cyber-software

Video monitor system

Standard Version

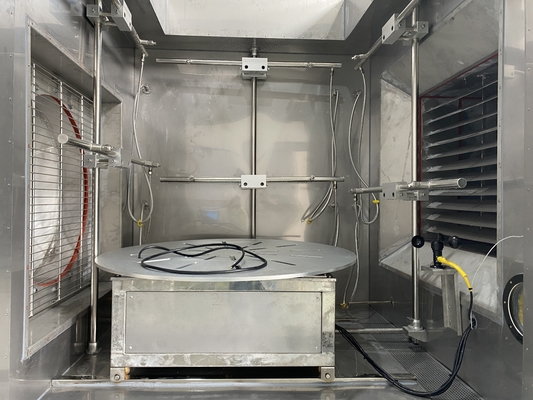

Matched rotating shelf for specimens

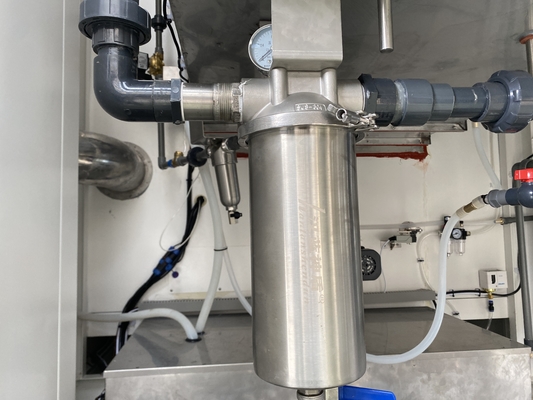

Water filter
