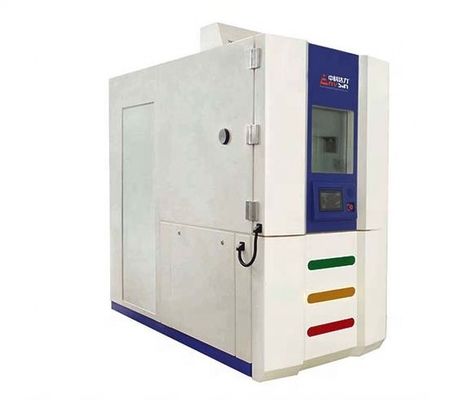

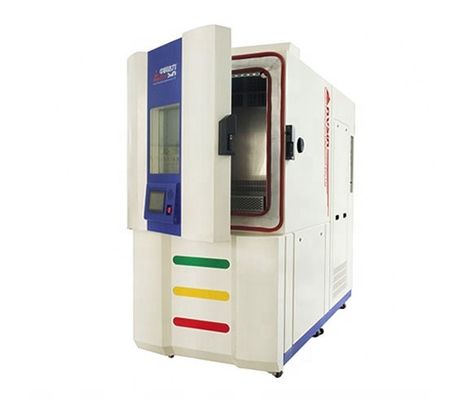

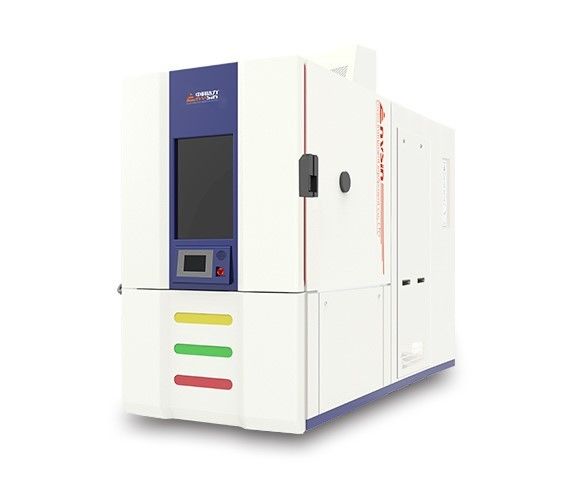

ODM Welcome AC 380V Temperature And Humidity Test Chamber Rapid

Minimum Order Quantity : 1 Price : $15,000.00 >=1 Sets
Delivery Time : 35 Payment Terms : T/T, Western Union
Place of Origin: China Brand Name: Envsin
Certification: CE Model Number: ETS

Detail Information

Product Name: Rapid Temperatur Change (Humidity) Test Chamber Warranty: 1 Year
Application: Widely Used Power Supply: AC380V 50HZ
Temperature Range: -40℃/-70 `~ 180℃ Customized Support: OEM, ODM
High Light:

380V Temperature And Humidity Test Chamber


ODM Temperature And Humidity Test Chamber


380V environmental chamber temperature humidity control

Product Description

Rapid Temperature Change (Humidity)Test Chamber Overview

This test chambe is suitable for high temperature, low temperature, hot-humid and rapid temperature change (ESS) conditions test of the whole machine, parts and materials.
ODM Welcome AC 380V Temperature And Humidity Test Chamber Rapid 0
Homogenous temperature linear changing rates: 5℃/min, 10℃/min Optional remote-assist service function and teaching CDs.
Fashionable desig of modular construction Automatic reminder of equipment maintenance plans and software of recording malfunction
7" colour touch screen display and 32 bit control system; interfce Ethernet/USB Optional network video monitoring and data synchronization
Dry air blowing system prevents specimen's surfaces from dewing in rapid temperature change Intelligent and high-performance servo refrigerating control technology: energy saving and rapid heating/cooling rate
4 load power outlets for specimens with programmable control for protection Unique operation mode: make testing area's temperature back ro room temperature after tests are finished
Special air circulation system inside ensures testing accurancy Optonal APP mobility management
Desig with independent sensors to prevent specimens from damages caused by dewing, overheat, breezeless and smog Automatic water supply with ultrapure filter devices; water shortage reminder function(ECS series)
Special anti-condensation structures design to avoid misjudgment and improve testing accuracy in climate testing Strong control abilities of extreme-low humidity range 20℃/10% R.H..(ECS Series)


 ODM Welcome AC 380V Temperature And Humidity Test Chamber Rapid 1



Model (5℃/min) ETS/ECS 4018-5 ETS/ECS 7018-5 ETS/ECS 4060-5 ETS/ECS 7060-5 ETS/ECS 4150-5 ETS/ECS 7150-5
Test Space Volume (L) 190 600 1540
Temperature Test Parameters:
Temp. Range (℃) -40/+180 -70/+180 -40/+180 -70/+180 -40/+180 -70/+180
Temp. Constancy (℃) ±0.1 ~ ± 0.5
Temp. Homogeneity (℃) ±0.5 ~ ±2.0
Heating/Cooling down Rate(℃/min) 7.0/8.0 7.5/7.5 6.0/6.5 6.0/6.0 6.0/6.3 6.0/5.0
Test Space Dimension (mm) 580W*450D*750H 800W*800D*950H 1100W*1475D*950H
Model (10℃/min) ETS/ECS 4034-10 ETS/ECS 7034-10 ETS/ECS 4060-10 ETS/ECS 7060-10 ETS/ECS 4130-10 ETS/ECS 7130-10
Model (15℃/min) ETS/ECS 4034-15 ETS/ECS 7034-15 ETS/ECS 4060-15 ETS/ECS 7060-15 ETS/ECS 4130-15 ETS/ECS 7130-15
Temp. Test Parameters:
Temp. Range (℃) -40/+180 -70/+180 -40/+180 -70/+180 -40/+180 -70/+180
Temp. Constancy (℃) ±0.3 ~ ± 0.8
Temp. Homogeneity (℃) ±0.5 ~ ± 2.0
Heating/Cooling Rate (℃/min) 10.0/12.5 10.0/14.5 10.0/12.5 10.0/11.0 12.0/11.5 11.0/10.5
Heating/Cooling Rate (℃/min) 16.0/16.0 17.0/18.0 16.0/18.0 17.0/15.0 16.0/17.5 16.0/14.5
Test Space Dimension(mm) 580W*765D*750H 800W*800D*950H 1100W*1300D*950H
Climate Test Parameters: (ECS Series)
Temp. Range (℃) +10 ~ +95
Humid. Range (%RH) 10 ~ 95
Dew Point Temp. Rate (℃) -3 ~ +94
Humid. Constancy (%RH) ±1.0 ~ ± 3.0
Temp. Constancy (℃) ±0.1 ~ ± 0.5
Temp. Homogeneity (℃) ±0.5 ~ ± 2.0
Cooling Methods Water-Cooled
Power AC380V±10%,50HZ,3/N/PE


Options Standard Version
APP for mobility management 2 Stainless steel shelves
Independent sensors for specimen protection (NE60519-2.1993) 3 Power outlets for test specimen
1 Entry port Φ100mm Automatic water supply device 2 Silicon stoppers for entry ports
Nitrogen gas auxiliary device Left and right entry ports
Spare parts package Drier filter for compressing air
E-management and cyber-software 1 Water tank with 20L for ECS series
Video monitor system 1 Water filter for ECS series


Operation System Display

ODM Welcome AC 380V Temperature And Humidity Test Chamber Rapid 2


It is applied to pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity
and the electrical products etc; The test Data result which is very useful for scientific research, product development and
quality control sector to help them produce high quality anlysis report
