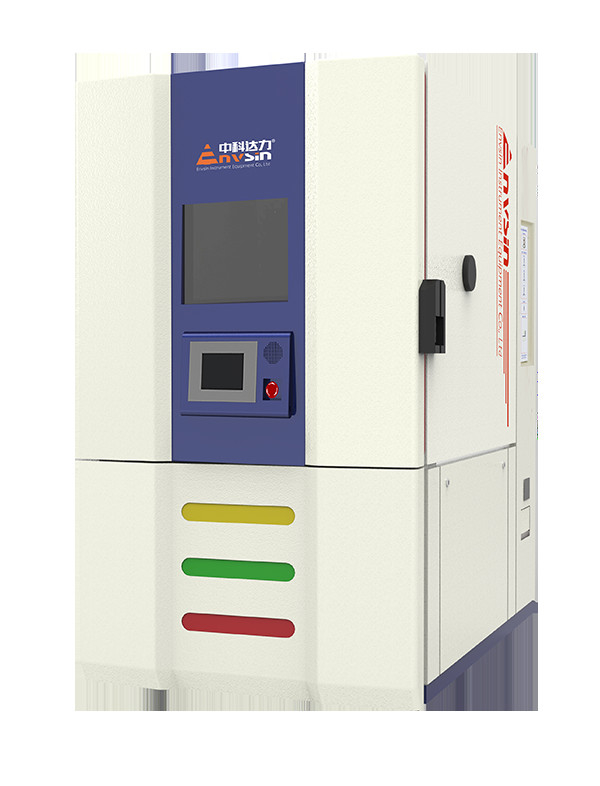

High-Accuracy Temperature Humidity Test Chamber 990L for Accelerated Life Testing

Brand Name:	Envsin
Model Number:	EC
MOQ:	1 set
Price:	$8000 >=1 Set
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	30 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

ISO CE

Power:

380V AC±10% ,50/60Hz,3/N/P

Temperature Range:

-70 Degree~+100(150) Degree,-40~+150℃

Product Name:

Temperature And Humidity Test

Humidity Range:

20%~98%RH.(10%-98%RH / 5%~98%RH Is The Specific Condition )

Controller:

Programmable LCD Touch Screen

Standard:

IEC60068-2-1,JIS H8502,IEC 68-2-11

Warranty:

12 Months

Supply Ability:

30 sets per month

Highlight:

Envsin temperature test chamber

990L temperature test chamber

990L environmental temperature chamber

Product Description

Features

☆ Homogenous temperature linear changing rates: 5℃/min, 10℃/min	☆ Optional remote-assist service function and teaching CDs.
☆ Dry air blowing system prevents specimen's surfaces from dewing in rapid temperature change	☆ Intelligent and high-performance servo refrigerating control technology: energy saving and rapid heating/cooling rate
☆ 4 load power outlets for specimens with programmable control for protection	☆ Unique operation mode: make testing area's temperature back ro room temperature after tests are finished
☆ Special air circulation system inside ensures testing accurancy	☆ Optonal APP mobility management
☆ Desig with independent sensors to prevent specimens from damages caused by dewing, overheat, breezeless and smog	☆ Automatic water supply with ultrapure filter devices; water shortage reminder function(ECS series)
☆ Special anti-condensation structures design to avoid misjudgment and improve testing accuracy in climate testing	☆ Strong control abilities of extreme-low humidity range 20℃/10% R.H..(ECS Series)

Specification

Model	EC4018	EC7018	EC4034	EC7034	EC4060	EC7060	EC4100	EC7100	EC4150	EC7150
Test Space Volume(L)	190		335		600		990		1540
Temp Test Parameters:
Temp. Range (℃)	-42/+180	-72/+180	-42/+180	-72/+180	-45/+180	-72/+180	-45/+180	-73/+180	-42/+180	-73/+180
Temp. Constancy (℃)	±0.1-±0.5
Temp. Homogeneity (℃)	±0.5-±2.0
Heating Rate (℃/min)	4.0	4.0	3.2	3.0	4.0	4.0	4.0	4.0	3.5	3.5
Cooling Rate (℃/min)	4.0	3.0	4.0	3.0	3.0	2.5	3.0	2.5	2.5	2.3
Temp. Max. Thermal Compensation (W)	2800	1500	2800	1500	1500	2500	4500	3000	4200	3000
Climate Test Parameters:
Dewpoint Temp. Range (℃)	+4(-3)-+94 10-98 ±1.0-±3 ±0.1-±0.3 ±0.5-±2.0
Humid. Range (%RH)
Humid.Constancy (%RH)
Temp. Constancy (℃)
Temp. Homogeneity (℃)
Temp and Humid Max.Thermal Compensation (W)	400	400	400	400	500	500	500	500	500	500
Power	AC380V±10%,50HZ,3/N/PE

Optional Accessories:

Standard Version:

• Independent sensors for specimen protection(NE60519-2.1993)

• 1 Entry port Φ100mm
• Drier filter for compressing air
• Automatic water supply device
• Nitrogen gas auxiliary device
• Water-Cooled unit
• Spare parts package
• E-management and cyber software

• 3 Power outlets for specimens
• Left and right entry ports Φ50mm
• Silicon Stoppers for entry ports
• 2 Stainless steel shelves
• 1 Water tank with 20L
• 1 Water filter

Quality Control
