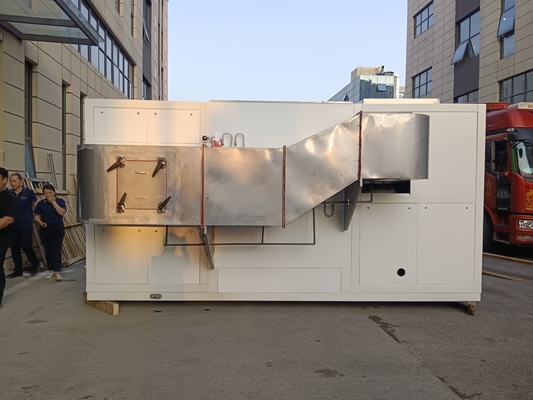

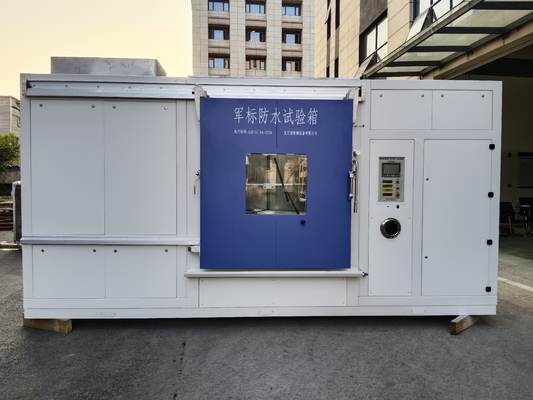

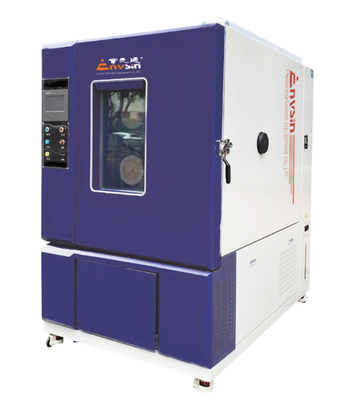

Programmable Rain Simulation Chamber for Product Durability IPX7 and IPX8 Waterproofing

Brand Name:	Envsin
Model Number:	EFS-LX
MOQ:	1 set
Price:	$15000 >=1 Set
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	30 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

ISO CE

Power:

Electronic

Usage:

Universal Testing Machine,Rain Test Chamber,rain Spray Test

Product Name:

Rain Test Chamber

Warranty:

1 Year

Temperature Range:

RT+10℃~55℃

Rainfall Intensity:

10~20cm/h

Water Drop Diameter:

0.5mm~4.5mm

Dropping Volume:

280±300L/m*m.h

Raindrop Speed:

9m/s

Wind Speed Range:

5~18m/s

Flushing Pressure:

>=276kPa

Volume:

1400L、1800L、2200L And Other Customized Volume

Power Supply:

AC 3 Phase 380V 60/50Hz

Material:

SUS 304 Stainless Steel

Supply Ability:

30 sets per month

Highlight:

Envsin climate control chamber

20cm/h climate control chamber

20cm/h rain test equipment

Product Description

IPX5 IPX6 IPX9 Rain Spray Test Chamber

This test chamber is suitable for shell protection of the external lighting,signaling devices and automotive lamp.In order to achieve the waterproof performance of various products, it can provide realistic analog of various environment including water spray and rain spray that electronic products and their component may be subjected to during transporting and using.

Our Service

• Be able to provide a complete testing solution (customization)

• Patented and eye-catching industrial design

• Preferential vendor of Apple and Cisco in China

• Perfect systematic pre-sale and after-sale technical support

Products Features

• Accept customized design requirements.

• Properties and applications meet the military and industry standards.

• 7'' touch screen display and intelligent software for easy and comfortable operation.

• Automatic water supply with ultrapure filter devices (optional) ; water shortage reminder function.

• Dynamic adjustment temperature control system: rapid and stable control of test chambers'temperature.

• Used-water designed recyclable through filtering.

• Special design for rain and water environment; durable structure with sealed and heat insulation.

• Fashionable design of modular construction.

• Optional observation window in testing space with a dust wiper for real-time monitoring.

• Intelligent and independent protection design for overload, overhe at, power-supply abnormity, overvoltage, component malfunction monitoring.

• Optional network video monitoring and data synchronization.

• Optional remote assist service function and teaching CDs.

Product Paramenters

Model	EFS-PRO Series
Standards	GJB-150.8-2009
Spray Water Test:		Water-dripping Test:
Temp.Range(℃)	RT +10 ~ + 55(℃)	Temp. Range (℃)	RT +10 ~ + 55
Spray Intensity (cm/h)	10~20 (Rotating shelf spray rate; Programmable)	Dripping Area	760×760mm, Dripping Platform adjustable
Water Drop Diameter(mm)	0.5 ~ 4.5	Water Drop Diameter(mm)	0.5 ~ 4.5,Dripping Hole Distance 25.4
Air Speed Range (m/s)	5~18 (Rotating Shelf entry horizontal air speed)	Rain Rate (L/m ².h)	280±300
Spray Time (min)	Programmable (0~999);auto-controlled and cycled	Distance(m)	Dripping Distance 1
Warm Up Range(℃)	Water Temp. +10 (Max+55)	Water Supply	Continuously Pump Auto Supply;controlled

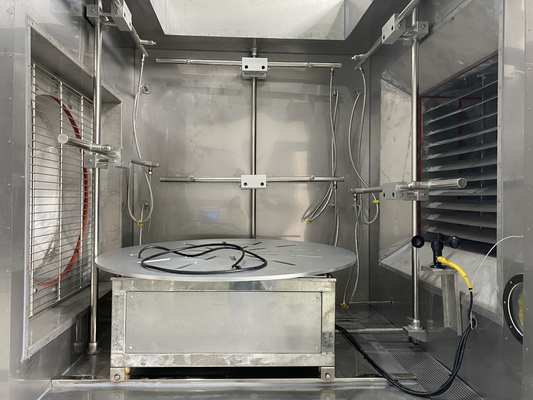

Rotating Shelf Dimension	φ800mm, Rotating Shelf speed adjustable	Dripping Time (min)	0~999, programmable
Weight (kg)	65	Specimens Dimension(mm)	Max. Dimension :φ700×700
Specimens Dimension	Max. Dimension:φ700×700mm
Water-Proof Test:
Water Spray Pressure(KPa)	276	Water Supply Method	Water Pump Supply Continuously
Stainless Steel Nozzles	Overhead,grid-shape,nozzle angle adjustable	Test Time(min)	0~999, Adjustable
Nozzles Amt	At least 1/0.56m in the raining range Nozzles installed 450mm~500mm to the suface of samples	Water Drop Diameter (mm)	2~4.5
Specimens Dimension	Max, Dimension φ700×700mm
Test Space Dimension	1500W1500D1600H(mm)
Power	AC380V ±10%, 50HZ, 3/N/PE

Model	EFS-LX Series	EFS-LC Series	EFS-LV Series
Test Space Dimension(mm)	900W900D900H(1400)	1300W1300D1300H(1800)	1700W1700D1700H(2200)
Optional water-proof test	IPX1,IPX2(Dripping teset; vertical, slope15 ); IPX3,IPX4 (Swing pipes or Spraytest)
Abilities (composable)	IPX5,IPX6 (Flush Test); IPX9 (Shower test)
Standards	GB4208-2008/IEC60529:2001
Power	AC230V±10%, 50HZ, 1/N/PE


Options Accessories
• Entry ports

• Power outlets for specimens

• Spare parts package

• E-management and cyber-software

• Video monitor system


Standard Version
• Matched rotating shelf for specimens
• Water filter
