OEM Service High Altitude Test Chamber

Product Details:
Place of Origin: China
Brand Name: Envsin
Certification: CE
Model Number: ETQ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Payment Terms: T/T, Western Union, T/T

Detail Information

Goods Name: Low Air Pressure Test Chambers Customized Support: OEM And ODM
Temp.Constancy: ±1.0 ℃~ ±0.8℃ Temp. Accuracy: ±2.0℃
Humid. Range: (10) 20%RH ~ 98%RH Power: AC380V±10%,50HZ
High Light:

1000L High Altitude Test Chamber


OEM High Altitude Test Chamber


OEM high low temperature test chamber

Product Description

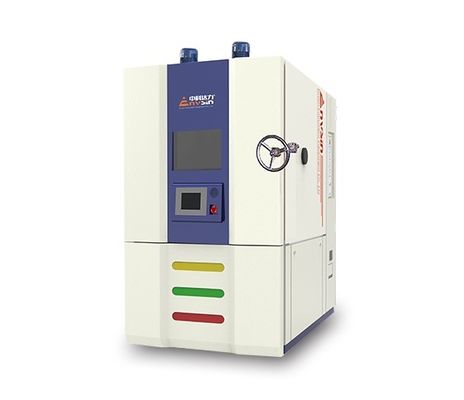

High Altitude Test Chamber high-low Temperature for Aerospace Product



 top-performance water ring vacuum pump controls low pressure.

Optional remote-assist service function and teaching CDs.

Optonal APP mobility control

Optional network video monitoring and data synchronization
The Chambe is Fashion designed for modularity construction Automatic water supply with Ultrapure filter devices water shortage reminder function
7" colour touch clearly show screen display and 32 bit control system; interfce Ethernet and USB Automatic reminder of equipment maintenance plans and software of recording malfunction
Built-in radiation shield ensures temperature homogeneity in low air pressure. top-performance servo refrigerating control technology: energy saving and fast heating/cooling rate
 Software functions: intelligent power-recovery restoration, auto-connect on memory and auto-reset restart. Unique operation mode: make testing area's temperature back ro room temperature after tests are finished
Special protection design for overheat, powersupply abnormity,overload ,overvoltage, component malfunction monitoring



Temperature Chambers                      Climate Chambers ETQ7025 ETQ7050 ETQ7100 ETQ7200
ECQ7025 ECQ7050 ECQ7100 ECQ7200
Test Space Volume (L) 250 500 1000 2000
Temp. Test Parameters:
Temp. Range (℃) -70~+150
Temp.Constancy (℃) ±1.0 ~ ±0.8 (Atmospheric Pressure No Load)
Temp. Homogeneity (℃) ±0.5 ~ ±2.0 (Atmospheric Pressure No Load)
Temp. Accuracy (℃) ±2.0 (Atmospheric Pressure No Load)
Heat Up Time (min) (+20℃ to~150℃) 60 60 50 60
Cooling Down Time (min) (+20℃ to~60℃) 90 80 60 80
Pressure Range (Kpa) Atmospheric Pressure~ 1.0 Atmospheric Pressure ~ 0.5
Pressure Accuracy (Kpa) ±2.0 (Atmospheric Pressure~ 40Kpa);±5%(40KPa~4KPa);±0.1(4KPa~1KPa)
Pressure Release Time (min) 45(Atmospheric Pressure→1KPa)
Rapid Release of Pressure Function (Optional) Pressure Release Range:75.2KPa →18.8KPa; Pressure Release Time:15sec
Climate Test Parameters for ECQ series:
Temp. Range (℃) +10 ~ +95
Temp. Constancy (℃) ±1.0 ~ ±0.8 (Atmospheric Pressure No Load)
Temp. Homogeneity (℃) ±1.0 ~ ±2.0 (Atmospheric Pressure No Load)
Humid. Range (%RH) (10) 20 ~ 98 (Atmospheric Pressure No Load)
Humid. Constancy (%RH) ±1.0 - ±3.0 (Atmospheric Pressure No Load)
Test Space Dimension (mm) 600W×600D×700H 800W*700D*900H 1000W×1000D×1000H 1400W*1200D*1200H
External Dimension (mm) 1000W×1800D×1800H 1500W*2750D*1900H 1400W×3250D×2000H 1810W*3710D*2310H
Power AC380V±10%,50HZ,3/N/PE
Cooling Methods Water-Cooled


Options Standard Version
APP for mobility management 1 Set testing electrode
Independent sensors for specimen protection (NE60519-2.1993) Electronic temperature and humidity sensors
1 Entry port Φ50mm
Nitrogen gas auxiliary device
Spare parts package
E-management and cyber-software
Rapid release of pressure device
Video monitor system
Rapid recovered pressure device
