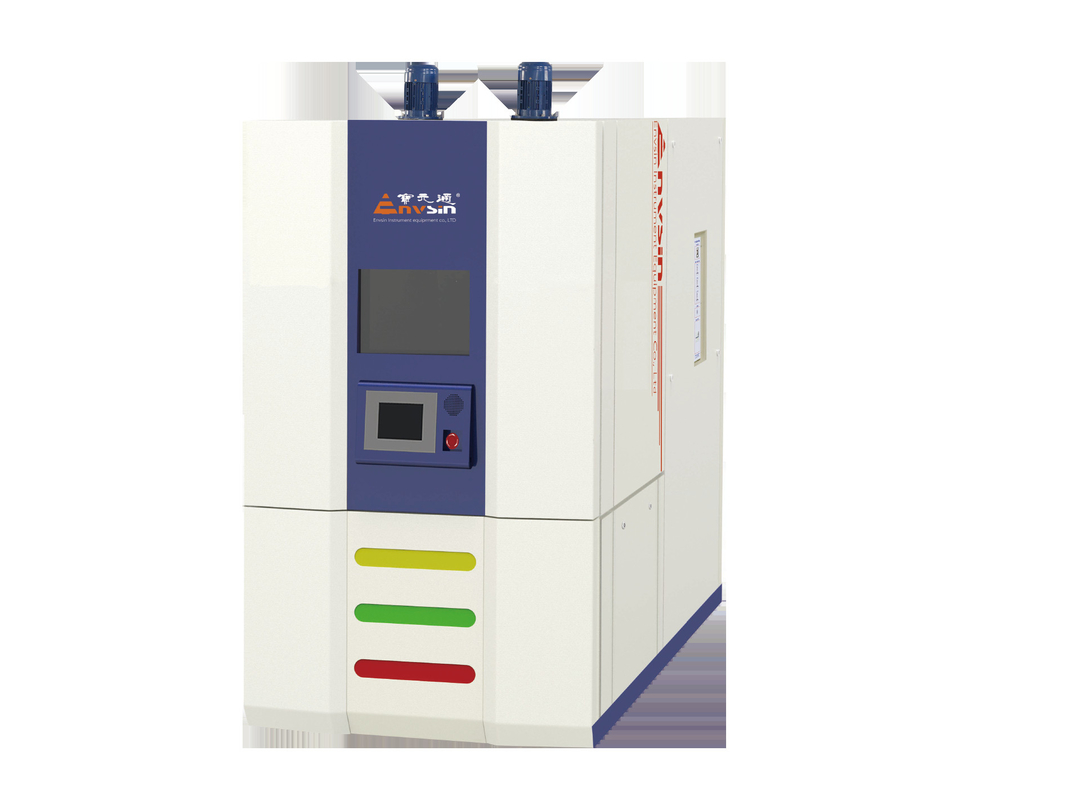

Customizable Reliable Altitude test Chamber for Product Reliability

Brand Name:	Envsin
Model Number:	ECQ
MOQ:	1 set
Price:	$5000 >=1 Set
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	30 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

ISO CE

Test Volume:

250L,500L,1000L ,2000L And Other Customized Volume

Temperature Range:

-70~150℃

Heating And Cooling Rate:

1℃/min,3℃/min,5℃/min,10℃/min(Adjustable)

Air Pressure Range:

Normal Pressure~0.5kPa

Depressurization Time:

<=45min(normal Pressure~1kPa)

Pressure Precision:

±2kPa Target Value(normal Pressure~40kPa);±5kPa Target Value(40kPa~4kPa))

Depressurization Range:

72.5kPa~18.8kPa

Depressurization Time:

15 Seconds

Supply Ability:

30 sets per month

Highlight:

150 degree High Altitude Test Chamber

250L High Altitude Test Chamber

250L stability chamber temperature and humidity

Product Description

Altitude Chambers With Temperature And Humidity Controls

This test chamber is suitable for simulating environmental tests of high temperature,low temperature,damp heat,low air pressure single climate factor or multiple climatic factors for the whole machine,components and materials.



Features

• High performance water ring vacuum pump controls low pressure. • Fashionable design of modular construction. • 7'' colour touch screen display and 32 bit control system; interface Ethernet/USB.

• Optional APP mobility management.

• Built-in radiation shield ensures temperature homogeneity in low air pressure.

• Customer-friendly design: observation window in testing space with a reality visualization for real-time monitoring. (Patented)
• Automatic water supply with ultrapure filter devices(optional) ;water shortage reminder function.

technology: energy saving and rapid heating/cooling rate.

Product Paramenters

Temperature Chambers	ETQ7025	ETQ7050	ETQ7100	ETQ7200
Climate Chambers	ECQ7025	ECQ7050	ECQ7100	ECQ7200
Test Space Volume (L)	250	500	1000	2000
Temp. Test Parameters:
Temp. Range (℃)	-70~+150
Temp. Constancy (℃)	±0.1-±0.8 (Atmospheric Pressure No Load)
Temp. Homogeneity(℃)	±0.5-±2.0 (Atmospheric Pressure No Load)
Temp. Accuracy (℃)	±2.0 (Atmospheric Pressure No Load)
Heat Up Time (min) (+ 20℃ to ~150℃)	60	60	50	60
Cooling Down Time (min) (+ 20℃ to~60℃)	90	80	60	80
Pressure Range (Kpa)	Atmospheric Pressure ~1.0 Atmospheric Pressure ~0.5
Pressure Accuracy (Kpa)	±2 (Atmospheric Pressure ~40KPa); ±5%(40KPa~4KPa); ±0.1(4KPa~1KPa)
Pressure Release Time (min)	45(Atmospheric Pressure→1KPa)
Rapid Release of Pressure Function (optional)	Pressure Release Range: 75.2KPa → 18.8KPa; Pressure Release Time: 15sec
Climate Test Parameters for ECQ series:
Temp. Range (℃)	+10~+95
Temp.Constancy (℃)	±0.1~±0.8 (Atmospheric Pressure No Load)
Temp. Homogeneity (℃)	±0.1~±2.0 (Atmospheric Pressure No Load)
Humid. Range (%RH)	(10) 20-98 (Atmospheric Pressure No Load)
Humid. Constancy (%RH)	±1-±3 (Atmospheric Pressure No Load)
Test Space Dimension (mm)	600W×600D×700H	800W×700D×900H	1000W×1000D×1000H	1400W×1200D×1200H
External Dimension (mm)	1000W×1800D×1880H	1500W×2750D×1900H	1400W×3250D×2000H	1810W×3710D×2310H
Power	AC380V±10%, 50HZ, 3/N/PE
Cooling Methods	Water-Cooled

Options Accessories
• Iindependent sensors for specimen protection (NE60519-2.1993)

• 1 Entry port Φ50mm

• Nitrogen gas auxiliary device

• Spare parts package

• E-management and cyber-software

• Video monitor system

• Rapid release of pressure device
Quality Control

Standard Version
• 1 Set testing electrode
• Electronic temperature and humidity sensors
