Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Envsin |
| Certification: | CE and ISO |
| Model Number: | ETQ7200 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | To Be Negotiated |
| Packaging Details: | Wooden packing |
| Delivery Time: | 30-35 business days after received the payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 25 per month |
|
Detail Information |
|||
| Product Name: | Altitude Test Chamber | Test Space Volume (L): | 2000 |
|---|---|---|---|
| Temp. Range (℃): | -70~+150 | Temp. Constancy (℃): | ±0.1-±0.8 (Atmospheric Pressure No Load) |
| Temp. Homogeneity(℃): | ±2.0 (Atmospheric Pressure No Load) | Pressure Range (Kpa): | Atmospheric Pressure ~1.0 Atmospheric Pressure ~0.5 |
| Pressure Accuracy (Kpa): | ±2 (Atmospheric Pressure ~40KPa); ±5%(40KPa~4KPa); ±0.1(4KPa~1KPa) | Pressure Release Time (min): | 45(Atmospheric Pressure→1KPa) |
| Power: | AC380V±10%, 50HZ, 3/N/PE | ||
| High Light: | 150 degree low pressure chamber,380V low pressure chamber,150 degree pressure test chamber |
||
Product Description

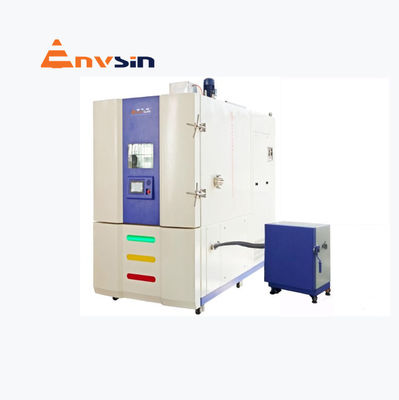

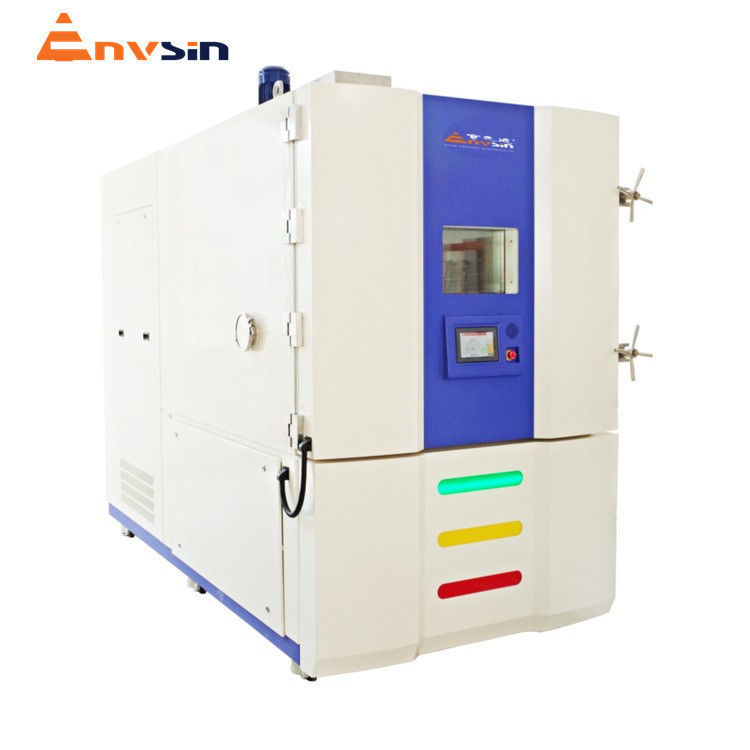

Humidity Control High Altitude Test Chamber Altitude Low Air-Pressure Testing
The high altitude test chamber can be used for the heat dissipation test sample and non-heat dissipation test sample test. For the test of heat dissipation test sample, the heat dissipation power can not exceed the cooling capacity of the refrigeration system of the test chamber, because the control of temperature and humidity is a dynamic balance process, in different temperature and humidity points, the cooling capacity of the refrigeration system is also accompanied by changes.
| •GB/T 2423.1 Low temperature test methods | •GJB 150.2 Low pressure (height) test |
| •GB/T 2423.2 High temperature test method | •GJB 150.3 high temperature test |
| •GB/T2423.21 Low pressure test method | •GJB 150.4 low temperature test |
| •IEC60068-2 Temperature/low pressure test method | •GJB 150.6 Temperature - height test |
| Temperature Chambers: | ETQ7200 |
| Climate Chambers: | ECQ7200 |
| Test Space Volume (L) | 2000 |
| Temp. Test Parameters: | |
| Temp. Range (℃) | -70~+150 |
| Temp. Constancy (℃) | ±0.1-±0.8 (Atmospheric Pressure No Load) |
| Temp. Homogeneity(℃) | ±0.5-±2.0 (Atmospheric Pressure No Load) |
| Temp. Accuracy (℃) | ±2.0 (Atmospheric Pressure No Load) |
| Heat Up Time (min) (+ 20℃ to ~150℃) |
60 |
| Cooling Down Time (min) (+ 20℃ to~60℃) |
80 |
| Pressure Range (Kpa) | Atmospheric Pressure ~1.0 Atmospheric Pressure ~0.5 |
| Pressure Accuracy (Kpa) | ±2 (Atmospheric Pressure ~40KPa); ±5%(40KPa~4KPa); ±0.1(4KPa~1KPa) |
| Pressure Release Time (min) |
45(Atmospheric Pressure→1KPa) |
| Rapid Release of Pressure Function (optional) |
Pressure Release Range: 75.2KPa → 18.8KPa; Pressure Release Time: 15sec |
| Climate Test Parameters for ECQ series: | |
| Temp. Range (℃) | +10~+95 |
| Temp.Constancy (℃) | ±0.1~±0.8 (Atmospheric Pressure No Load) |
| Temp. Homogeneity (℃) | ±0.1~±2.0 (Atmospheric Pressure No Load) |
| Humid. Range (%RH) | (10) 20-98 (Atmospheric Pressure No Load) |
| Humid. Constancy (%RH) | ±1-±3 (Atmospheric Pressure No Load) |
| Test Space Dimension (mm) |
1400W*1200D*1200H |
| External Dimension (mm) | 1810W*3710D*2310H |
| Power | AC380V±10%, 50HZ, 3/N/PE |
| Cooling Methods | Water-Cooled |
|
Options Accessories |
Standard Version |
|
• Iindependent sensors for specimen protection (NE60519-2.1993) |
•1 Set testing electrode |
|
•Nitrogen gas auxiliary device |
•Electronic temperature and humidity sensors |
|
•Spare parts package |
|
|
•E-management and cyber-software |
|
|
•Video monitor system |
|
|
•APP for mobility management |
|
|
•Rapid release of pressure device |
|
|
•Rapid recovered pressure device |

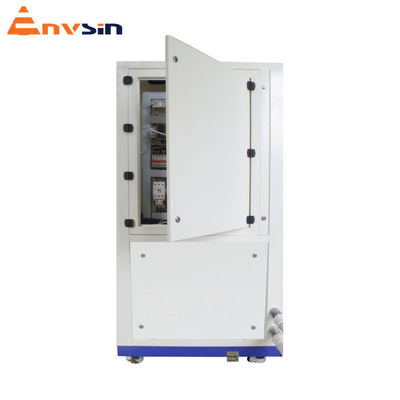

Integral, (high altitude test chamber door direction is in the front) for the studio, refrigeration unit for the lower, after the electric control cabinet and electric control device, the main control interface is located in front of the high altitude test chamber door, the expansion control panel is located in the right back of the high altitude test chamber. Wide open door, back and side of the studio for circulating air duct system and air conditioning system: air centrifugal fan, air diversion unit, low pressure heat radiation unit, heater, humidifier, refrigeration heat exchanger, temperature/low pressure sensing unit.
