High Low Temperature Humidity Test Chamber Environmental Humidity Test Chamber

Product Details:
Place of Origin: China
Brand Name: Envsin
Certification: CE and ISO
Model Number: EC4150
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: To Be Negotiated
Packaging Details: Well packed in strong wooden case suitable for all types of long distance shipment
Delivery Time: 30-35 business days after received the payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 per month

Detail Information

Product Name: Humidity Test Chamber Usage: Auto Testing Machine
Inner Size: 1500×1000×1000mm Outer Size: 1750x1860x1950mm
Power: AC400V±10%,50Hz±1 Cooling Method: Air-Cooled
High Light:

1540L temperature cycling chamber


400V temperature cycling chamber


1540L benchtop temperature chamber

Product Description

High Low Temperature Humidity Test Chamber Environmental Humidity Test Chamber


           The humidity test chamber is suitable for the whole machine, parts, materials for constant high temperature, low temperature or temperature cycle conditions test.The humidity test chamber can be used for the heat dissipation test sample and non-heat dissipation

test sample test. For the test of heat dissipation test sample, heat dissipation power can not exceed the cooling capacity of the refrigeration system of humidity test chamber, because the control of temperature is a dynamic balance process, at different temperature points, the cooling capacity of the refrigeration system is also accompanied by changes.


Model:humidity test chamber EC4150
Test Space Volume(L) 1540
Temperature Test Parameters:
Temp. Range (℃) -42/+180
Temp. Constancy (℃)


Temp. Homogeneity (℃)


Heating Rate(℃/min) 3.5
Cooling Rate (℃/min) 2.5

Temp. Max. Thermal Compensation (W)

Climate Test Parameters:
Dewpoint Temp. Range (℃)


Humid. Range (%RH)


Humid.Constancy (%RH)


Temp. Constancy (℃)


Temp. Homogeneity (℃)


Temp and Humid Max.Thermal Compensation (W)


Power AC380V±10%,50HZ,3/N/PE

Humidity test chamber Optional Accessories:

Independent sensors for specimen protection(NE60519-2.1993

1 Entry port Φ100mm

Drier filter for compressing air

Automatic water supply device

Nitrogen gas auxiliary device

Water-Cooled unit

Spare parts package

E-management and cyber software

Video monitor system

APP for mobility management

Standard Version:

3 Power outlets for specimens

Left and right entry ports Φ50mm

Silicon Stoppers for entry ports

2 Stainless steel shelves

1 Water tank with 20L

1 Water filter



Integral, (the humidity test chamber door direction is in front) front for the studio, the refrigeration unit, after the electric control cabinet and electric control actuator, the main control interface is located in front of the humidity test chamber, the expansion control panel is located in the right side of the humidity test chamber. The door is open in the width direction. At the back of the studio, there are circulating air duct system and air conditioning system: centrifugal fan, air guide, heater, refrigeration heat exchanger, temperature sensing device.

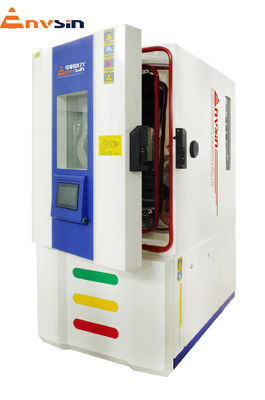

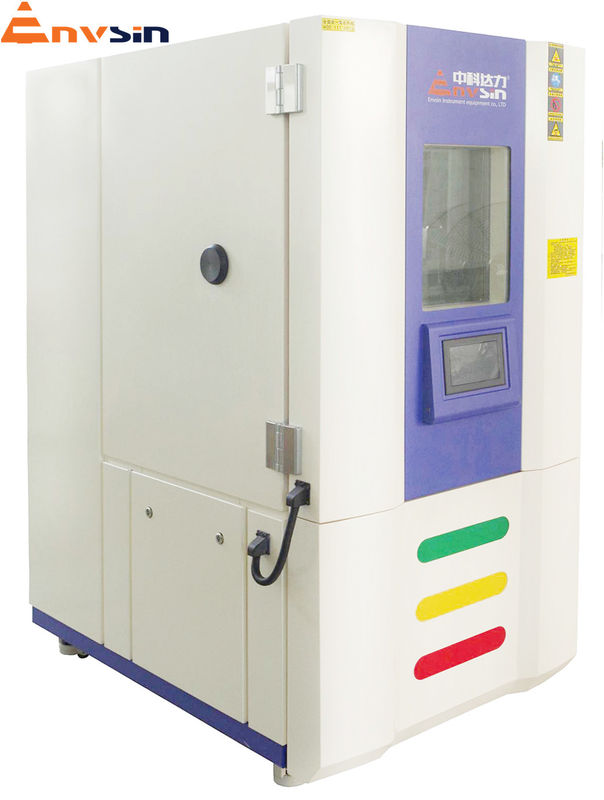

High Low Temperature Humidity Test Chamber Environmental Humidity Test Chamber 0

                                       1. Chamber Door                                    2. Observation Window
                                       3. Control Pad                                    4. Working Lights
                                       5. Cable Port                                    6. Extensional control pad
                                       7. Wheels                                    8. Power distribution board


  • Outer chamber material: cold rolled steel plate + double-sided electrostatic spraying process
  • Inner chamber material: SUS304 high-grade stainless steel plate
  • Insulation material: rigid polyurethane foam + aluminum silicate insulation layer


The structural strength:
  • Bearing capacity of test chamber floor: ≤120kg (uniform load)
  • Test chamber sample frame bearing capacity: ≤20Kg (uniform load)
  • The total weight of the test box shall not exceed 150kg


Heating Mode:

The closed-loop feedback heating control system is composed of temperature sensor, central controller, solid-state relay drive module and heater actuator. Through THE P.I.D control calculation method, the temperature compensation control of the test chamber studio can be carried out in real time and dynamically.

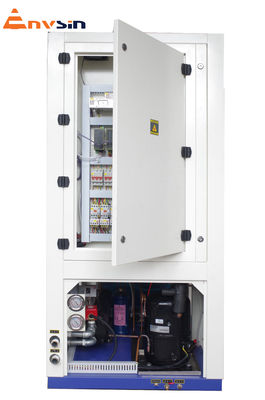

High Low Temperature Humidity Test Chamber Environmental Humidity Test Chamber 1


Core Components:

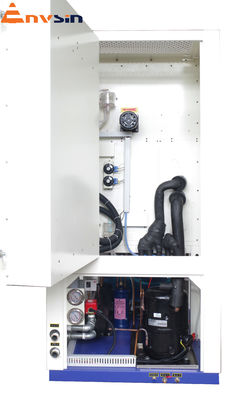

High Low Temperature Humidity Test Chamber Environmental Humidity Test Chamber 2
