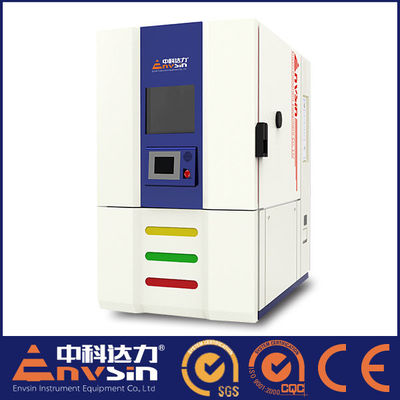

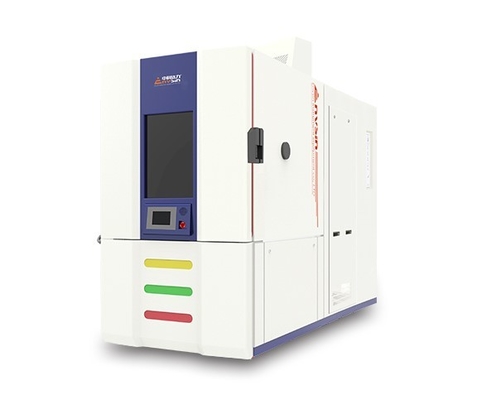

220V Multifunctional Temperature And Humidity Test Chamber White And Blue

Minimum Order Quantity :	1 set	Price :	$8000 >=1 Set
Delivery Time :	35 days	Payment Terms :	T/T, Western Union,, D/P
Supply Ability :	30 sets per month

Place of Origin:	China	Brand Name:	Envsin
Certification:	CE	Model Number:	EC

Detail Information
Test Space Volume:	190L,1540L And Other Customized	Humid. Range:	10% RH~98% RH
Heating Rate:	3.0 ℃/min	Cooling Rate:	3.0 ℃/min
Power:	220V Or 380V AC±10% 50/60Hz	Temperature Range:	-40 ~ +150℃
Standard:	IEC60068-2-1,JIS H8502,IEC 68-2-11	Warranty:	12 Months
Color:	White And Blue
High Light:	multifunctional Temperature And Humidity Test Chamber , 220V Temperature And Humidity Test Chamber , 220V low temperature chamber

Product Description

Constant high-low Temperature And Climatic Test Chamber for

Product Research and Develop

This test Chamber provide temperature and humidity environment for astronautics, aviation, petroleum, chemical, engineering, military science, automobile, ship, electronics, communication and other scientific research and production unit. it also simulates compatibility test of samples on the condition of temperature and humidity variation environment and provides reliability test in terms of the safety test of electron component.

Features

☆ Fashionable design of modular construction	☆ Automatic water supply with ultrapure filter devices(optional)
☆ Optional App mobility management	☆ Environment-friendly refrigerating control technology: rapid heating/cooling rate.
☆ Optional network video monitoring and data synchronization	☆ Automatic reminder of equipment maintenance plans and software of recording malfunction.
☆ Special anti-condensation structures to avoid misjudgment

Specifications

Model	EC4018	EC7018	EC4034	EC7034	EC4060	EC7060	EC4150	EC7150
Test Space Volume(L)	190		335		600		1540
Temp Test Parameters:
Temp. Range (℃)	-42/+180	-72/+180	--42/+180	-72/+180	-45/+180	-72/+180	--42/+180	-73/+180
Temp.Constancy(℃)	±0.1 - ±0.5
Temp.Homogeneity(℃)	±0.5 - ±2.0
Heating Rate (℃/min)	4	4	3.2	3	4	4	3.5	3.5
Cooling Rate (℃/min)	4	3	4	3	3	2.5	2.5	2.3
Temp. Max. Thermal Compensation(W)	2800	1500	2800	1500	2500	2500	4200	3000
Climate Test Parameters:
Dewpoint Temp. Range (℃)	+4(-3)~+94
Humid. Range (%RH)	10~98
Humid. Constancy(%RH)	±1.0 - ±3.0
Temp. Constancy(℃)	±0.1 - ±0.3
Temp. Homogeneity(℃)	±0.5 - ±2.0
Temp and Humid Max. Thermal Compensation(W)	400	400	400	400	500	500	500	500
Power	AC380V±10%,50HZ,3/N/PE
Cooling Methods	Air-Cooled

Options	Standard Version
☆ Independent sensors for specimen protection	☆ 3 Power outlets for specimens
☆ 1 Entry port φ 100mm	☆ Left and right entry ports φ 50mm
☆ Drier filter for compressing air	☆ Silicon stoppers for entry ports
☆ Automatic water supply device	☆ 2 Stainless steel shelves
☆ Nitrogen gas auxiliary device	☆ 1 Water tank with 20L
☆ Water-Cooled unit	☆ 1 Water filter
☆ Spare parts package

Application

It is applied to pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products etc;

The test Data result which is very useful for scientific research, product development and quality control sector to help them produce high quality anlysis report
