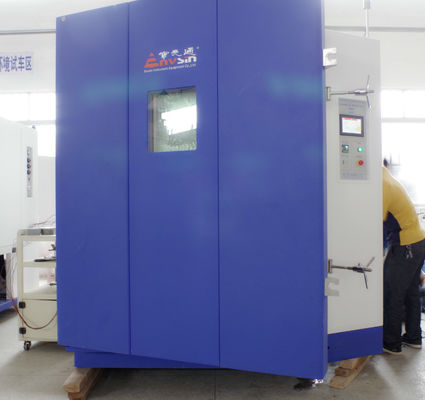

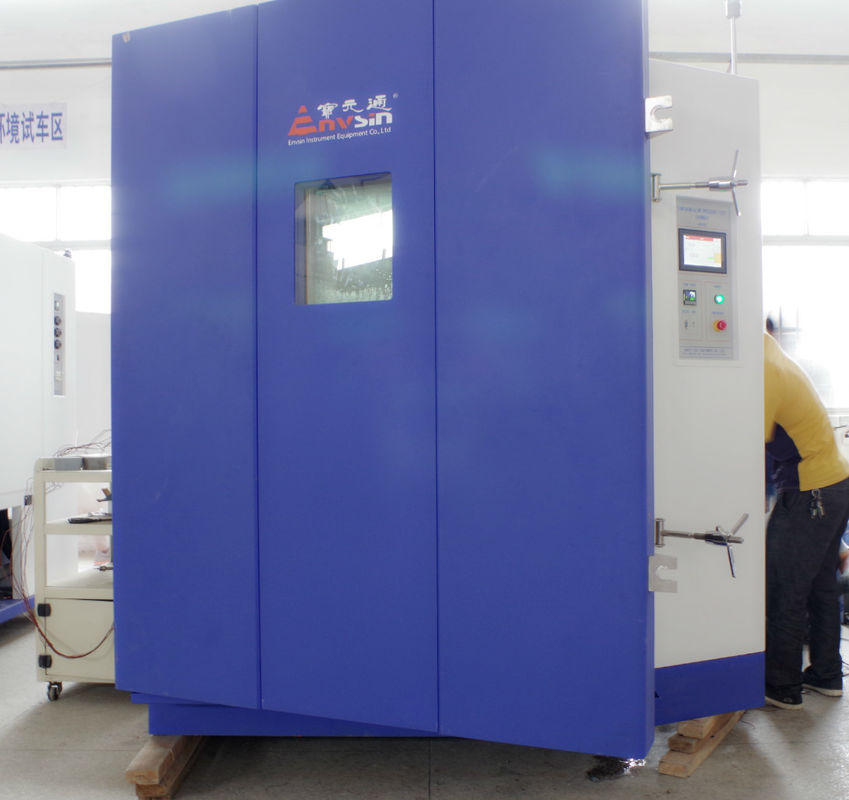

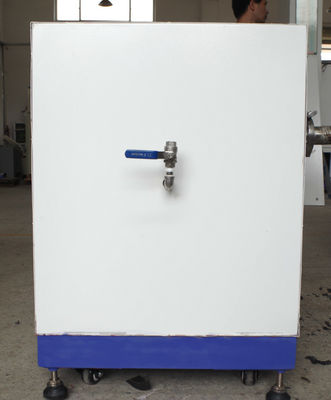

2000L High Altitude Test Chamber

Brand Name:	Envsin
Model Number:	ECQ
MOQ:	1 set
Price:	$5000 >=1 Set
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	30 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

ISO CE

Test Volume:

250L,1000L ,2000L And Other Customized

Temp Range:

-70~150℃

Heating And Cooling Rate:

1℃/min,3℃/min, 10℃/min(Adjustable)

Air Pressure:

Normal Pressure ~0.5kPa

Pressure Precision:

±2kPa Target Value(normal Pressure~40kPa); ±5kPa Target Value(40kPa~4kPa)

Supply Ability:

30 sets per month

Highlight:

0.5kPaHigh Altitude Test Chamber

2000L High Altitude Test Chamber

2000L hydrostatic pressure chamber

Product Description

Low Temperature and Humidity Low Air Pressure Test Chamber

This test chamber is suitable for simulating environmental tests of high temperature,low temperature,damp heat,low air pressure single climate factor or multiple climatic factors for the whole machine,components and materials.



Features

• Fashionable design of modular construction.
• 7'' colour touch screen display and 32 bit control system; interface

Ethernet/USB.

• Optional APP mobility management.

• Built-in radiation shield ensures temperature homogeneity in low air pressure.

• Intelligent and independent protection design for overload, overheat,power supply abnormity, overvoltage, component malfunction monitoring.

• Customer-friendly software functions: intelligent power-recovery restoration,auto-connect on memory and auto-reset restart.

• Optional network video monitoring and data synchronization.
• Customer-friendly design: observation window in testing space

with a reality visualization for real-time monitoring. (Patented)

• Intelligent and high-performance servo refrigerating control

technology: energy saving and rapid heating/cooling rate.

• Unique operation mode: make testing area's temperature back to room temperature after tests are finished.

• Automatic reminder of equipment maintenance plans and software of recording malfunction.

• Optional remote-assist service function and teaching CDs.

Product Paramenters

Temp Chambers	ETQ7025	ETQ7050	ETQ7100	ETQ7200
Climate Chambers	ECQ7025	ECQ7050	ECQ7100	ECQ7200
Test Space Volume (L)	250	500	1000	2000
Temp. Test Parameters:
Temp. Range (℃)	-70~+150
Temp. Constancy (℃)	±0.1-±0.8 ( Atmospheric Pressure No Load)
Temp. Homogeneity(℃)	±0.5-±2.0 ( Atmospheric Pressure No Load)
Temp. Accuracy (℃)	±2.0 ( Atmospheric Pressure No Load)
Heat Up Time (min) (+ 20℃ to ~150℃)	60	60	50	60
Cooling Down Time (min) (+ 20℃ to~60℃)	90	80	60	80
Pressure Range ( Kpa)	Atmospheric Pressure ~1.0 Atmospheric Pressure ~0.5
Pressure Accuracy ( Kpa)	±2 (Atmospheric Pressure ~40KPa); ±5%(40KPa~4KPa); ±0.1(4KPa~1KPa)
Pressure Release Time (min)	45(Atmospheric Pressure→1KPa)
Rapid Release of Pressure Function (optional)	Pressure Release Range: 75.2KPa → 18.8KPa; Pressure Release Time: 15sec
Climate Test Parameters for ECQ series:
Temp. Range (℃)	+10~+95
Temp.Constancy (℃)	±0.1~±0.8 (Atmospheric Pressure No Load)
Temp. Homogeneity (℃)	±0.1~±2.0 (Atmospheric Pressure No Load)
Humid. Range (%RH)	(10) 20-98 (Atmospheric Pressure No Load)
Humid. Constancy (%RH)	±1-±3 (Atmospheric Pressure No Load)
Test Space Dimension (mm)	600W×600D×700H	800W×700D×900H	1000W×1000D×1000H	1400W×1200D×1200H
External Dimension (mm)	1000W×1800D×1880H	1500W×2750D×1900H	1400W×3250D×2000H	1810W×3710D×2310H
Power	AC380V±10%, 50HZ, 3/N/PE
Cooling Methods	Water-Cooled

Options Accessories
• Iindependent sensors for specimen protection (NE60519-2.1993)

• 1 Entry port Φ50mm

• Nitrogen gas auxiliary device

• Spare parts package

• Video monitor system
Quality Control

Standard Version
• 1 Set testing electrode
• Electronic temperature and humidity sensors
