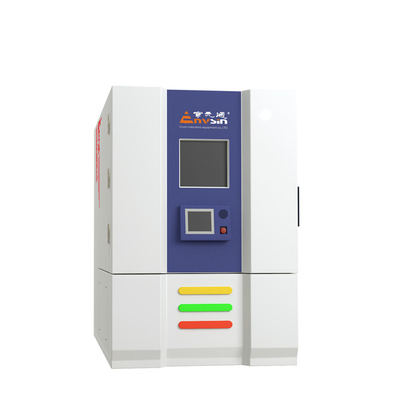

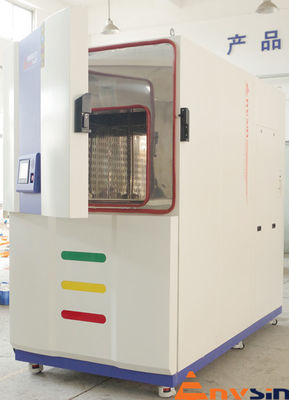

Air Cooled GB/T2423.22 50L Climatic Test Chamber , Thermal Shock Tester With 2 Zones
Air Cooled GB/T2423.22 50L Climatic Test Chamber , Thermal Shock Tester With 2 Zones Air Cooled GB/T2423.22 50L Climatic Test Chamber , Thermal Shock Tester With 2 Zones Air Cooled GB/T2423.22 50L Climatic Test Chamber , Thermal Shock Tester With 2 Zones Air Cooled GB/T2423.22 50L Climatic Test Chamber , Thermal Shock Tester With 2 Zones
Contact Now

Air Cooled GB/T2423.22 50L Climatic Test Chamber , Thermal Shock Tester With 2 Zones

Minimum Order Quantity : 1 Price : To be negotiated
Packaging Details : Strong wooden case suitable for all types of long distance shipment Delivery Time : 30-35 business days
Payment Terms : L/C, T/T, Western Union Supply Ability : 25 per month
Place of Origin: China Brand Name: Envsin
Certification: CE Model Number: ET450S2

Detail Information
Product Name: Temperature Chamber Test Space Volume(L): 50
Test Zones: 2 Hot Chamber Temp.Range(℃): +50/+200
Cold Chamber Temp.Range(℃): -80/+70 Temp. Constancy(℃): ±0.3-±1.0
Temp.Homogeneity(℃): ±0.5-±2.0 Recovery Time(min): <1(on Air Outlet)
Temp. Range(℃): -40/+150 Max. Specimens Weight (kg): 15
High Light:

GB/T2423.22 Climatic Test Chamber

,

50L Climatic Test Chamber

,

50L thermal shock tester

Product Description

Thermal Shock Temperature Chamber Thermal Testing Equipment With 2 Zones



The temperature chamber suitable for examining the ability of the whole machine, components, parts and other components to

withstand sharp changes in temperature. The temperature impact test can understand the impact of the test sample once orrepeatedly

due to temperature changes. The main parameters affecting the temperature change test are the high and low temperature values in the range of temperature change, the holding time of the sample at high and low temperature, and the number of cycles of the test, etc.



The temperature chamber is used for testing non-heat dissipation test samples and low heat dissipation test samples. For the test of heat dissipation test samples, the heat dissipation power should not exceed the temperature control cooling capacity of the refrigeration system

of the thermal shock temperature chamber, otherwise it will affect the temperature conversion speed and capacity of the test chamber. It

is recommended that the heat dissipation of the test samples be less than 300W.


Temperature Chamber Features:

• Fashionable design of modular construction.

• Long defrosting cycles:over 700h's running before defrosting.

• Customer friendly design:observation window with a reality visualization.(Patented)

• 7'' colour touch screen display and 32 bit control system; interface Ethernet/USB.

• 4 load power outlets for specimens with programmable control for protection.

• Design with independent sensors to prevent specimens from damages caused by dewing, overheat,breezeless and smog.

• Optional network video monitoring and data synchronization.



Specifications:
Model:Temperature Chamber ET450S2
Test Space Volume(L) 50
Test Zones 2
Hot Chamber Temp.Range(℃) +50/+200
Cold Chamber Temp.Range(℃) -80/+70
Temp. Constancy(℃) ±0.3-±1.0
Temp.Homogeneity(℃) ±0.5-±2.0
Recovery Time(min) <1(on Air Outlet)
Test Space Dimension(mm) 400W*400D*310H
External Dimension(mm) 900W*2300D*2160H
Temp. Range(℃) -40/+150
Max. Specimens Weight (kg) 15
Cooling Methods Air-Cooled
Power AC380V±10%,50HZ,3/N/PE

Compliant with International Standards:

GB/T2423.22

MIL STD 202F (Method 107G)

IEC 60 068-2-14

Test Na BS 2011

DIN 40046,Test Na

JESD22-A101-A
Temperature Chamber Options Accessories
• Independent sensors for protection (NE60519-2.1993)
• 1 Entry port Φ100mm
• Nitrogen gas auxiliary device
• Spare parts package
• E-management and cyber-software
• Video monitor system
• APP for mobility management

Standard Version

• 2 Stainless steel shelves















FAQ:

1. How can we guarantee quality?

  • 1 year warranty after sale


2.What can you buy from us?

  • Environmental test chamber,Stability Test Chamber,Thermal shock test chambers,Temperature & humidity Chamber,Gas Test chamber,etc.


3. Why should you buy from us not from other suppliers?

  • Employed designers with 15 years working experience in testing industry. Products were recognized by many top 500 companies.


4. What services can we provide?

  • R & D department: 5
  • Engineering department: 10
  • Quality department: 5
  • After-sales department: 12
  • Customer service department: 5
  • Finance department: 5
  • Sales department: 12
  • Product department: 75​
