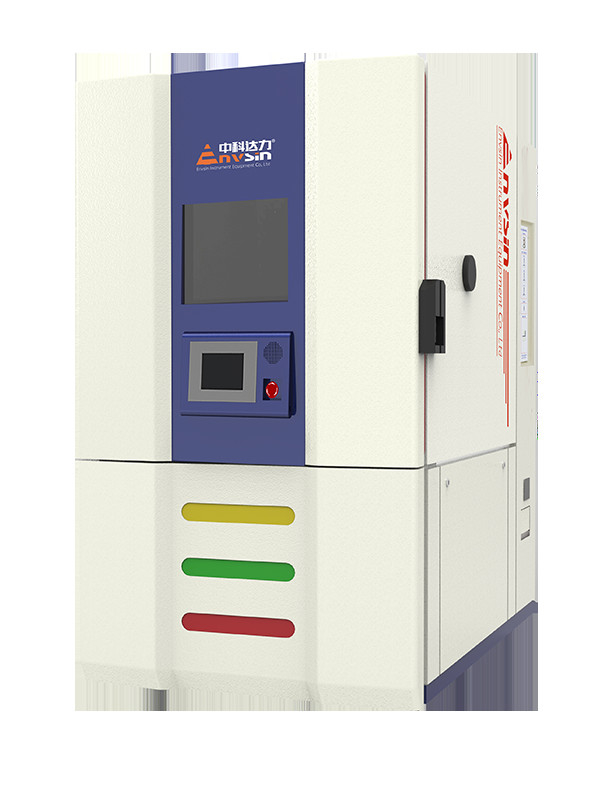

1200L ESS Climatic Test Chamber , Vibration Test Chamber For Vibration And Temperature

Brand Name:	Envsin
Model Number:	ETE
MOQ:	1 set
Price:	$12000 >=1 Set
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	20 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

ISO CE

Brand Name:

Envsin

Color:

White Blue

Power:

AC380V±10%, 50HZ, 3/N/PE

Certification:

ISO, CE

Warranty:

1 Year

Test Volume:

600L,3300L And Other Customized Volume

Supply Ability:

20 sets per month

Highlight:

ESS Climatic Test Chamber

1200L Climatic Test Chamber

ESS vibration test chamber

Product Description

Electronic Controllable Vibration and Temperature Combined Test Chamber

This test chamber is suitable for tests in the condition of high temperature ,low temperature and rapid temperature change (ESS) while the whole unit, parts and materials are vibrating to different degrees.

Our Service

• Be able to provide a complete testing solution (customization)

• Preferential supplier of Apple and Cisco in China

• Perfect systematic pre-sale and after-sale technical support

Products Features

• Homogeneous temperature linear changing rate capacity up to 40℃/ min.
• Dry air blowing system prevent specimen's surfaces from dewing in rapid temperature changing.
• Fashionable design of modular construction.
• 4 load power outlets for specimens with programmable control for protection.
• Special air circulation system inside ensures testing accuracy. (Patented)
• Intelligent and independent protection design for overload, overheat,power supply abnormity, overvoltage, component malfunction monitoring.
• Customer-friendly software functions: intelligent power-recovery restoration, auto-connect on memory and auto-reset restart.
• Design with independent sensors to prevent specimens
from damages caused by dewing, overheat, breezeless and smog.

Products Performance

ETE Temperature/Vibration Chambers	4060-5 4060-10 4060-15	7060-5 7060-10 7060-15	4120-5 4120-10 4120-15	7120-5 7120-10 7120-15	4220-5 4220-10 4220-15	7220-5 7220-10 7220-15
Test Space Volume (L)	600		1200		2200
Temp. Test Parameters:
Temp. Range (℃)	-40/+180	-70/+180	-40/+180	-70/+180	-40/+180	-70/+180
Temp. Constancy (℃)	±0.1~±0.8
Temp. Homogeneity (℃)	±0.5~±2.0
Temp. Change Rate (℃/min)	5, 10, 15, 20, 25, 30, 35, 40 (on Air Outlet)
Climate Test Parameters (ECE series):
Temp. Range (℃)	+10~+95

Options Accessories• Independent sensors for specimen protection (NE60519-2.1993)

• 1 Entry port Φ50mm

• Automatic water supply device

• Nitrogen gas auxiliary device

• Spare parts package

• E-management and cyber-software

• Video monitor system

• APP for mobility management

• Horizontal bottom plate with holes

Standard Version• 3 Power outlets for specimen

• Left and right entry ports Φ100mm

• 2 Silicon stoppers for entry ports

• Drier filter for compressing air

• 1 Water tank with 20L

• 1 Water filter

• Blind plate

• Vertical bottom plate perforated
