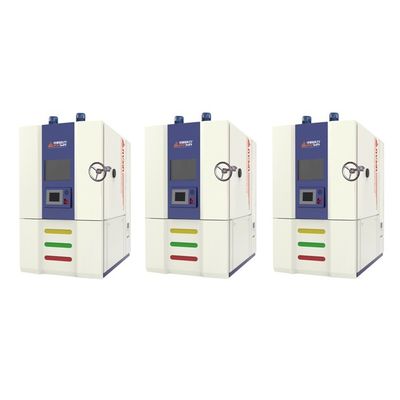

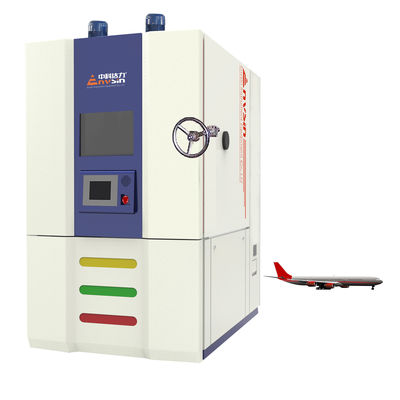

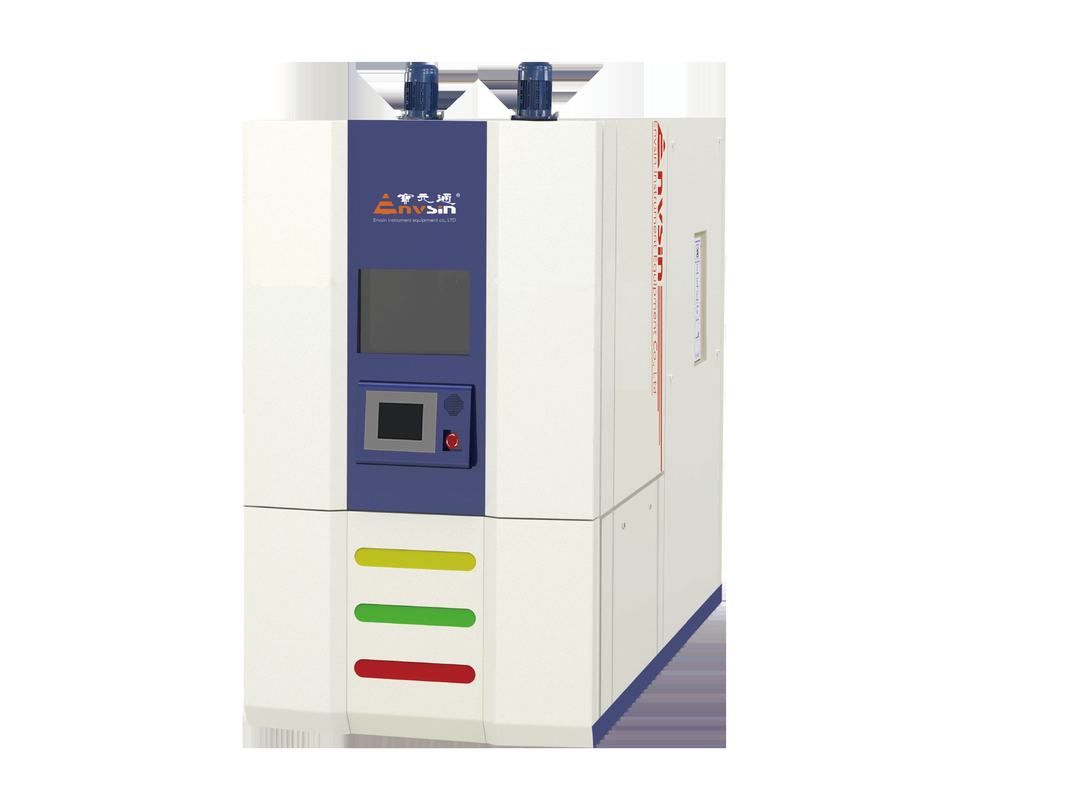

Reliable Results 1000L Environmental Altitude Simulation Chamber for Electronics Testing

Brand Name:	Envsin
Model Number:	ETQ
MOQ:	1 set
Price:	$5000 >=1 Set
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	30 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

ISO CE

Test Volume:

250L,500L,1000L,2000L And Other Customized Volume

Temperature Range:

-70~150℃

Heating And Cooling Rate:

1℃/min,3℃/min,5℃/min,5℃/min(Adjustable)

Air Pressure Range:

Normal Pressure~0.5kPa

Depressurization Time:

<=45min(normal Pressure~1kPa)

Pressure Precision:

±2kPa Target Value(normal Pressure~40kPa)

Supply Ability:

30 sets per month

Highlight:

150C High Altitude Test Chamber

1000L High Altitude Test Chamber

1000L high pressure test chamber

Product Description

Altitude Chambers With Temperature And Humidity Controls

This test chamber is suitable for simulating environmental tests of high temperature,low temperature,damp heat,low air pressure single climate factor or multiple climatic factors for the whole machine,components and materials.

Our Service

• Be able to provide a complete testing solution (customization)

• Patented and eye-catching industrial design

• Preferential vendor of Apple and Cisco in China

• Perfect systematic pre-sale and after-sale technical support

Features

• High performance water ring vacuum pump controls low pressure.

• Fashionable design of modular construction.
• 7'' colour touch screen display and 32 bit control system; interface Ethernet/USB.

• Optional APP mobility management.

• Built-in radiation shield ensures temperature homogeneity in low air pressure.

• Intelligent and independent protection design for overload, overheat,power supply abnormity, overvoltage, component malfunction monitoring.

• Customer-friendly software functions: intelligent power-recovery restoration,auto-connect on memory and auto-reset restart.

• Optional network video monitoring and data synchronization.

• Customer-friendly design: observation window in testing space with a reality visualization for real-time monitoring. (Patented)
• Automatic water supply with ultrapure filter devices(optional) ;water shortage reminder function.

• Intelligent and high-performance servo refrigerating control technology: energy saving and rapid heating/cooling rate.

• Unique operation mode: make testing area's temperature back to room temperature after tests are finished.

• Automatic reminder of equipment maintenance plans and software of recording malfunction.

• Optional remote-assist service function and teaching CDs.

Application

Product Paramenters

Temperature Chambers	ETQ7025	ETQ7050	ETQ7100	ETQ7200
Climate Chambers	ECQ7025	ECQ7050	ECQ7100	ECQ7200
Test Space Volume (L)	250	500	1000	2000
Temp. Test Parameters:
Temp. Range (℃)	-70~+150
Temp. Constancy (℃)	±0.1-±0.8 (Atmospheric Pressure No Load)
Temp. Homogeneity(℃)	±0.5-±2.0 (Atmospheric Pressure No Load)
Temp. Accuracy (℃)	±2.0 (Atmospheric Pressure No Load)
Heat Up Time (min) (+ 20℃ to ~150℃)	60	60	50	60
Cooling Down Time (min) (+ 20℃ to~60℃)	90	80	60	80
Pressure Range (Kpa)	Atmospheric Pressure ~1.0 Atmospheric Pressure ~0.5
Pressure Accuracy (Kpa)	±2 (Atmospheric Pressure ~40KPa); ±5%(40KPa~4KPa); ±0.1(4KPa~1KPa)
Pressure Release Time (min)	45(Atmospheric Pressure→1KPa)
Rapid Release of Pressure Function (optional)	Pressure Release Range: 75.2KPa → 18.8KPa; Pressure Release Time: 15sec
Climate Test Parameters for ECQ series:
Temp. Range (℃)	+10~+95
Temp.Constancy (℃)	±0.1~±0.8 (Atmospheric Pressure No Load)
Temp. Homogeneity (℃)	±0.1~±2.0 (Atmospheric Pressure No Load)
Humid. Range (%RH)	(10) 20-98 (Atmospheric Pressure No Load)
Humid. Constancy (%RH)	±1-±3 (Atmospheric Pressure No Load)
Test Space Dimension (mm)	600W×600D×700H	800W×700D×900H	1000W×1000D×1000H	1400W×1200D×1200H
External Dimension (mm)	1000W×1800D×1880H	1500W×2750D×1900H	1400W×3250D×2000H	1810W×3710D×2310H
Power	AC380V±10%, 50HZ, 3/N/PE
Cooling Methods	Water-Cooled

Options Accessories
• Iindependent sensors for specimen protection (NE60519-2.1993)

• 1 Entry port Φ50mm

• Nitrogen gas auxiliary device

• Spare parts package

• E-management and cyber-software

• Video monitor system

• APP for mobility management

• Rapid release of pressure device

• Rapid recovered pressure device
Quality Control

Standard Version
• 1 Set testing electrode
• Electronic temperature and humidity sensors
